Fiber Optic Connection

A: SC (Subscriber Connector) uses a 2.5 mm zirconia ferrule with a push-pull latch, while LC (Lucent Connector) uses a 1.25 mm ferrule — half the physical size. LC offers twice the port density of SC in patch panels and is the standard interface for SFP, SFP+, and SFP28 optical transceivers in data centers. SC remains more common in FTTH/PON subscriber-side connections due to its lower tooling cost and wider installer familiarity. Both are available in UPC and APC variants at comparable optical performance levels.

A: No — this should never be done. APC connectors have an 8° angled ferrule end-face that causes severe physical misalignment when mated with a flat UPC ferrule. The result is typically 2–4 dB of excess insertion loss and potential surface damage to both ferrules. Always match UPC to UPC (blue) and APC to APC (green). If your network uses mixed connector types, use hybrid APC-UPC adapters designed for this purpose, but be aware that return loss performance will be that of the weaker polish type.

A: A fast connector (also called a field-installable or tool-free connector) uses a pre-polished factory ferrule with a mechanical fiber clamping mechanism — no polishing equipment or epoxy is required in the field. They are designed for FTTH drop cable termination where installation speed is critical and fusion splicing is not practical. Our SC/APC fast connectors deliver ≤0.3 dB average insertion loss and ≥55 dB return loss. They are appropriate for GPON drop cable connections at subscriber premises but are generally not recommended for permanent, high-reliability ODF terminations where fusion spliced pigtails are preferred.

A: A fiber patch cord has connectors on both ends and is used to cross-connect two already-terminated ports — for example, connecting a transceiver module to a patch panel. A fiber optic pigtail is terminated on one end only; the other end is bare fiber designed to be fusion-spliced into a trunk cable or splice tray. Pigtails are the standard solution for terminating incoming cables at distribution frames and splice closures, while patch cords are used for active equipment connections and cross-connects.

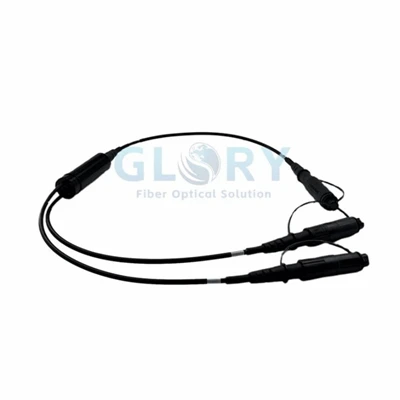

A: Yes. Our outdoor armored assemblies are designed for direct burial, aerial, and harsh environment installations including 5G FTTA base station connections. They feature interlocking steel or stainless steel armor, HDPE outer jackets, and IP67-rated ODC or ODVA connector housings. These assemblies meet the mechanical and environmental requirements of outdoor plant deployment: UV resistance, temperature cycling, water ingress protection, and rodent deterrence. Custom lengths and connector combinations are available.

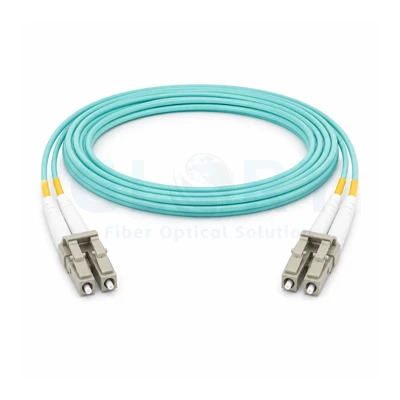

A: LC/UPC and SC/UPC connectors are the most common interface for multimode fiber in enterprise and data center environments. For modern data center structured cabling, OM4 (50/125 µm, ISO 11801 Class OM4) supports 10G to 100 m, 25G to 70 m, and 40G/100G over MTP/MPO parallel optic links to 150 m. OM5 (wideband multimode) extends support to SWDM4 applications. OM3 is appropriate for 10G links up to 300 m in lower-density environments. We do not recommend OM1 or OM2 for new installations due to their limited bandwidth for current network speeds.

A: Standard stock items — patch cords, pigtails, adapters, and fast connectors — have a minimum order quantity of 50 units. Free samples are available for qualified procurement engineers, network planners, and project managers for evaluation purposes. Samples are shipped by DHL or FedEx with full test data. For custom OEM assemblies, sample production is available with MOQs discussed based on complexity. Contact our sales team via email or WhatsApp to request samples with your project details.
