Fiber Optic Cable
Manufacturer & OEM Supplier
Factory-direct FTTH Drop Cable, Armored Cable,Indoor Tight-Buffer & Outdoor Loose-Tube. IP68-certified. CE, RoHS, ISO 9001. OEM sample in 7 days. 80+ countries served.
FTTH drop cables, indoor tight-buffer cables, outdoor loose-tube cables, and armored fiber optic cables — engineered for telecom operators, data centers, and enterprise networks worldwide.
-
![Ultra-slim Mini Bundled Indoor Fiber Optic Cable]()
Ultra-slim Mini Bundled Indoor Fiber Optic CableAt just 3.0 mm in outer diameter — roughly the thickness of a standard pencil — this mini bundled cable is engineered for environments where conventional fiber cables simply won't fit. It threads -
![Mini Bundled Indoor Fiber Optic Cable]()
Mini Bundled Indoor Fiber Optic CableThe Glory Optical 9.0mm mini bundled indoor fiber optic cable delivers medium- to high-density fiber solutions in a compact, flexible form factor. Supporting 48–144 fibers within a single 9 mm -
![Sub-unit Branch Distribution Fiber Optic Cable]()
Sub-unit Branch Distribution Fiber Optic CableUnlike bundle cables where all fibers share a single undivided jacket, this distribution cable houses each fiber group inside its own factory-assembled sub-unit — a miniature tight-buffered cable -
![Indoor Fiber Optic Bundle Cable]()
Indoor Fiber Optic Bundle CableGlory Optical's GJFJV indoor fiber optic bundle cable provides the ideal balance of fiber capacity and installation flexibility for horizontal backbone cabling inside offices, classrooms, hospitals, -
![High-density Sub-unit Branch Multi Core Fiber Optic Cable]()
High-density Sub-unit Branch Multi Core Fiber Optic CableThe GL-MCFC series adopts a discrete sub-unit architecture. Each sub-unit contains 12 color-coded fibers per TIA-598/IEC 60304, enabling straightforward floor-level branching without disturbing the -
![Tight-Buffered Fiber Optic Cable]()
Tight-Buffered Fiber Optic CableThe tight-buffered fiber optic cable delivers a direct-protection structure — a high-modulus thermoplastic buffer layer applied over each bare fiber — enabling straight-through termination with no -
![Fiber Optic Cable Internet]()
Fiber Optic Cable InternetModel: GYFJH RRU Fiber Optic Cable InternetThe cable used in the radio frequency stretching unit is composed of 2.0single-core cable as sub-cable, which is twisted with the possible filling rope and -

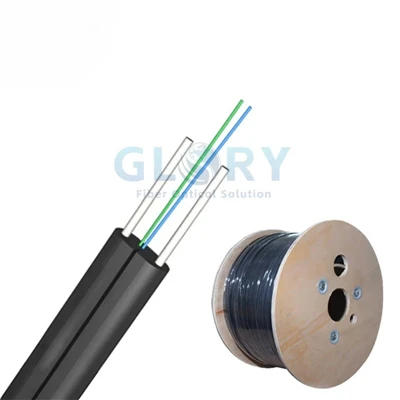

![Indoor Drop Fiber Cable]()
Indoor Drop Fiber CableModel: GJXFH / GJXH Flat Drop CableIndoor drop fiber cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. and it's ideal for indoor -
![Central Tube Cable]()
Central Tube CableModel:GJYFXJH Central tube CableTight buffer fiber and water blocking aramid yarns are housed in loose tube, water blocking aramid yarns and glass fiber yarn as strength member, and LSZH jacket. -
![Fiber Optic Outdoor Cable]()
Fiber Optic Outdoor CableModel:GYXTS Fiber Optic Outdoor CableGYXTS cable structure is to insert a fiber loose tube, made of high modulusplastic it external wire winding layers of double-sided plastic corrugated steel belt -
![Fiber Optic Cable Outdoor]()
Fiber Optic Cable OutdoorModel:GYXTW Fiber Optic Cable OutdoorGYXTW is an outdoor use optical fiber cable suitable foe duct and aerial applications. We supply GYXTW from 1 fiber cores to 24 fiber cores. -
![ADSS Outdoor Cable]()
ADSS Outdoor CableModel:ADSS Outdoor CableADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics. Filled with a water-blocking filling compound, the tube is stranded around FRP as a
What Is Fiber Optic Cable?
A fiber optic cable transmits data as pulses of light through one or more glass or plastic fiber strands. Each strand — thinner than a human hair — guides light via total internal reflection, delivering high-bandwidth signals over long distances with minimal signal loss (attenuation).
Our fiber optic cables meet ITU-T G.652D (single-mode), IEC 60793-2-50 (multimode), and Telcordia GR-20 (outdoor) standards. We supply telecom operators, ISPs, data center integrators, contractors, and OEM distributors across 60+ countries.
Fiber Optic Cable Types
From last-mile FTTH drop cables to high-fiber-count outdoor trunk cables — select the right cable for your network design.
Single-Mode vs. Multimode Fiber Optic Cable
Choosing the wrong fiber type is the most common and costly specification error. Use this comparison to select the correct cable for your distance, bandwidth, and budget requirements.
| Parameter | Single-Mode (SMF) — OS1 / OS2 | Multimode (MMF) — OM1 / OM3 / OM4 / OM5 |
|---|---|---|
| Core Diameter | 8–9 µm (very narrow) | 50 µm (OM2–OM5) / 62.5 µm (OM1) |
| Light Source | Laser diode (1310 nm / 1550 nm) | LED or VCSEL (850 nm / 1300 nm) |
| Transmission Distance | Up to 100 km+ (OS2 outdoor) | Up to 550 m (OM3) / 400 m (OM4) @ 10G |
| Bandwidth | Theoretically unlimited | Up to 28,000 MHz·km (OM5) |
| Attenuation | 0.2–0.4 dB/km (very low) | 2.5–3.5 dB/km (higher) |
| Jacket Color | Yellow (standard) | Orange (OM1/OM2) · Aqua (OM3/OM4) · Lime (OM5) |
| Typical Applications | Telecom backbone, FTTH, long campus, metro | Data center (≤300 m), LANs, building backbone |
| Relative Cable Cost | Lower cable cost | Similar cable cost; transceivers cheaper for short runs |
Technical Specifications
All Glory Optical fiber optic cables are manufactured to meet or exceed the following international standards. Full test reports are provided with every shipment.
| Parameter | Specification |
|---|---|
| Fiber Standard | ITU-T G.652D (SM) · IEC 60793-2-50 (MM) |
| Attenuation (SM) | ≤ 0.35 dB/km @ 1310 nm · ≤ 0.20 dB/km @ 1550 nm |
| Attenuation (OM4) | ≤ 3.0 dB/km @ 850 nm · ≤ 1.0 dB/km @ 1300 nm |
| Fiber Counts | 1, 2, 4, 6, 8, 12, 24, 48, 72, 96, 144, 288 |
| Operating Temp. | –40°C to +70°C (standard) · –60°C to +85°C (specialty) |
| Bend Radius (min) | 10× cable OD (installation) · 20× (long term) |
| Tensile Strength | 600–2700 N (by cable type) |
| Crush Resistance | 300–3000 N/100 mm (armored) |
| Reel Length | 500 m, 1000 m, 2000 m, custom |
| Certifications | ISO 9001, CE, RoHS, UL (on request) |
Cable Construction Layers
Understanding how each layer contributes to performance helps you specify the right cable for environmental demands.
① Glass Core (8–62.5 µm)
Ultra-pure silica glass transmits light via total internal reflection. Core diameter determines single-mode or multimode performance. Corning or Prysmian fiber glass is available on request.
② Cladding (125 µm standard)
Lower refractive-index glass layer surrounding the core. Industry-standardized at 125 µm across all fiber types, ensuring universal connector and splice compatibility.
③ Acrylate Coating (250 µm)
Dual-layer UV-cured acrylate protects fiber from moisture, abrasion, and micro-bending. Color-coded for fiber identification within multi-fiber cables.
④ Strength Members (Aramid / FRP / Steel)
Aramid yarn (Kevlar®), fiberglass rod (FRP), or steel wire prevents core stretching under tensile load during installation and service life.
Jacket Materials & When to Use Each
🔵 PVC
Low cost, flexible, flame-retardant. Suitable for general indoor use. Produces toxic smoke — not recommended for high-occupancy or plenum spaces. Most common for patch cables and distribution.
🟢 LSZH
Low Smoke Zero Halogen — releases minimal toxic gas in fire. Mandatory in tunnels, rail transit, marine, and high-density buildings (EU CPR regulation). Glory standard for indoor cables.
⚫ HDPE
High-Density Polyethylene — black UV-stabilized jacket for outdoor cables. Excellent moisture and chemical resistance. Used in direct burial, conduit, and aerial applications.
🟡 MDPE / PE
Medium-Density PE for aerial self-supporting cables and duct cables in moderate environments. Offers good crush and abrasion resistance at lower cost than full HDPE constructions.
Fiber Optic Cable Applications by Sector
FTTH / FTTx Networks
G.657A2 bend-insensitive drop cables for last-mile subscriber connections. Supports PON (GPON, XGS-PON) architectures. Flat and round self-supporting options for aerial and indoor routing.
Data Centers
OM4/OM5 multimode distribution cables for inter-rack and top-of-rack connections. Pre-terminated MTP/MPO assemblies available for rapid deployment in high-density server environments.
5G Fronthaul & Backhaul
OS2 single-mode cables deployed as densified fronthaul between 5G base stations and central units. Low-latency, high-bandwidth connections supporting sub-6 GHz and mmWave architectures.
Smart City Infrastructure
Underground conduit and direct-burial armored cables for traffic management, CCTV surveillance, smart lighting networks, and municipal broadband — deployed across Asia, Middle East, and Africa.
Utility & Power Grid
All-Dielectric Self-Supporting (ADSS) and optical fiber composite overhead ground wire (OPGW) for power grid communication. Non-conductive designs eliminate induction risk near high-voltage lines.
Hospitals & Campuses
LSZH indoor distribution cables for healthcare facilities, universities, and enterprise campuses where fire safety regulations require low-smoke, halogen-free materials in occupied areas.
Why Choose Glory Optical?
B2B buyers evaluating Chinese fiber optic cable suppliers consistently cite quality consistency, lead time reliability, and after-sales support as top differentiators. Here is how Glory Optical compares.
Competitor Comparison
| Feature | Glory Optical | Typical Alibaba Supplier | Large Brand (YOFC / FiberHome) |
|---|---|---|---|
| MOQ | 1 reel (low MOQ) | ⚠️ Varies (often 100 reels+) | ❌ High MOQ / contract required |
| OEM / White Label | Full OEM + custom packaging | ⚠️ Limited / print-only | ❌ Rarely available |
| Test Reports | Full OTDR + attenuation report per reel | ⚠️ Often only COA | ✅ Available |
| Lead Time | 7–15 days (standard stock) | ⚠️ 15–45 days | ❌ 30–90 days |
| Certifications | ISO, CE, RoHS, ITU-T G.652D | ⚠️ Variable quality | ✅ Full suite |
| After-Sales Support | Dedicated account manager | ⚠️ Inconsistent | ⚠️ Formal process only |
Our OEM & Custom Cable Process
From inquiry to shipment in as few as 7 days for standard products. Custom OEM orders — including private-label reels, custom lengths, and non-standard jacket colors — typically complete in 15–25 days.
Frequently Asked Questions
Everything you need to know before selecting or ordering fiber boxes from Glory Optical.
Q: What is the difference between single-mode and multimode fiber optic cable?
A: Single-mode fiber (SMF) has a tiny core (~9 µm) that carries one light mode, allowing signals to travel over 100 km with very low attenuation (≤0.2 dB/km). It uses laser light sources at 1310 nm or 1550 nm. Multimode fiber (MMF) has a larger core (50–62.5 µm), supports multiple light paths, and is designed for shorter distances (up to 550 m). The two types cannot be mixed in the same link — doing so causes severe signal loss and link failure.
Q: Which fiber optic cable is best for outdoor installation?
A: OS2 single-mode loose-tube cable with a black HDPE jacket is the standard choice for outdoor deployments. For direct burial, specify an armored version (corrugated steel tape or steel wire). For aerial runs, self-supporting ADSS or figure-8 designs eliminate the need for a separate messenger wire. All outdoor Glory Optical cables comply with Telcordia GR-20 for 30-year outdoor service life.
Q: What does LSZH mean for fiber optic cable?
A: LSZH stands for Low Smoke Zero Halogen. It describes the outer jacket material, which produces minimal toxic smoke and no halogen gases when exposed to fire — unlike standard PVC jackets. LSZH is required by building codes in Europe (CPR regulation), rail/metro networks, hospitals, ships, and densely occupied spaces. It does not affect the cable's optical performance.
Q: What is FTTH cable and how does it differ from regular fiber cable?
A: FTTH (Fiber to the Home) drop cable is a specialized, small-diameter cable that connects the fiber distribution point to an individual subscriber's premises. It typically uses G.657A2 bend-insensitive single-mode fiber, a flat or round jacket, and an integrated steel or FRP messenger wire for self-supporting aerial spans. Regular trunk or distribution cables carry higher fiber counts (12–288 fibers) from the central office to distribution points.
Q: Can I get custom OEM fiber optic cable with my brand label?
A: Yes. Glory Optical offers full OEM and ODM services including custom reel printing with your brand name, logo, and product codes. We can also produce custom jacket colors, non-standard lengths, and private-label packaging. Minimum OEM quantities start from 10 reels. Contact our sales team for a custom quotation — most OEM orders ship within 15–25 business days.
Q: What certifications should I look for when sourcing fiber optic cable from China?
A: At minimum, look for ISO 9001:2015 (factory quality system), ITU-T G.652D or G.657A compliance (optical performance), and IEC 60794 (cable mechanical/environmental performance). For export to the EU, CE marking and RoHS/REACH compliance are required. For North American projects, Telcordia GR-20 (outdoor) and GR-409 (aerial) may be specified. Always request per-reel OTDR test reports, not just a generic Certificate of Analysis.
Q: What is the minimum order quantity (MOQ) for fiber optic cable from Glory Optical?
A: Standard stock cables are available from 1 reel (typically 500 m or 1000 m). Custom OEM orders typically start at 10 reels. For large-volume project orders (500+ km), contact us for volume pricing and dedicated production scheduling. Free samples are available for project evaluation with no minimum order.
As one of the leading fiber optic cable manufacturers and suppliers in China, we also support custom service and OEM service. Welcome to buy bulk high quality fiber optic cable in stock here from our factory. For free sample, contact us now.
