Built for High-Density LC APC Patching
LC adapters are small but critical passive components. They create the mechanical interface that keeps two LC ferrules accurately aligned, so optical power can pass through the connection with minimal loss. This high-low duplex version is suitable for compact fiber management layouts where clear port identification and dense LC APC routing are required.
Ceramic Sleeve Interface
The ceramic alignment sleeve supports accurate ferrule mating and helps reduce optical variation between repeated connector insertions.
Without-Flange Mounting
The flange-free housing fits space-limited fiber panels, compact ODF trays and equipment ports where a clean snap-in profile is preferred.
Green APC Housing
The green body follows common APC color identification practice, helping technicians avoid UPC/APC mismatch during field installation.
Technical Specifications
| Product Name | LC APC DX High-Low Adapter |
|---|---|
| Adapter Type | LC fiber optic adapter / LC coupler |
| Body Style | Duplex, high-low structure |
| Connector Polish | APC |
| Fiber Mode | Singlemode |
| Insertion Loss | ≤0.2 dB |
| Alternating / Interchange Loss | ≤0.2 dB |
| Repeatability | ≤0.2 dB |
| Durability | >1000 mating cycles; optical change after 1000 insertions less than 0.2 dB |
| Mounting Type | Without flange |
| Alignment Sleeve | Ceramic |
| Housing Color | Green |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
Why Choose This Adapter
In LC APC singlemode systems, adapter quality directly affects connector alignment, return performance consistency and long-term port reliability. Glory Optics positions this product for installers and equipment builders who need compact LC duplex connectivity with predictable optical behavior.
- Supports LC APC duplex connections in singlemode transmission paths.
- Low insertion loss design for FTTH, CATV and telecom patching environments.
- Ceramic sleeve helps maintain ferrule centering during repeated mating.
- High-low duplex layout supports port arrangement in compact panels.
- Green APC housing improves field identification and reduces wrong-polish connections.
- Each adapter can be checked before shipment for optical and visual consistency.

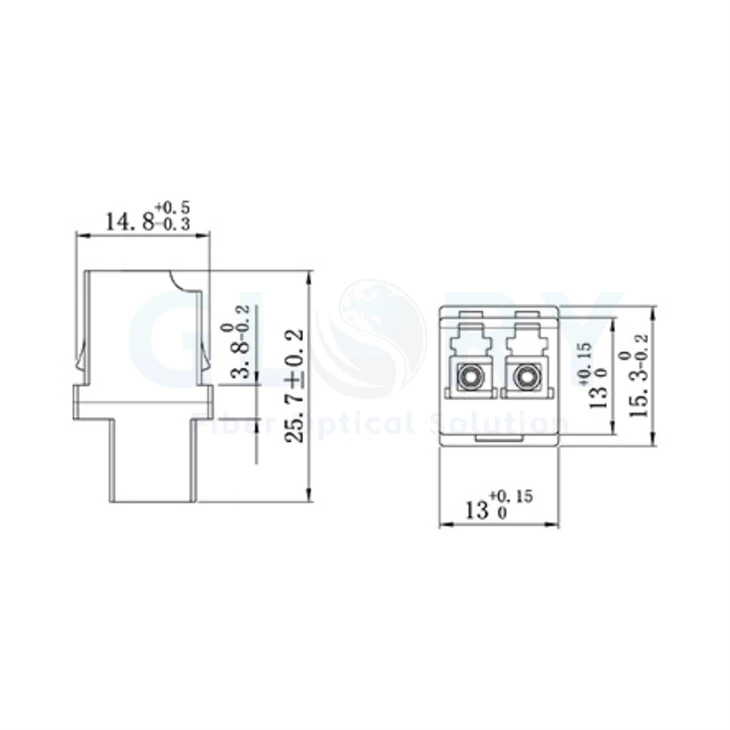

Product Images
Applications
This LC APC duplex adapter can be used wherever LC APC singlemode patch cords, pigtails or equipment ports need a stable physical interface.
Quality Control Focus
A fiber optic adapter should not be selected only by housing color or port count. For stable field performance, the key checkpoints are sleeve alignment, connector fit, low loss, clean end-face handling and consistent mechanical retention.
- Visual inspection for housing and port consistency
- Connector fit check before packing
- Low-loss optical performance target
- RoHS-compliant material selection
- Bulk packing or project-based packaging available on request
Ordering Information
To quote the correct LC adapter for your project, please confirm the required polish, mode, body style, mounting type and packing quantity.
| Selection Item | Standard Configuration for This Page | Notes for RFQ |
|---|---|---|
| Connector Type | LC | Confirm LC duplex or other LC formats if needed. |
| Polish | APC | APC is normally identified by a green housing. |
| Fiber Mode | Singlemode | Specify SM, MM, OM3 or OM4 if your project uses a different network type. |
| Body Style | Duplex high-low | Useful for compact panels and high-density LC port layouts. |
| Mounting | Without flange | Confirm panel cutout and mounting direction before mass order. |
| Quantity | Project-based | Share annual demand or installation batch quantity for better pricing. |
