What This Adapter Solves
Glory Optics LC MM DX High-Low Adapter is a beige duplex LC fiber coupler for multimode PC connections in LAN cabling, equipment rooms, patch panels and device interconnection points. The compact high-low structure helps installers route two LC channels in a tight panel space while maintaining stable ferrule alignment through a ceramic sleeve.
In many multimode networks, the adapter is treated as a simple accessory. In practice, it controls the mechanical mating point between two LC connectors. A loose fit, poor sleeve centering or confusing port arrangement can create unnecessary troubleshooting work in equipment rooms and patching fields.
Key Product Advantages
To make the page less generic, Glory can position this model around actual installation problems: port density, multimode identification, patchcord management and repeated maintenance cycles.
High-Low Duplex Layout
Offset duplex ports support compact LC arrangements where two fibers must be separated clearly without consuming additional panel width.
Multimode Color Recognition
The beige housing helps field teams identify standard multimode adapter positions and avoid mixing them with blue UPC or green APC ports.
The sleeve guides both ferrules into a stable optical interface, helping reduce connection variation during daily patching.
The without-flange structure is convenient for clean snap-in panel designs and compact equipment layouts.
Technical Specifications
| Product Name | LC MM DX High-Low Adapter |
|---|---|
| Adapter Type | LC fiber optic adapter / LC duplex coupler |
| Body Style | Duplex, high-low structure |
| Connector Polish Type | PC |
| Fiber Mode | Multimode |
| Insertion Loss | ≤0.2 dB |
| Alternating / Interchange Loss | ≤0.2 dB |
| Repeatability | ≤0.2 dB |
| Durability | >1000 mating cycles; optical change after 1000 insertions less than 0.2 dB |
| Mounting Type | Without flange |
| Alignment Sleeve Material | Ceramic |
| Housing Color | Beige |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
Application Scenarios
Instead of describing the adapter only as a "coupler," the following application blocks show how it can be used in real multimode infrastructure projects.
Enterprise Equipment Rooms
Use in multimode LC patch panels for switch-to-panel, panel-to-panel and equipment-to-patchcord connections in office buildings, campuses and server rooms.
High-Density Fiber Panels
The high-low duplex layout helps panel builders arrange paired LC ports with visible separation, making port tracing and patchcord replacement easier.
Multimode Device Links
Suitable for short-reach multimode links between active devices, optical distribution frames, media converters and test environments.
Patchcord Replacement Points
Adapters installed at frequent access points should maintain connector fit after repeated insertions. This model supports more than 1000 mating cycles.
Building Video Transmission
Can be used in multimode cabling paths for internal video, control or monitoring systems where LC duplex connections are specified.
Local WAN Access Rooms
For localized multimode interconnection points, the beige adapter helps separate MM patching fields from singlemode APC or UPC networks.
Typical Cabling Position
This adapter normally sits at a passive cross-connect point. It does not convert fiber mode or polish type; it simply aligns two LC multimode PC connectors.

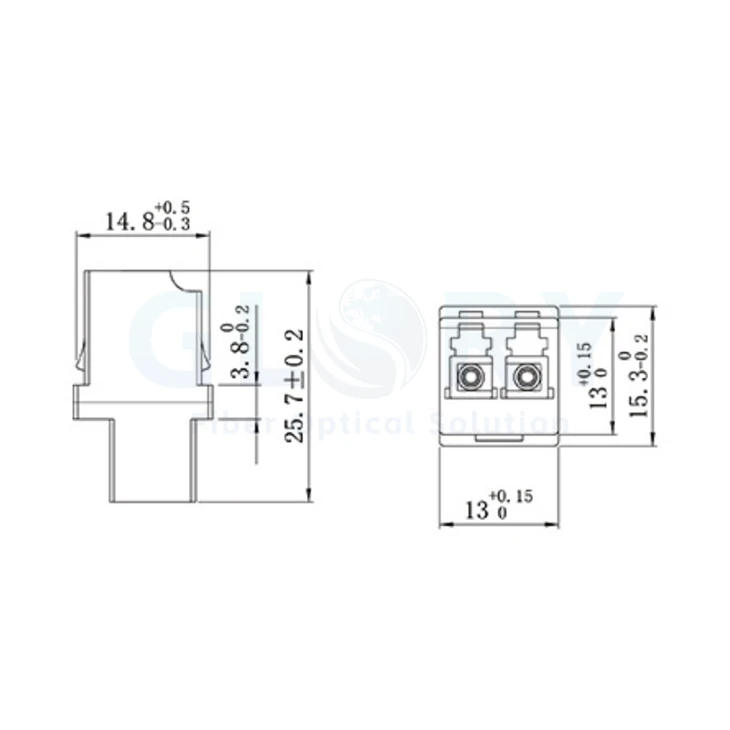

Product Images
Installation Notes
For multimode cabling, the adapter is only one part of the link. Correct installation also depends on patchcord type, panel cutout, connector cleanliness and route management.
- Use with LC multimode PC patch cords or pigtails.
- Confirm that the panel cutout matches the high-low duplex body.
- Keep dust caps on unused ports until patching begins.
- Do not mix multimode adapters with APC singlemode patching fields.
- Clean connector end-faces before mating to reduce intermittent loss.
- Avoid tight patchcord bends immediately behind the adapter port.
Ordering Information
| Option | This Product Page | Customization / Project Notes |
|---|---|---|
| Connector Interface | LC | Other adapter families such as SC, FC, ST, MU and MPO can be supplied separately. |
| Port Structure | Duplex high-low | Confirm whether your patch panel requires high-low or high-high port arrangement. |
| Fiber Mode | Multimode | For OM3/OM4/OM5 projects, specify the required color and part number clearly. |
| Polish Type | PC | For singlemode networks, UPC or APC versions should be selected instead. |
| Mounting | Without flange | Share panel drawing or cutout size if this adapter is used in a new enclosure design. |
| Quality Requirement | Low-loss and repeatable mating performance | Optical performance, appearance inspection and packing can be arranged according to order requirements. |
FAQ
Q: Is this adapter for singlemode or multimode fiber?
A: This model is for multimode fiber connections. It uses a beige housing and PC polish type.
Q: Can it be used with LC APC connectors?
A: No. This page is for LC multimode PC connections. APC connectors should be used with APC adapters to avoid physical mismatch and poor optical performance.
Q: What is the advantage of the high-low duplex design?
A: The high-low arrangement offsets the two LC ports. This can help with compact panel layouts, clearer port separation and easier cable handling in dense patching fields.
Q: Where is this adapter normally installed?
A: Typical locations include LAN patch panels, ODFs, equipment room cross-connects, premise cabling systems, video transmission links and device interconnection points.
