LC OM3 DX High-Low Adapter for High-Density Multimode Cabling
Glory Optics LC OM3 DX High-Low Adapter is built for aqua OM3 multimode patching fields where LC duplex ports must stay compact, easy to identify, and mechanically stable. It is suitable for equipment rooms, campus LANs, data center short-reach links, and fiber panels that need clean OM3 port organization without adding extra panel space.
Positioned for OM3 Networks, Not Just "Another LC Adapter"
Many LC adapter pages look almost identical because the basic parameters are similar. This page separates the OM3 version by focusing on where it is actually used: aqua multimode distribution fields, short-reach optical links, and high-density duplex patching.
Why OM3 Identification Matters
In mixed fiber panels, port color is a practical maintenance tool. The aqua housing helps technicians distinguish OM3 multimode links from singlemode UPC, singlemode APC, and standard beige multimode adapter positions. This reduces wrong patching during moves, adds, changes, and emergency replacement work.
Product Characteristics for Real Installations
The content below avoids repeating generic coupler text. It explains how this LC OM3 high-low adapter supports actual cabling work in racks, panels, and equipment rooms.
Technical Specifications
| Product Name | LC OM3 DX High-Low Adapter |
|---|---|
| Adapter Type | LC fiber optic adapter / LC duplex coupler |
| Body Style | Duplex high-low structure |
| Connector Polish Type | PC |
| Fiber Mode | Multimode, OM3 identification |
| Insertion Loss | ≤0.2 dB |
| Alternating / Interchange Loss | ≤0.2 dB |
| Repeatability | ≤0.2 dB |
| Durability | >1000 mating cycles; optical change after 1000 insertions less than 0.2 dB |
| Mounting Type | Without flange |
| Alignment Sleeve Material | Ceramic |
| Housing Color | Aqua |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
Where This OM3 Adapter Fits in a Network
This adapter is a passive alignment point. It does not change fiber type or upgrade link bandwidth by itself; it provides the LC-to-LC mechanical interface inside an OM3 multimode connection path.
Application-Focused Use Cases
Data Center Short-Reach Links
For OM3 multimode patching areas supporting SR-type optical links, this adapter helps keep duplex LC interfaces organized and serviceable.
Enterprise LAN Rooms
Use it in building network rooms where OM3 backbone or horizontal fiber paths are patched to switches and distribution panels.
Campus and Building Backbones
Aqua LC ports help distinguish OM3 multimode pathways across racks, floors, and intermediate distribution frames.
High-Density Patch Panels
The high-low duplex structure is useful when panel real estate is limited but paired LC channels still need clear routing.
Test and Lab Environments
Suitable for multimode equipment benches where LC patching is changed frequently and stable repeatability matters.
Video and Control Systems
Can be used in internal multimode optical paths for building video, monitoring, or control signal transmission where LC OM3 cabling is specified.

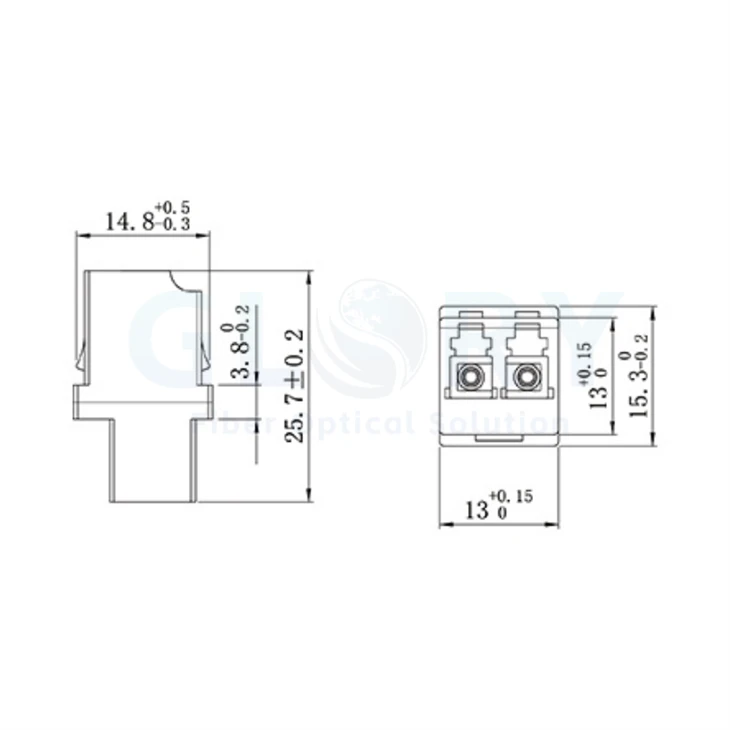

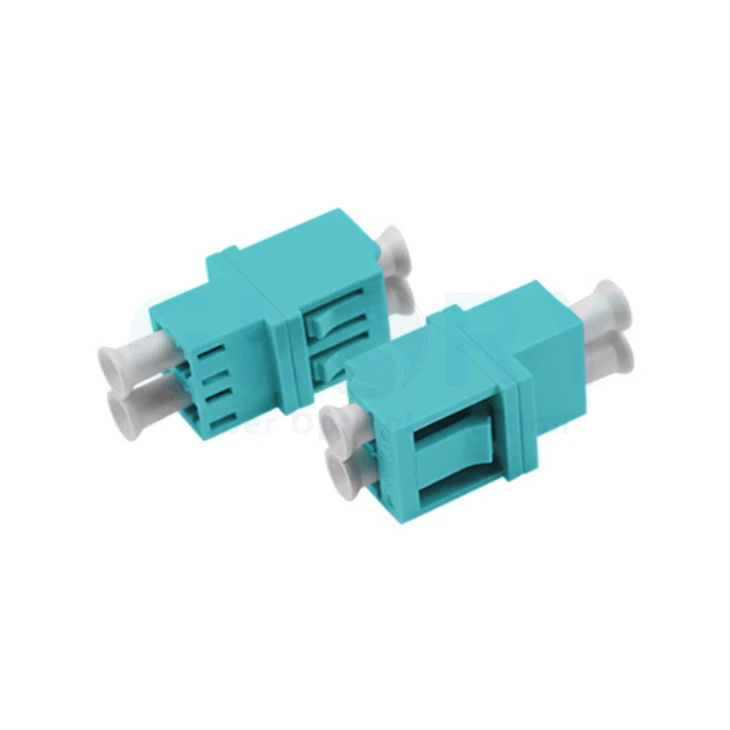

Product Images
Selection and Installation Notes
For OM3 projects, adapter selection should follow the same logic as cable and patchcord selection. The connector type, polish, port color, panel cutout and cable route should all match the final cabling plan.
- Use with LC OM3 multimode PC patch cords or pigtails.
- Keep OM3 aqua ports separated from singlemode UPC and APC fields.
- Confirm panel cutout before choosing high-low or high-high duplex style.
- Clean LC connector end-faces before every final mating operation.
- Leave enough rear clearance so patchcord boots are not sharply bent.
- Keep dust caps on unused ports during storage, assembly and transport.
Common Mistakes to Avoid
Small adapter mistakes often appear later as intermittent loss, confusing port maps, or unnecessary troubleshooting time. This section gives the product page more practical value and lowers similarity with standard supplier descriptions.
Before Ordering or Installing
- Do not order a beige MM adapter if the project standard requires aqua OM3 identification.
- Do not mix APC connectors with PC multimode adapter positions.
- Do not assume all LC duplex adapter footprints are the same.
- Do not leave unused LC ports open in dusty rack environments.
- Do not route patchcords so tightly that the boot pushes against the adapter body.
Ordering Information
Share your required adapter layout, color standard, panel drawing and quantity so Glory Optics can confirm the right LC adapter version for your project.
| RFQ Item | Standard Configuration on This Page | Why It Matters |
|---|---|---|
| Connector Interface | LC | Ensures compatibility with LC patch cords, pigtails and LC panel ports. |
| Fiber Category | OM3 multimode | Important for color identification and multimode cabling management. |
| Housing Color | Aqua | Helps installers recognize OM3 ports quickly in mixed patching fields. |
| Body Style | Duplex high-low | Matches specific high-density panel layouts and paired LC routing requirements. |
| Mounting Style | Without flange | Suitable for compact snap-in panels where a clean front profile is required. |
| Quality Requirement | Low insertion loss, repeatable mating, ceramic sleeve alignment | Supports stable field performance after repeated patching and maintenance. |
