Can you pull pre-terminated fiber through a long conduit route? Sometimes, but route length alone cannot settle the order. Before ordering, confirm four things for the exact assembly and route: its allowable pulling load, the clearance needed for its protected connector end, the effect of bends on the pull, and the length required for the routed path and planned slack.
Long routes can combine short pull-box intervals with one difficult uninterrupted section, and can cross both indoor and outdoor environments. A factory-terminated cable may remove on-site connector work, but it does not remove the need to survey the route or verify the assembly's mechanical limits.
No nominal distance can supply the missing product and pathway data. Use the manufacturer's current instructions for the selected part and measurements from the site.
1. What is the assembly's actual pulling limit?

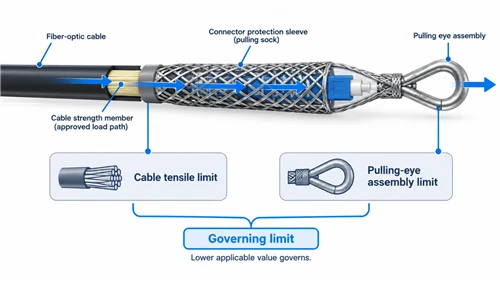

The cable and its factory-installed pulling eye can have different limits. Record both the maximum installation load of the cable and the maximum load permitted through the pulling-eye assembly. Plan against the lower applicable limit. Also confirm how the eye transfers load into the cable; the rating assumes the manufacturer's approved attachment and pulling method.
For example, Siemon's Base-12 Plug and Play specification lists a 40 lb maximum pull force and a 101.2 lb maximum cable tensile load for one 12-fiber non-armored assembly. For its 12-fiber armored assembly, it lists a 100 lb maximum pull force but a 49.5 lb maximum cable tensile load. On those two examples, the lower published figures are 40 lb and 49.5 lb respectively. The larger number in either row is not permission to pull past the smaller one.
Those are Siemon product examples, not ratings for every pre-terminated assembly or for an outdoor cable. The specification identifies particular plug-and-play constructions and jacket options. Do not transfer its figures to a different manufacturer's long-route product, or assume that adding armor raises the usable pulling limit. Ask for the installation rating of the proposed outdoor-rated part number, including its connector protection and pulling eye.
As a general installation rule, The Fiber Optic Association (FOA) advises pulling through the cable's strength members and using a swivel to limit twisting. It also recognizes a narrower exception: a manufacturer may specifically approve jacket pulling with an appropriate grip. Follow the instructions for the cable being installed.
Order check: Obtain the exact part number, the cable and eye load limits, and the approved pulling method in writing. If the planned route's estimated load cannot be kept below the governing limit with a practical margin, change the installation plan before placing the order.
2. Will the protected connector end pass through the entire duct route?
Cable outside diameter alone cannot answer this. The pulling eye, protective tube or connector package is often the widest and least flexible part of a pre-terminated assembly. Compare its required minimum clear duct bore and minimum bend radius with the narrowest duct, coupling, sweep and pull-box entry along the route. Existing cable, debris or a crushed section can reduce the usable opening
Siemon's Base-12 specification illustrates the difference between cable size and installation clearance: its non-armored assemblies list a required duct diameter of 2.75 in for 12–36 fibers, 3.5 in for 48–72 fibers, and 4.25 in for 96–144 fibers. These figures belong to that product family. The armored table in the same sheet does not publish a corresponding required duct diameter, so its non-armored values should not be assigned to an armored build without confirmation. A rule of thumb about conduit size is not a clearance specification for another assembly.
For an existing route, measure the duct's actual internal diameter, identify its tightest fittings and inspect or prove the path before treating the order as feasible. A clear opening at each end does not prove that the protected end will pass through the middle. FOA's underground installation guidance describes checking and clearing ducts before installation.
The assembly must also suit its environment. A cable passing through buried conduit may encounter moisture even when it is not directly buried. Confirm the proposed cable's outdoor and water-blocking construction, and check any building-entry requirements against the actual design. FOA's outside-plant cable guide explains why cable construction and water protection depend on the installation environment. Glory's outdoor cable range shows possible constructions to discuss with the supplier; the category page does not establish the rating of a proposed pre-terminated assembly.
Order check: Ask the supplier for the protected-end dimensions, required clear bore, bend requirement and environmental rating of the proposed assembly. Compare them with a surveyed route, not a nominal conduit size.
3. What will the bends do to pulling tension?
A route's total length is a poor substitute for a pull calculation. Tension rises as cable travels through duct, and bends add friction while changing its direction. A shorter section with several tight sweeps can be harder to pull than a longer, straighter section. The calculation needs the route's section lengths, bend angles and radii, cable weight, duct conditions, approved lubricant and proposed pulling direction. If those inputs are unknown, a confident "yes" based on footage alone is premature.
Survey the longest or most bend-heavy section first. An uninterrupted section deserves its own tension estimate; it does not become safe merely because it is shorter than the full route. Mark every sweep and pull box, and check that the cable and protected end can negotiate each bend. FOA's installation guide gives a general minimum bend-radius guide of 20 times cable diameter while under pulling tension and 10 times after installation, when the manufacturer supplies no more specific requirement. The applicable product instructions govern; the protected connector end may have a different bend limit from the cable itself.
Have the installer estimate the load for the proposed direction and monitor it during the pull. Lubricant must be compatible with the jacket. A swivel pulling eye helps prevent twisting; it does not increase the assembly's rated load. If a single pull is too demanding, evaluate an accessible intermediate pull, another approved installation method, or bulk cable followed by field splicing or termination.
Set the pulling direction before the order. If the route requires a two-way pull or a midpoint feed, confirm that the assembly has approved pulling provisions at the ends that will carry load; a standard single-eye build may not suit that plan. Figure-8 coiling can manage the cable between pulls without adding twist. Confirm the procedure and required working space with the installation team. FOA's figure-8 guide explains the method for intermediate and midpoint pulls.
Order check: Obtain a route sketch with bend locations and a documented tension estimate. Compare the expected peak against the lower applicable assembly limit, and specify how the crew will control and observe tension.
4. Is the ordered length enough for the real path and its slack?
Worked example: A measured route is 1,140 ft and a buyer considers a 1,200 ft pre-terminated assembly. The subtraction leaves 60 ft. That is a nominal difference, not an approved slack allowance. The ordered length must cover the path through every duct and pull box, vertical rises and drops, the distance into each termination location, service loops specified for the project, and any length convention or tolerance in the manufacturer's quote. These figures illustrate the calculation; they are not recommended lengths or installation limits.
Prepare a segment-by-segment length schedule and state where slack will be stored. Vertical drops, equipment entry and service loops can consume the nominal remainder. Without those measurements, the arithmetic alone cannot tell us whether an assembly is long enough.
Also confirm how the manufacturer defines assembly length. Connector-tip-to-connector-tip length, breakout legs and factory tolerance can affect the usable trunk length. FOA's cable installation guide advises checking cable length and providing service loops for later work; the amount and locations must be set by the project design.
Spare fibers may help with future repair or growth, but fiber count is a network-design choice, not a substitute for the four installation checks. Recheck dimensions and ratings for whichever count and construction is selected.
Order check: Approve a measured length schedule showing each segment and each planned slack location. Then obtain the supplier's length definition, tolerance and maximum available continuous length for the selected construction.
When should you change from pre-terminated to bulk cable?
A pre-terminated assembly can avoid connector termination on site, but it still needs a feasible pull and post-installation testing. Bulk cable followed by splicing or termination adds field work and protected splice locations; it may offer a more workable installation when the proposed pre-terminated assembly cannot pass through the duct or meet the tension limit. Neither option is automatically better for a long route.
Make the choice only after the four checks are complete:
| If the verified route shows… | Reconsider the plan by… |
|---|---|
| The protected end cannot clear the narrowest passage or bend | Selecting a different approved assembly or installation method; if necessary, installing bulk cable and terminating later |
| Predicted pulling tension approaches or exceeds the assembly's governing limit | Revising direction, access or method with the installer and manufacturer; considering field-spliced cable |
| The required routed length plus slack exceeds the quoted usable assembly length | Ordering a longer approved assembly or designing a protected splice point |
| Part-specific ratings or route measurements are still missing | Delaying the purchase decision until those inputs are confirmed |
Glory product options for the two installation routes
These are real catalog products, offered here as starting points for a route-specific quotation. Their photographs do not establish that a standard configuration can be pulled through a particular route. Confirm the exact part, length, pulling hardware and installation limits before specifying any of them.
Outdoor fiber patch cord with pulling sheath
The linked catalog example shows an OM3 LC–LC assembly with a pulling aid. For a route-specific quote, request the required fiber mode, count, connectors, usable length, pulling-eye arrangement, rated load and minimum clear bore. The catalog example alone does not qualify a long custom build.
View product details →
GYTA53 outdoor cable
Glory lists this double-jacket armored construction for duct and direct-burial applications. The page heading says GYTA53 while its specification rows use GYFTY53 codes; resolve the quoted model and obtain its own pulling, bending and diameter data before selection.
View product details →
GL-L5-BR dome splice closure
A potential enclosure for the field-spliced alternative or a designed intermediate splice point. Match the quoted closure's entry seals, cable diameter range, tray capacity, placement and future access to the project plan.
View product details →Photographs: Glory Optical product pages linked in the cards, checked 28 September 2026. The cards show catalog products and possible purchasing routes, not a verified compatible kit or approval for this specific pull. The exact quoted datasheets govern.
For a GloryOptics quotation-or a quotation from any supplier-send the measured route, duct dimensions, bend schedule, installation environment, connector and fiber requirements, and requested slack locations. Ask the supplier to identify the proposed part number and confirm its usable length, pulling limits, protected-end clearance, approved pulling configuration and factory test documentation. Those answers, not the route's headline footage, determine whether a single pre-terminated pull is a sound order.
Sources and next steps
Technical references: FOA cable installation guide (pulling load, bend radius and service loops); FOA underground installation guide (duct preparation); FOA outside-plant cable guide (environment and cable construction); and FOA figure-8 coiling guide (intermediate pulls).
Illustrative manufacturer data: The competing load limits and non-armored duct-bore examples come from Siemon's Base-12 assembly specification (PDF). Its values apply to the listed Siemon products; they are not Glory ratings or general installation limits.
Glory pages: Browse the outdoor cable range, review OEM configuration options, or request a route-specific quotation. Product pages are catalog references, not confirmation that an assembly meets this route's requirements.
