OM3 LC-LC Duplex Outdoor Fiber Patch Cord
High-quality LC multi-mode OM3 breakout fiber patch cord for indoor (within buildings) and outdoor use.

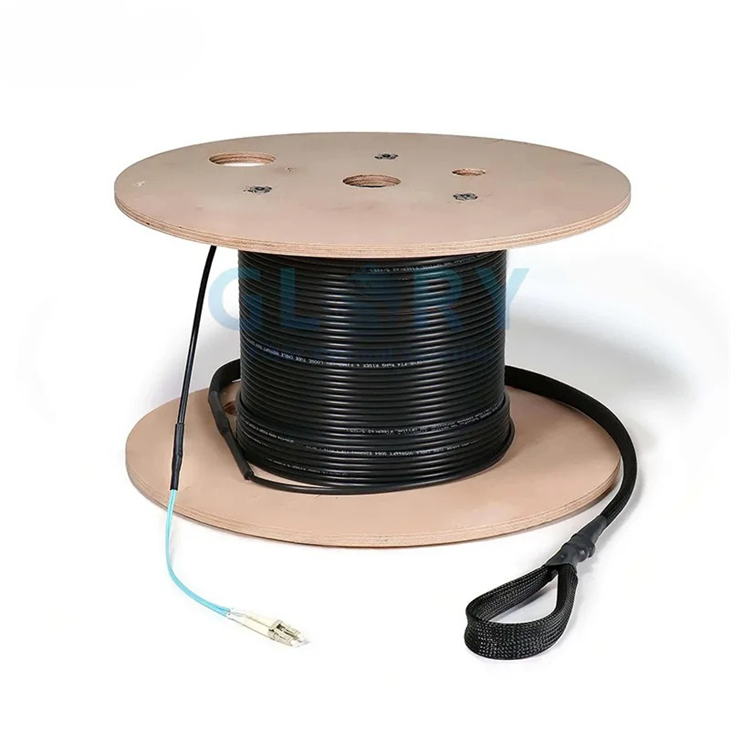

This multi-purpose cable features twelve cores in tubes reinforced with aramid yarn. It has a black protective jacket and flexible, extremely tear-resistant nylon pulling aids on both ends. These cables, as well as their jackets, are designed to produce minimal smoke in case of fire and do not emit harmful gas-acid combinations or toxic fumes when exposed to flames. These features contribute to better environmental compatibility.
Specifications:
|
FIBER TYPE: |
Multi-mode 50µm OM3 |
|
NUMBER OF CORES: |
2 Cores |
|
CONNECTOR TYPE: |
LC/PC/UPC/APC |
|
ATTENUATION: |
insertion/return loss: <0.25dB / >20dB |
|
TYPE: |
Breakout Cable |
|
COLOR: |
Black |
|
CABLE DIAMETER: |
12.4mm +/- 0.5mm |
|
DIAMETER OF PULLING AID: |
42mm +/- 3mm |
|
MIN. BENDING RADIUS OF CABLE: |
248mm while pulled, 124mm when laid |
|
MAX. PULLING FORCE: |
150N / 15kg |
|
STOCK TEMPERATURE: |
-20°C to +70°C |
|
WORKING TEMPERATURE: |
-20°C to +70°C |
|
WEIGHT: |
depends on length, approx. 15.5kg/100m |
|
MIN. BENDING RADIUS OF PULLING AID: |
248mm while pulling |
Features for Om3 Outdoor Patch Cord
• High-strength, fatigue-resistant fibers ensure the reliability and longevity of field cables in harsh conditions.
• A special coating layer and secondary composite structure absorb mechanical and environmental stress, minimizing additional optical cable loss.
• Small-pitch SZ-stranded optical fibers combined with aramid-reinforced single-strand configurations provide the field cable with a wide tensile strain window.
• High strength-to-weight ratio and a compact round jacket structure make the cable lightweight and ideal for repeated retractable use.
• Flame-retardant, high-toughness polyurethane (PU) elastomer sheath features a high oxygen index, excellent flame retardancy, oil/chemical resistance, tear resistance, low-temperature flexibility, elasticity, stress buffering, and pressure-resistant durability.
• Tight-buffered color coding complies with the TIA-598-A standard for simplified fiber routing and termination.
• Cable jackets include printed product information and length markings for easy identification.
• Quick-connect cable connectors can be pre-installed on both ends of the field cable upon request.
• Available in 1 to 6 fiber cores, with custom configurations tailored to user requirements.
Applications
• For military wiring;
• For field wiring;
• Used for harsh and harsh environmental wiring;
• Used for temporary wiring and may be retracted for use.
Where This Cable Solves Real Problems
From 5G rollouts to smart factory automation, this outdoor patch cord is the interconnect of choice wherever reliability and speed of deployment matter.
- FTTA antenna feeder cables
- 4G LTE / 5G NR base stations
- RRH / RRU to BBU CPRI links
- Small cell outdoor deployments
- Distributed Antenna Systems (DAS)
- Harsh-environment factory floors
- Robotics & motion control networks
- Outdoor industrial Ethernet
- Oil field & mine communications
- Chemical plant sensor networks
- Traffic monitoring systems
- Tunnel communication networks
- Roadside ITS units
- Video surveillance (outdoor PTZ)
- Smart city sensor hubs
- Military communication systems
- Marine & offshore platforms
- Emergency response networks
- Remote monitoring stations
- Fiber optic sensing systems
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
