How Locking Fiber Connectors Work in Pre-Connectorized FTTH Terminals

What Is a Locking Fiber Connector?

A locking fiber connector is an outside-plant connector with a positive retention mechanism that prevents the plug from loosening under normal pulling, vibration, temperature change, or maintenance activity.

In FTTH networks, these interfaces are commonly used between:

• a multiport service terminal and a subscriber drop cable;
• an outdoor wall terminal and an indoor cable;
• a splitter or tap terminal and a pre-terminated branch;
• a distribution terminal and a hardened-to-SC/APC drop assembly.

The term fiber optic module lock is sometimes used informally, but it can refer to several unrelated products. In a data center, it may describe an anti-removal device for an SFP transceiver. In an FTTH terminal, it normally refers to the mechanism that retains a hardened connector in a port or replaceable connection module.

For technical specifications and RFQs, clearer terms include the industry category fiber optic connector and the application-specific terms below:

• locking fiber connector;
• hardened fiber connector;
• tool-free FTTH connector;
• push-lock fiber terminal port;
• pre-connectorized FTTH terminal.

Retention, alignment, and sealing are related-but not identical

A well-designed hardened interface must satisfy three separate requirements:

1. Mechanical retention
   The plug must remain fully seated under the connector's rated pulling, vibration, and handling conditions.

2. Optical alignment
   The ferrules and alignment sleeve must maintain the specified mating geometry. The optical connection depends on ferrule concentricity, spring force, end-face condition, and connector cleanliness-not only on the outer latch.

3. Environmental sealing
   O-rings, gaskets, port caps, cable seals, and housing geometry must prevent harmful dust and water ingress under the stated test conditions.

The exact division of these functions depends on the connector design. A latch may retain the shell, while an internal spring controls ferrule contact and a separate O-ring provides the seal.

How Does the Locking Interface Work?

Although connector families differ, field installation normally follows the same basic logic.

1. Inspect the port and plug

Remove the protective caps only when the connection is ready to be made. Check that:

• the port cap and plug cap are clean and undamaged;
• the O-ring or sealing surface is present and free of debris;
• the connector body has no cracks or deformation;
• the keying features match the port.

Connector caps protect the interface during storage and transport, but capped connectors should not automatically be assumed clean. End-face inspection should follow the operator's approved procedure. For practical routing, cleaning, and testing steps, see the fiber patch cable installation guide and the available fiber optic tool kits.

2. Align the keyed interface

Hardened FTTH connectors are normally keyed so the plug enters the adapter in the correct orientation. This is especially important for APC interfaces, where the ferrule angle must be correctly aligned.

Do not force a connector that does not enter smoothly. Resistance may indicate:

• incorrect orientation;
• a mismatched connector family;
• damaged keying;
• contamination in the port;
• an incorrectly selected converter.

3. Engage the retention mechanism

The locking action depends on the interface type:

• Push-lock: insert the connector until the latch engages.
• Bayonet: insert and rotate to the specified stop.
• Threaded: insert the keyed plug and tighten the coupling nut to full engagement.

A positive click, visible latch position, or fully seated coupling provides mechanical confirmation. The manufacturer's installation instruction should define the correct engagement method.

4. Verify the connection

After mating:

• confirm the connector is fully seated;
• perform only the retention check permitted by the manufacturer;
• verify that the seal is correctly engaged;
• record the terminal and port number;
• complete the required optical acceptance test.

Push-Lock vs. Threaded Hardened Connectors

Push-lock and threaded interfaces can both provide reliable outdoor connections when correctly designed, installed, and tested. The better choice depends on the operator's existing ecosystem, port density, maintenance model, and approved component list.

Neither system should be selected only on connection speed. The larger issue is interface standardization across the project.

Before approving a connector family, confirm:

• whether it directly intermates with existing terminals;
• whether a converter is required;
• the additional insertion loss of the converter;
• whether the environmental rating is maintained;
• whether the converter affects warranty or approved-vendor status;
• whether replacement drops and spare ports will remain available.

Why Are Locking Connectors Used in Pre-Connectorized FTTH Terminals?

Faster subscriber activation

A factory-terminated drop eliminates field polishing and can eliminate fusion splicing at the subscriber port. The installer can connect the assigned drop after completing inspection, routing, and testing.

This is useful where:

• subscriber activations are repeated across many identical locations;
• field-splicing resources are limited;
• the operator wants consistent factory-terminated interfaces;
• MDU floors or street terminals require compact multiport access.

Reduced enclosure access

A hardened front port allows a drop cable to be added or replaced without opening the main terminal enclosure. This helps keep internal splitters, taps, pigtails, and routing protected from unnecessary handling.

Repeatable port identification

Numbered ports make it easier to align:

• network design records;
• terminal labels;
• subscriber drop IDs;
• test results;
• maintenance records.

The benefit depends on accurate as-built documentation. A numbered button or port label is only useful when field records match the physical terminal.

Factory-controlled termination

Factory termination can improve consistency by moving connector assembly and testing into a controlled environment. It does not remove the need for field inspection, because contamination, shipping damage, route stress, or incomplete mating can still affect the installed link.

What Should You Check Before Selecting a Locking FTTH Terminal?

For a broader comparison of enclosure types, port counts, sealing levels, and mounting environments, consult the fiber optic termination box selection guide and the full fiber optic termination box range.

1. Cable construction and outside dimensions

A hardened connector is assembled around a defined cable geometry. The rear seal, strain relief, strength-member anchoring, and crimp structure must match the cable.

Confirm:

• round, flat, figure-8, toneable, or other cable profile;
• exact cable outside dimensions;
• fiber count and fiber type;
• strength-member material and position;
• short-term and long-term tensile ratings;
• minimum cable bend radius;
• connector type at each end;
• required factory-terminated length.

A connector built for a 5.8 mm round cable should not be assumed suitable for a 4 × 7 mm flat drop simply because the front interface looks similar.

Pre-terminated lengths also require accurate route surveys. Excess cable requires controlled storage, while an undersized assembly may need complete replacement.

2. Connector-family compatibility

Do not treat phrases such as "OptiTap-compatible," "Huawei-compatible," or "ZTE-compatible" as complete specifications.

Compatibility may mean:

• direct mechanical and optical intermating;
• compatibility through a converter;
• compatibility with only selected product generations;
• compatibility under indoor conditions but not with the original outdoor rating.

Request a model-level compatibility table and verify:

• plug model;
• adapter model;
• converter model;
• tested insertion loss;
• environmental rating after conversion;
• mating-cycle rating;
• warranty conditions.

3. Optical performance

For each connector or terminal, determine exactly what the published value covers.

Insertion loss

Insertion loss should state:

• typical or maximum value;
• test wavelength;
• single connector pair or complete assembly;
• whether internal splitter or tap loss is included;
• test method and sample size.

For the Sticklok connector, Glory's published product data states a maximum connector insertion loss of 0.4 dB. This is manufacturer-published data and should be confirmed against the current datasheet and project acceptance limits.

Return loss and reflectance

These terms describe the same reflected-power relationship using opposite sign conventions:

• Return loss is normally stated as a positive value; higher is better.
• Reflectance is normally stated as a negative value; more negative is better.

A specification written as "return loss: -65 dB" mixes the conventions. It should be clarified as either:

• return loss ≥ 65 dB; or
• reflectance ≤ -65 dB.

The final product datasheet should use one convention consistently.

4. Environmental and mechanical ratings

An IP rating should be reviewed together with its test condition.

IEC 60529 defines the enclosure IP Code. For IPX8, the immersion conditions are specified for the product rather than inferred from the two characters alone. Therefore, buyers should request:

• immersion depth;
• test duration;
• test temperature;
• whether cables and connectors were installed during testing;
• preconditioning or temperature cycling;
• pass/fail criteria;
• test laboratory and report number.

Also verify:

• impact rating;
• compression resistance;
• vibration;
• cable retention;
• torsion and flexing;
• UV resistance;
• flame rating;
• operating temperature;
• installation temperature.

"Tested with reference to GR-771 or GR-3120 methods" should not be presented as third-party certification unless a qualification report supports that statement.

5. Terminal architecture

Select the terminal function before selecting the enclosure size.

Branch terminal

A branch terminal provides connectorized distribution without an internal splitter. Optical splitting occurs upstream.

Splitter terminal

A splitter terminal contains one or more PLC splitters. Verify:

• split ratio;
• number of splitter inputs;
• number of output ports;
• splitter loss;
• connector loss;
• port numbering;
• whether unused outputs are sealed.

Tap or cascade terminal

A tap terminal directs part of the optical power to local subscribers and passes the remaining power to the next node.

For cascaded designs, calculate the complete worst-case path, including:

• feeder loss;
• express loss through every upstream tap;
• local tap/drop loss;
• connector pairs;
• splice loss;
• engineering margin.

Do not evaluate a tap terminal only by the first node in the chain.

Sticklok Modular Terminal: A Product Example

Glory Optical's Sticklok-based modular terminal family is one implementation of a push-lock pre-connectorized FTTH system. The figures below are based on the manufacturer's published product information and should be confirmed against the latest approved datasheet and test reports before project use.

How the Sticklok port works

Each front port uses a numbered release button. The hardened Sticklok plug is inserted into the assigned port and retained by the locking mechanism. Pressing the button releases the plug for maintenance or drop replacement.

Available drop configurations include:

hardened-to-hardened;

SC/APC-to-hardened.

The SC/APC end is intended for equipment-side or indoor termination where a standard SC/APC interface is required.

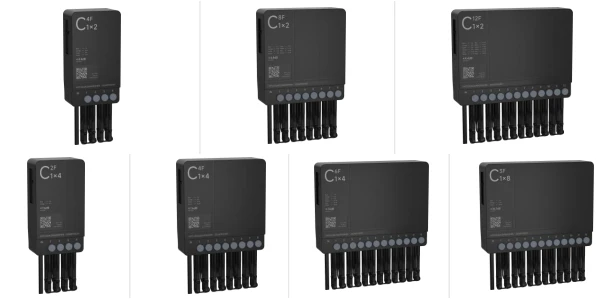

Product series

Cable-specific connector options

Published Sticklok connector options include:

• 5.8 mm round cable;
• 3.0 mm round cable;
• 2 × 5 mm figure-8 cable;
• 4 × 7 mm flat cable;
• 4 × 8.5 mm flat cable.

These connector assemblies use different rear-seal and tensile configurations. They should be treated as different parts even when they mate with the same terminal port.

Mounting options

The product family supports:

• wall mounting;
• pole mounting;
• aerial messenger mounting.

The correct mounting kit should be included in the BOM rather than assumed to be part of every terminal configuration.

Converter options

The product page lists Sticklok, OptiTap, Huawei, and ZTE converter options. Before using a converter in a mixed-vendor network, request the exact converter model and verify:

• direct or converted interface type;
• added insertion loss;
• environmental rating;
• supported cable and connector models;
• approved mating cycles;
• warranty effect.

Installation and Acceptance Checklist

A pre-connectorized terminal reduces field termination work, but it still requires controlled installation. For the surrounding mounting, cable routing, and enclosure workflow, use the termination box installation guide together with the FTTH cable installation guide.

Before installation

1. Confirm the terminal model and port configuration.
2. Match the drop cable profile and connector code to the purchase order.
3. Verify cable length against the surveyed route.
4. Confirm mounting hardware and accessories.
5. Review the approved optical loss budget.
6. Confirm that all unused ports have protective caps.

During installation

1. Mount the terminal without deforming the housing.
2. Route the feeder and drop cables within the specified bend radius.
3. Keep connector caps installed until immediately before mating.
4. Inspect and clean the optical interfaces according to the operator's procedure.
5. Align the keyed connector without forcing it.
6. Engage the locking mechanism fully.
7. Check the seal and cable strain relief.
8. Label the terminal, port, and subscriber drop.

After installation

At minimum, record:

• terminal ID;
• port number;
• drop cable ID and length;
• subscriber or destination;
• test wavelength;
• measured end-to-end loss;
• installation date;
• technician or crew;
• exceptions or rework.

OTDR or reflectance testing should be added when required by the operator, the link design, the fault-location plan, or the service carried on the link.

Where Are Locking FTTH Terminals Most Useful?

Locking pre-connectorized terminals are particularly suitable for:

Residential FTTH distribution

Multiport terminals can support repeat subscriber activation without reopening the enclosure for every drop.

Rural and low-density routes

Factory-terminated drops can reduce the amount of specialized field-splicing work needed at widely separated subscriber locations.

MDU corridors and risers

Compact ports and controlled drop lengths can simplify repeat floor-by-floor connections where the pathway has been surveyed in advance.

Aerial access networks

A sealed terminal can be mounted on a pole or messenger and connected with pre-terminated aerial drops.

Handholes and underground access points

A compact sealed terminal may fit in smaller access spaces, provided the enclosure, connector, cable, and mounting system are qualified for the expected water, impact, and handling conditions.

Networks with frequent drop replacement

Where subscriber drops are exposed to construction, vehicle, animal, or weather damage, a connectorized port can allow the drop to be replaced without reopening the internal optical assembly.

When Is a Pre-Connectorized Locking System Not the Best Choice?

A locking terminal is not automatically the right choice for every project.

Consider another approach when:

• route lengths cannot be surveyed accurately;
• field rerouting is frequent;
• the operator already uses a different hardened interface ecosystem;
• replacement assemblies are not available locally;
• converter-based interoperability would consume too much optical budget;
• field-spliced drops provide better flexibility for highly variable routes;
• project standards require a specific qualified connector family.

The choice should be based on lifecycle operations, not only on installation time.

Frequently Asked Questions

Conclusion

Locking fiber connectors make pre-connectorized FTTH terminals practical by giving field crews a repeatable way to connect and replace subscriber drops without opening the main enclosure. Their value depends on more than a fast locking action.

A reliable deployment requires:

• one clearly defined connector ecosystem;
• cable-specific connector assemblies;
• documented optical performance;
• stated environmental test conditions;
• correct mounting and routing;
• field inspection and acceptance testing;
• accurate port records;
• access to compatible replacement parts.

For projects considering the Sticklok system, the MTC, MTS, MTT, and STC families provide branch, splitter, tap, and drop-cable options within one modular interface. Final selection should be based on the approved loss budget, cable geometry, port plan, mounting environment, and verified test documentation.

Related product: Fiber Optic Termination with Sticklok Connector · Request a project configuration or quote
