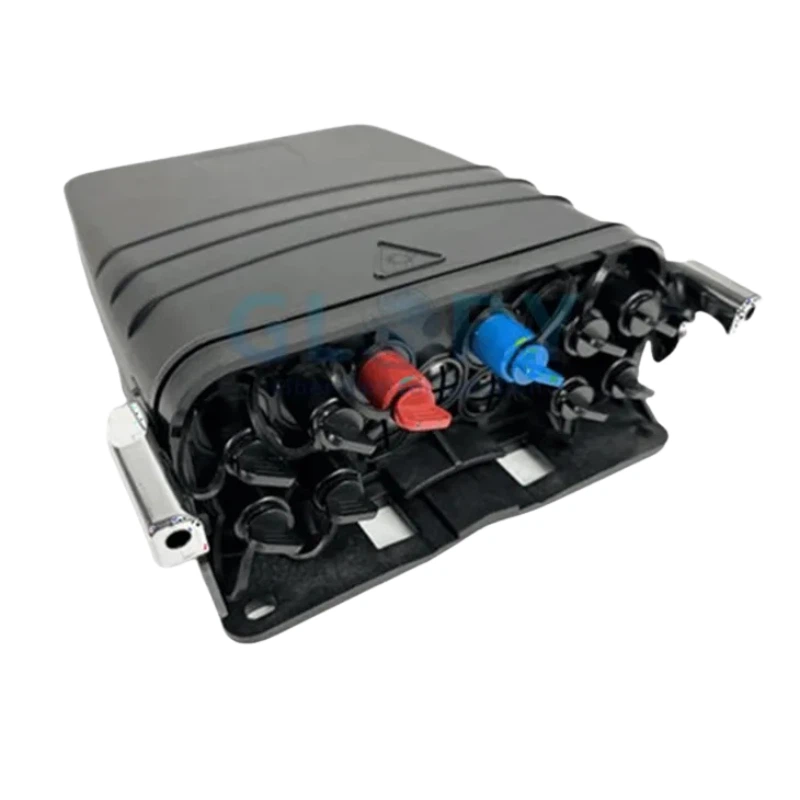

10 ports FTTX Pre-connectorized Outdoor Fiber Terminal Box
The Outdoor Fiber Terminal Box consists of 10 bayonet-type enhanced pre-connectorized waterproof SC adapters, splice trays, and a splice organizer system. All components are accessible and connectable from outside the sealed box.
This pre-connectorized terminal box is used as a termination point for feeder cables to connect with drop cables in FTTx networks. This box facilitates fiber splicing, splitting, and distribution, forming the optical interconnection point between the feeder network and the distribution network. It allows on-demand connection to a single optical outlet in the customer's home. Meanwhile, it provides solid protection and management for the FTTx network infrastructure.
The fiber terminal box is completely sealed and weatherproof. Designed for both indoor and outdoor use, the box can be pole-mounted, wall-mounted, or aerial-mounted, achieving an IP68 protection rating.
Product Details：
|
Model |
GL-FTB-10A |
Color |
Black |
|
Splice Capacity |
48F splice |
Protection Level |
IP68 Indoor/Outdoor |
|
Material |
Plastic:PP+GF Metal: SUS304 |
Flame retardant performance |
Non-flame retardant |
|
Dimension (LxWxD) |
262x209x94 (No Buckle) 269x237x94 (With Buckle) |
Suitable Splitter |
1:4 or 1:8 or 1:9 or 2:4 blockless PLC Splitter SC |
|
Input Cable Port |
1-2 |
Output Adapter |
10 pcs Mini SC waterproof adapters |
|
Installation Method |
Overground, underground, manhole/hand hole |
Sealing mode |
Mechanical |
|
Environmental requirement |
|
|
Working temperature |
-40℃～+85℃ |
|
Relative humidity |
≤85%(+30℃) |
|
Atmospheric pressure |
70KPa～106Kpa |

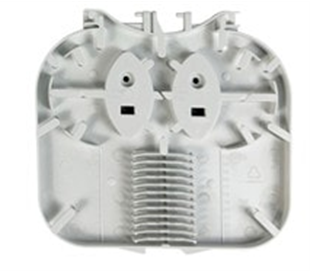

Splice tray details:
|
Model-R021 |
|
Dimension(mm) |
134x125x8 |
|
Material |
PC+ABS, ABS |
||
|
Splice Capacity |
12F, 1 slot for 1*8 or 1×4 PLC splitter |
||
|
Model-R023 |
|
Dimension(mm) |
134x125x8 |
|
Material |
PC+ABS, ABS |
||
|
Splice Capacity |
24F |
Features：
• IP Protection Grade: IP68
• The outdoor fiber terminal box is used for Mini SC waterproof connector.
• Advanced structure design, easy operation and reasonable routing.
• 10 pcs pre-plugged Mini SC adapters
• Available for 1x4, or 1x8 Micro PLC splitter
• Adopt plastic clip lock for easy reopen and maintenance
• Applicable for pole-mounted, aerial-mounted, or wall-mounted.

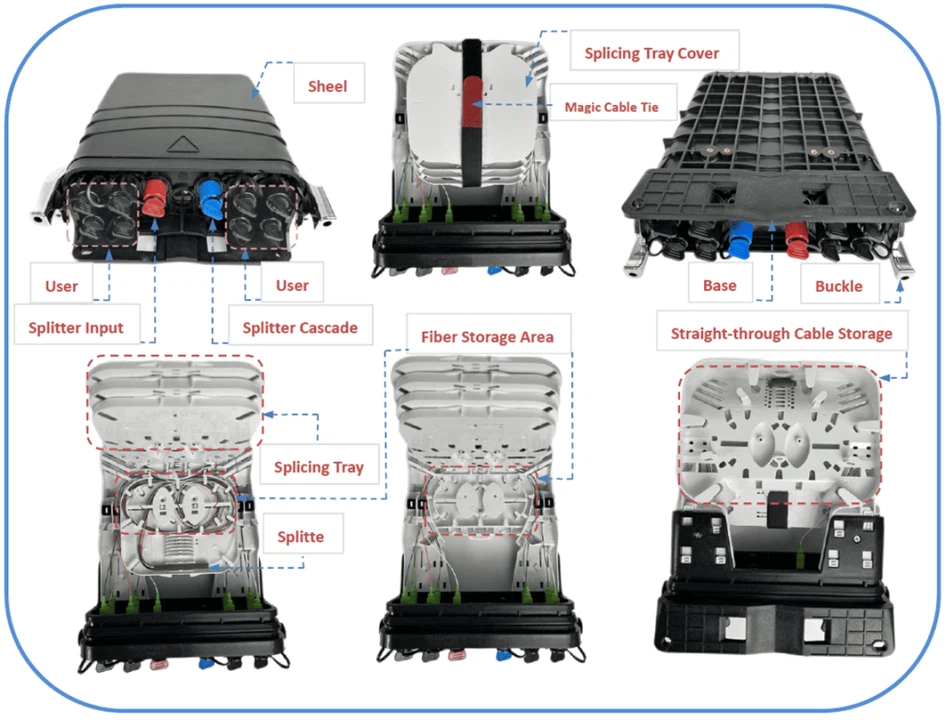

Structural Details of Outdoor Fiber Terminal Box：

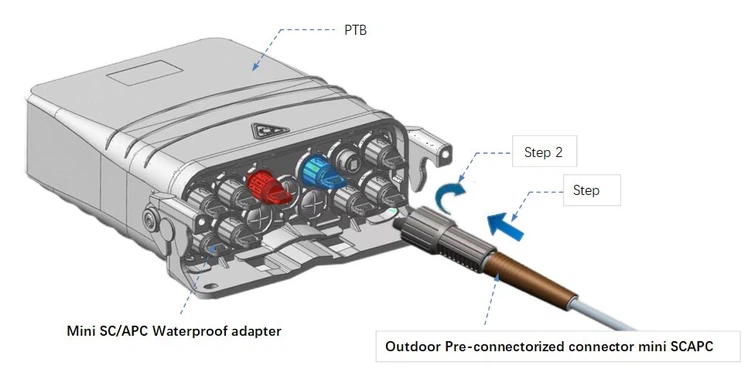

Pre-connectorized waterproof SC adapters Details
