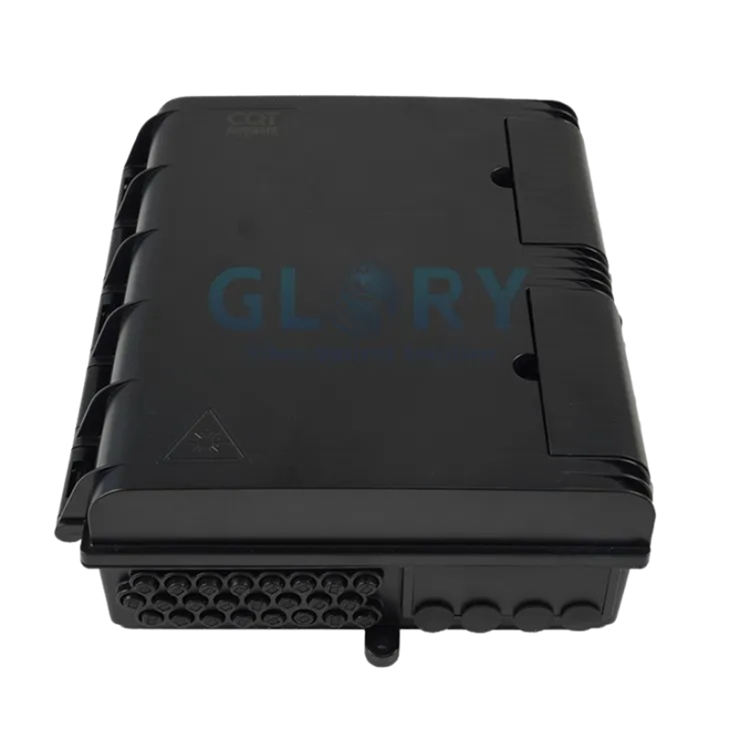

Outdoor Fiber Optic Distribution Box

Outdoor Fiber Optic Distribution Box

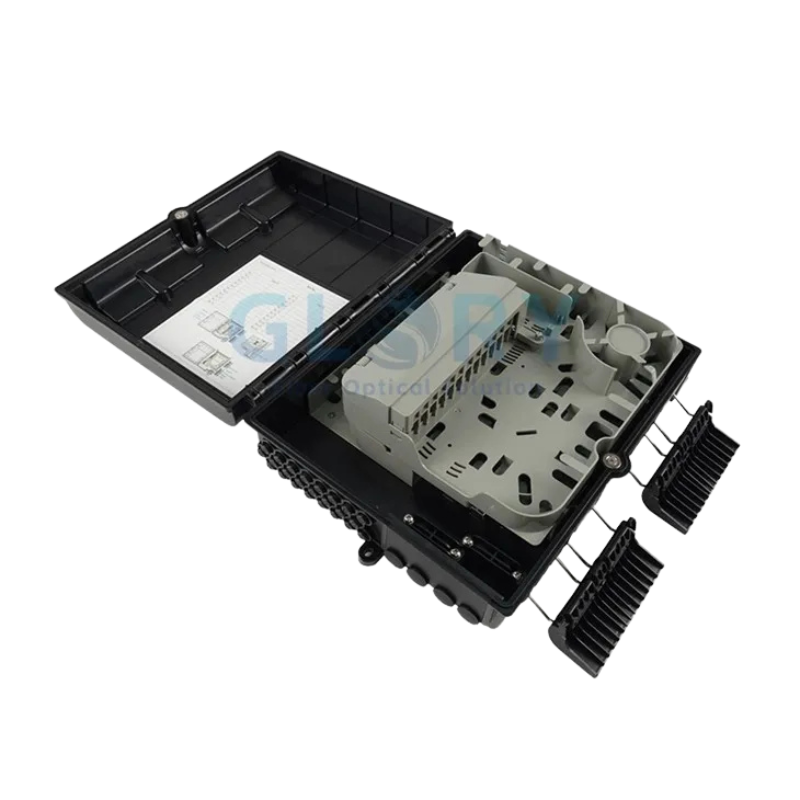

The Fiber Optic Distribution Box is designed for fiber connection and distribution in fiber distribution networks. It is made of high-quality engineering plastic, features a sleek design, and utilizes a tool-free locking mechanism for easy installation.

Specifications:

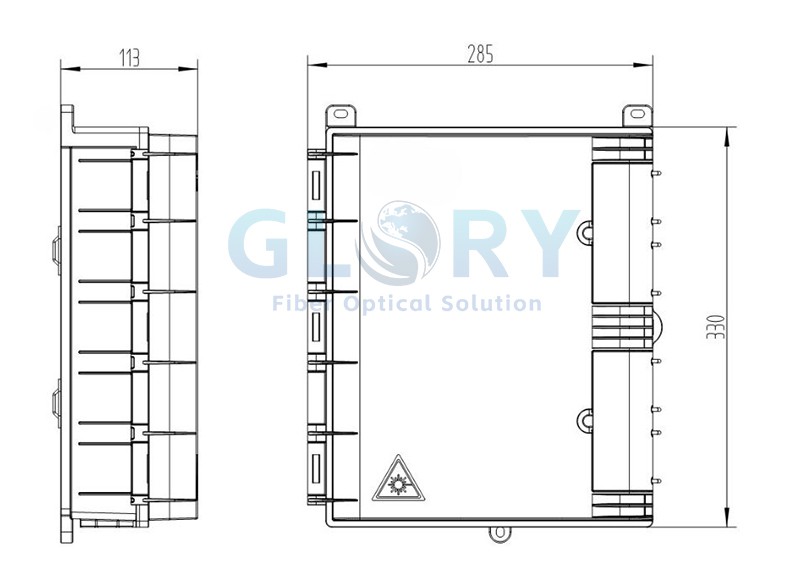

Dimensional drawings:

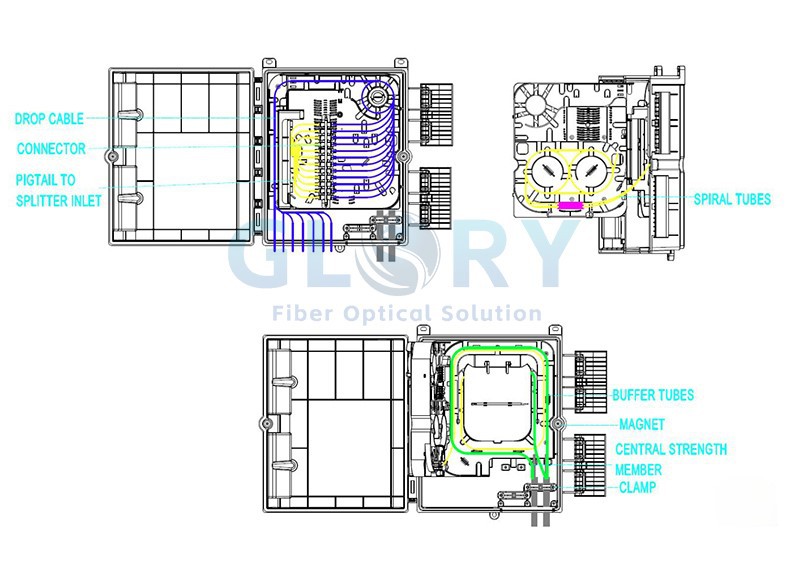

Fiber Routine

Features:

• Easy optical cable entry via the detachable main cable port cover at the bottom; fiber drop cables have a separate port entry with easy cable management.

• The box is rigid and features a boltless locking mechanism.

• The panel cover is easy and convenient to open and close.

• Compatible with SC/APC adapters and supports multiple 1×8 mini-type PLC splitters.

• Suitable for enclosed pull-through cables, with simple and easy looping of fiber loose tubes.

• Designed for pole-mounted and wall-mounted installations.

Outdoor Fiber Optic Distribution Box Installation Method:

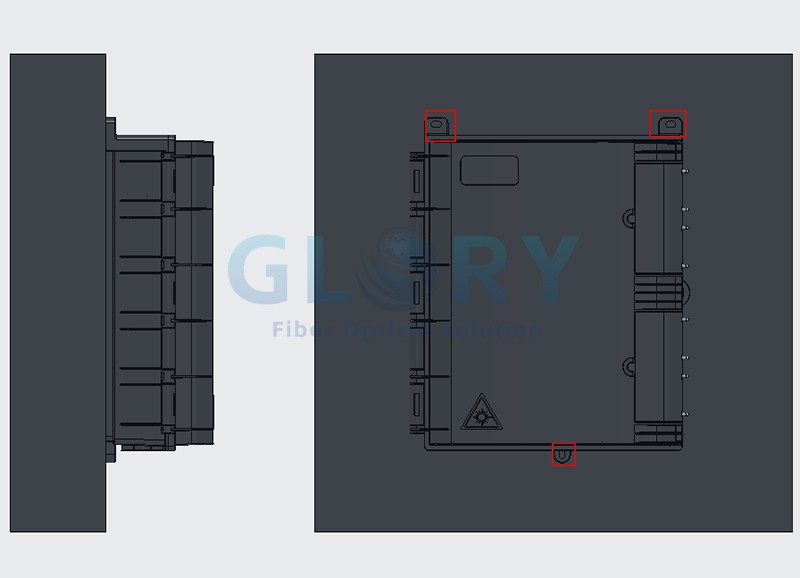

Wall-mounting：

According to the wall mounting hole(red box position), mark and drill 3 pieces - 8 mm ø holes in the designated height position on the wall , insert the plastic expansion, then use screw driver to install the box.

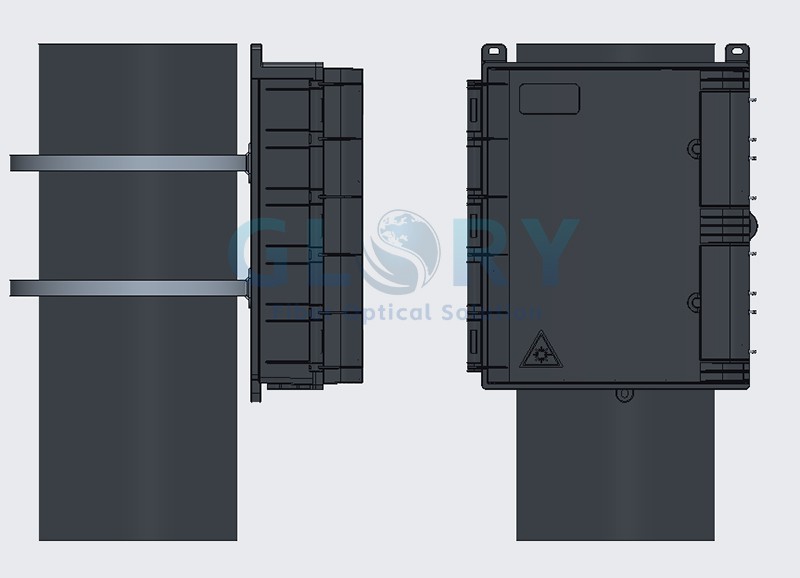

Pole-mounted:

Insert the hose clamp through the back plate, then install the box to designated pole height position, then tighten hose clamp.

FAQ:

1 Outdoor Fiber Optic Distribution Box & Termination Box

A fiber termination box is used to ​​connect fiber to an optical device​​ via a patch cable. It can also function as a ​​fiber optic distribution box​​, facilitating optical cable connections and distribution in ​​FTTX (Fiber to the X) and FTTH (Fiber to the Home)​​ applications. These fiber optic enclosures are weatherproof and ​​suitable for both indoor and outdoor environments​​, supporting ​​wall-mount or pole-mount installations​​. Featuring a compact, lightweight design, the fiber termination box is ideal for cable distribution and terminal connections in diverse optical fiber systems.

Fiber termination boxes can be ​​divided into two categories​​: ​​outdoor fiber termination boxes​​ and ​​indoor wall-mount termination boxes​​. The former enables fiber cross-connections and lightwave signal distribution. ​​FTTH distribution boxes​​ are typically installed on ​​upper floors of buildings​​ to facilitate feeder cable connections and bow-type drop cable installations. The latter (indoor boxes) are designed for ​​junction, splicing, and protection of fiber optic pigtails and cables​​, and are widely used for terminal connections in ​​villas, residential buildings, and commercial complexes​​. These boxes often include ​​SC/LC ports​​ to connect home cables to optical communication devices via fiber patch cables in fiber internet deployments.
