Fiber Terminal Box

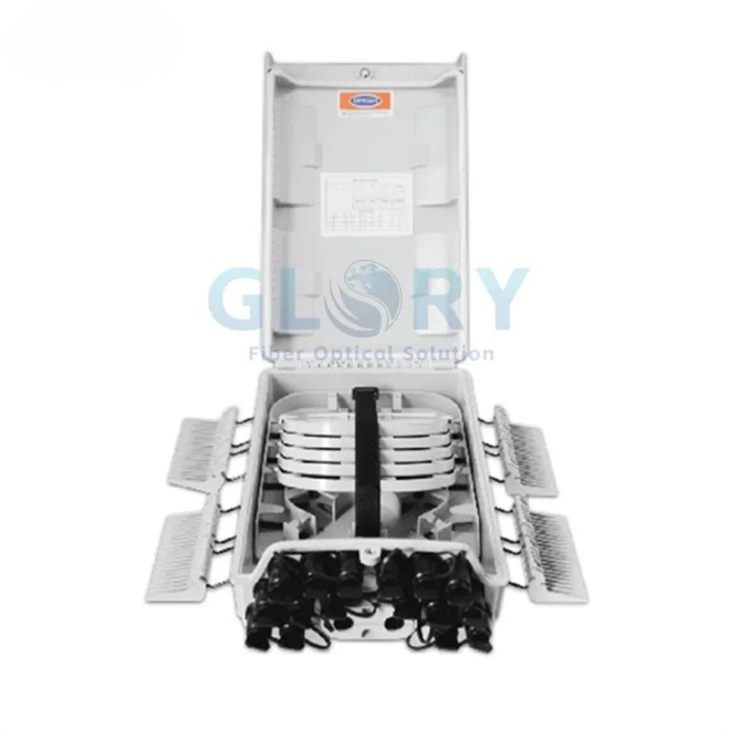

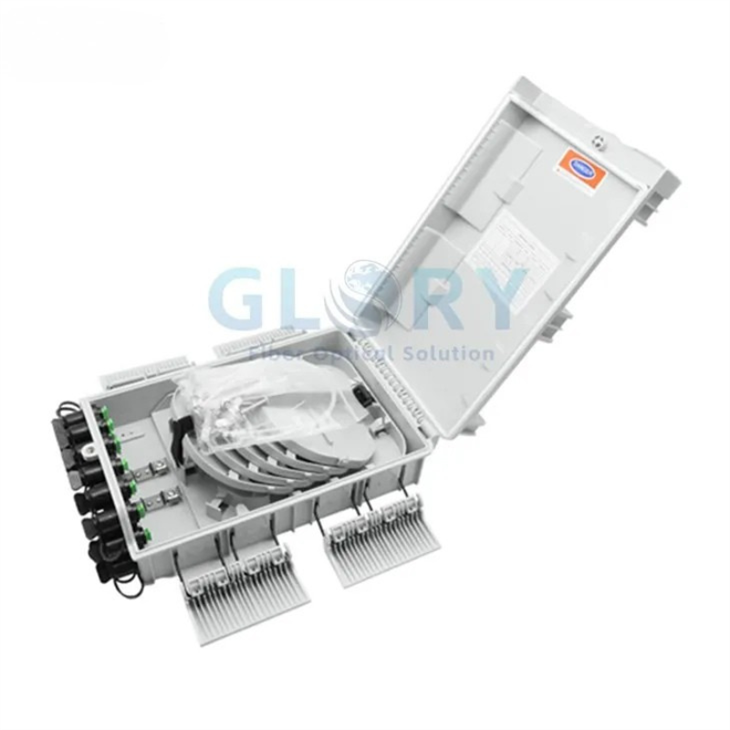

16 ports Pre-connectorized Fibre Terminal Box

The most challenging aspect of traditional ODN network construction is the connection between each ODN node and optical cable, which requires complex operations such as stripping, fixing, and splicing the optical cable. These processes are time-consuming and labor-intensive. To reduce on-site fiber splicing, the Quick ODN solution was developed. This solution improves the speed of field installation and is commonly referred to as the Quick ODN solution. Currently, pre-connectorized fiber terminal boxes can be used throughout the entire FTTH network construction process.

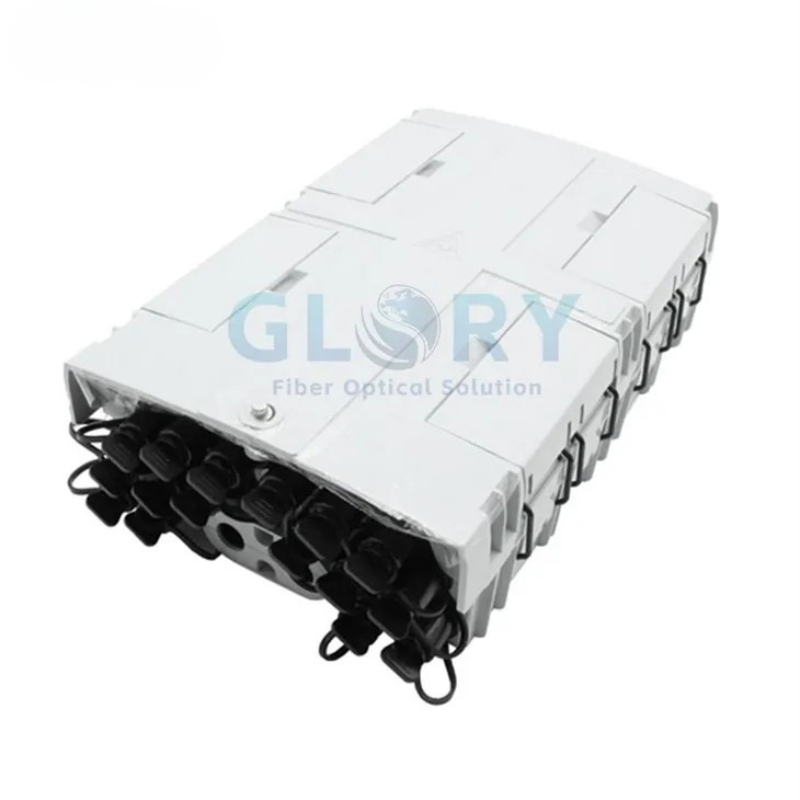

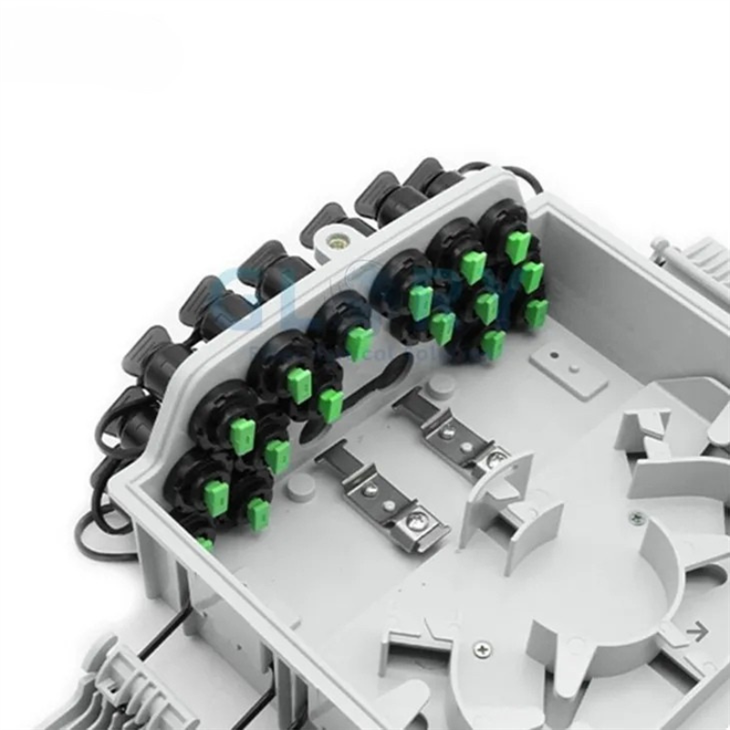

The ​​FTTX Pre-connectorized Fibre Terminal Boxx​​ is an advanced fiber management solution designed for FTTX (Fiber-to-the-X) networks. It serves as a critical distribution node, ensuring reliable connectivity, protection, and organization of fiber optic cables in both indoor and outdoor environments. The ​​Model GL-FTB-16C​​ is a pre-connectorized Fibre Terminal Box equipped with 16 waterproof SC adapters. The housing is constructed from PC+ABS material, though this can be customized according to customer requirements. The box has an IP65 waterproof rating.

Product Details:

Features of Fibre Terminal Box:

​​• No need for technicians or professional splicing equipment.​​

• ​​Uses asymmetric ratio optical networking.​​

• ​​Quick and easy installation with "plug and play" functionality.​​

• ​​Fully sealed, non-openable, pre-connectorized Fibre Terminal Box factory-assembled.​​

​​• Reduces labor costs and saves resources.​​

• ​​Improves construction efficiency and reliability.​

Technical Specifications:​

​

• ​​Port Type​​: SC/APC, LC/UPC, or customizable

• ​​Insertion Loss​​: ≤0.3 dB

​​• Return Loss​​: ≥55 dB (APC), ≥50 dB (UPC)

• ​​Operating Temperature​​: -40°C to +75°C

• ​​Compliance​​: Telcordia, RoHS

​​Benefits:​

​

• ​​Reduced OPEX​​: Eliminates splicing labor and testing costs.

• ​​Future-Proof Scalability​​: Modular design supports easy expansion.

• ​​Carrier-Grade Durability​​: Corrosion-resistant materials ensure long-term performance in harsh environments.

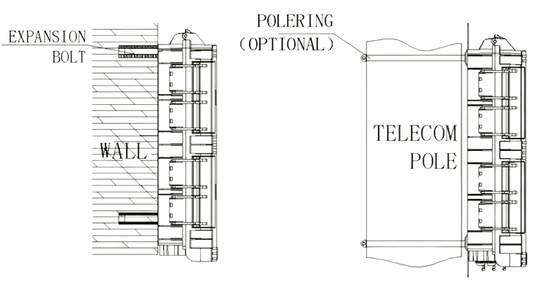

Installation of Fibre Terminal Box：

• Wall-mounted

Drill 4 holes over the wall based on the size,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

• Pole-mounted

Fix 1 set of the easy pole ring to the telecom pole

Application in Enterprise network terminations :​

​

The pre-connectorized Fibre Terminal Box is an ideal solution for ​​enterprise network terminations​​, offering rapid deployment and high-density fiber management in office buildings, campus networks, or data center environments. Its pre-polished connectors eliminate on-site splicing, ensuring plug-and-play compatibility ​​and​​ seamless integration with enterprise switches, servers, and backbone cabling systems. The compact design optimizes space ​​utilization​​ in telecom closets or equipment racks, while ​​its​​ robust IP65/67-rated housing protects against dust, moisture, and physical damage in challenging ​​installation environments​​. With low insertion loss (<0.3 dB) and high return loss (>50 dB), it reliably supports bandwidth-intensive applications such as cloud services, VoIP, and video conferencing. Tool-free access trays simplify routine maintenance, reconfiguration, ​​or​​ upgrades, ​​thereby​​ minimizing network downtime. The modular architecture allows scalability to accommodate growing enterprise demands, making it a future-proof choice for structured cabling systems ​​that require​​ flexibility, reliability, and carrier-grade performance.
