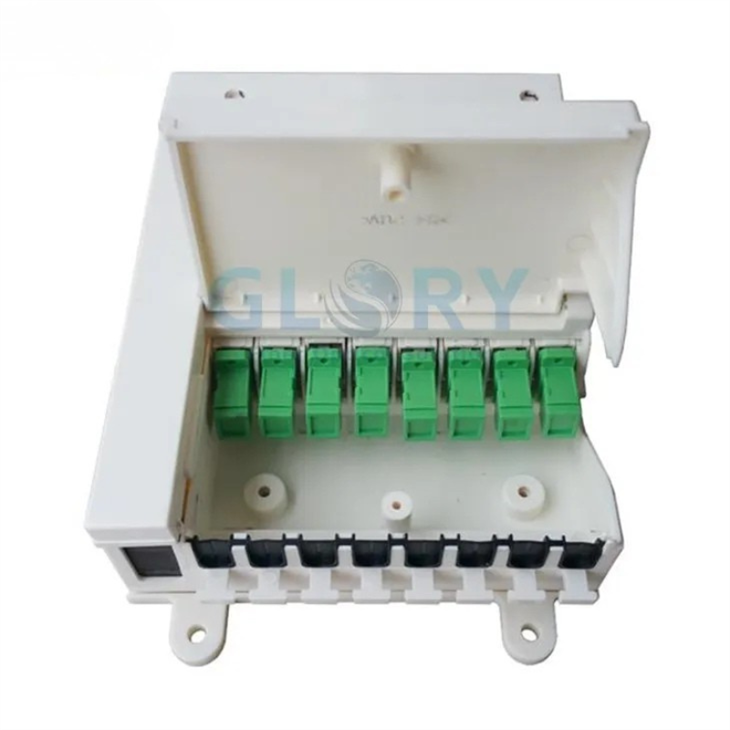

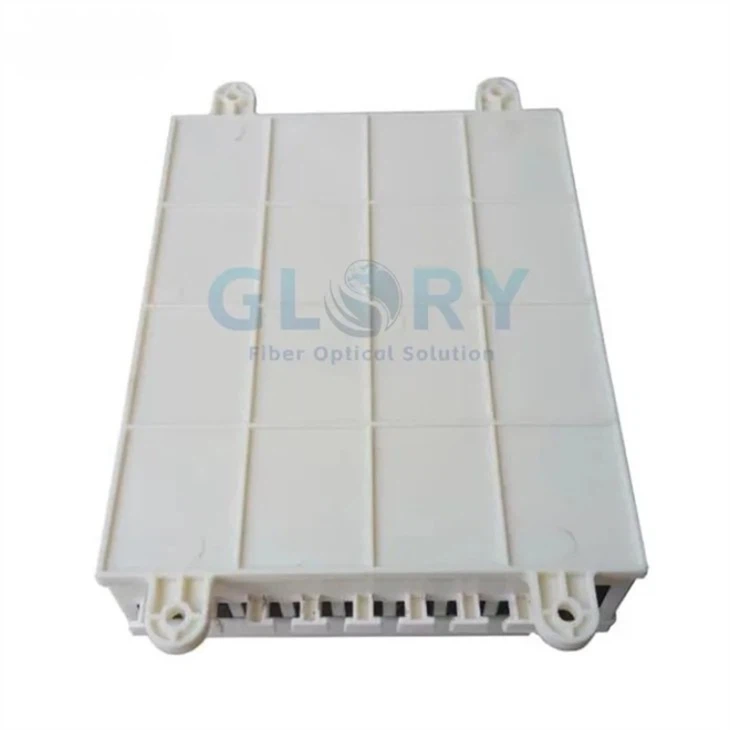

Fiber Optic Cable Terminal Box
The Fiber Optic Cable Terminal Box is used to protect fiber optic cables and facilitate fiber pigtail splicing at cable terminals. Constructed from high-quality ABS+PC material, it features anti-impact, flame-retardant properties and resistance to environmental factors, dust, and moisture. Compact in size and design, this terminal box is ideal for fiber optic connections in indoor network cabling systems.

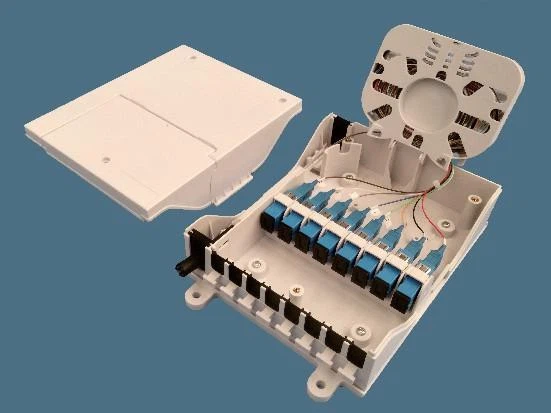

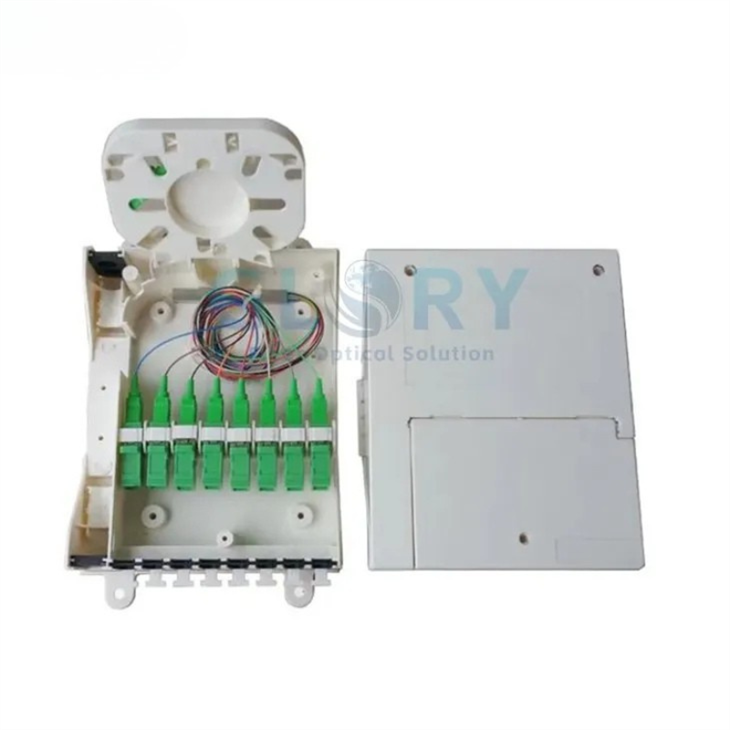

The Fiber Optic Cable Terminal Box supports installation of up to eight SC, LC, or FC adapters. Its flame-retardant housing ensures durability against environmental challenges. The fiber tray's organized layout enables efficient fiber management, simplifying storage and maintenance. A flip-up design allows for easy handling and visual inspection of connections.
Product Details:
|
Model |
FDB-S108B Fiber Optic Cable Terminal Box |
||
|
Dimension (mm) W×D×H |
192x133x47 |
Outer Carton (mm) W×D×H |
480x470x520 |
|
Material |
ABS/PC |
Product Net weight (Kg) |
0.3 |
|
Cable diameter (mm) |
≤F12 |
G.W (Kg)/carton |
19.5 |
|
Cable in/out: |
4/8 |
Quantity/carton |
60 |
|
Max splice |
8 |
Volume /carton |
0.117 |
Features for Fiber Optic Cable Terminal Box:
• Dust & Weather Resistance: Protects against dust, UV rays, and moisture to ensure reliable performance in harsh outdoor or industrial environments.
• Splitter Compatibility: Supports 1×4 or 1×8 PLC splitters for flexible fiber distribution and network expansion.
• Robust Cable Management: Reinforced strain relief clamps withstand pull forces over 50N (11.2 lbf), eliminating accidental disconnections.
• Wide Operating Range: Functions flawlessly in temperatures from -40°C to 60°C (-40°F to 140°F) and 95% relative humidity (RH).
• High-Density Design: Space-saving structure supports up to 8 fiber ports/cables for scalable network deployments.
Applications in FTTH (FIBER TO THE HOME):
8-port Fiber Optic Cable Terminal Box play a vital role in fiber-to-the-home (FTTH) networks, offering a reliable and compact solution for managing fiber connectivity in residential and commercial environments. In FTTH deployments, these fiber terminal boxes act as central distribution points, enabling technicians to efficiently organize incoming feeder cables and route them to individual user lines. They are ideal for apartment complexes, office buildings, and multi-dwelling units (MDUs) where multiple users require simultaneous high-speed internet, TV, and voice services.
Key benefits include ease of maintenance, compatibility with single-mode and multi-mode fibers, and compliance with industry standards such as Telcordia GR-771. Their user-friendly design helps reduce deployment time and costs for installers and ISPs, making them a cost-effective, future-proof choice for modern fiber infrastructure.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
Hot Tags: fiber optic cable terminal box, China fiber optic cable terminal box manufacturers, suppliers, factory
