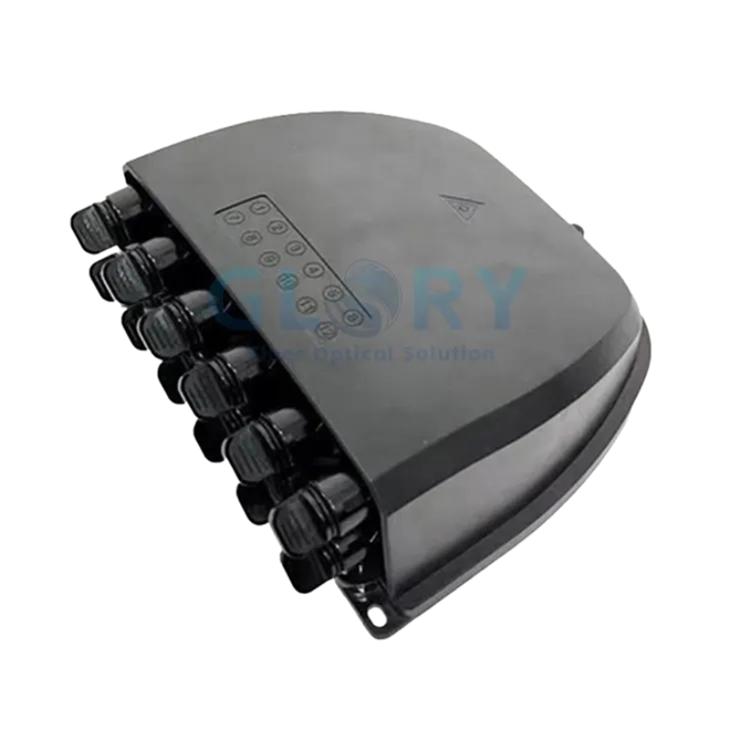

12 ports Pre-connectorized FAT Fiber Access Termination Box
The GL-FTB-12C is a pre-connectorized termination box equipped with 12 waterproof SC adapters. The box body is constructed from PC+ABS, or can be made from alternative materials based on customer requirements. It features an IP65 waterproof rating.

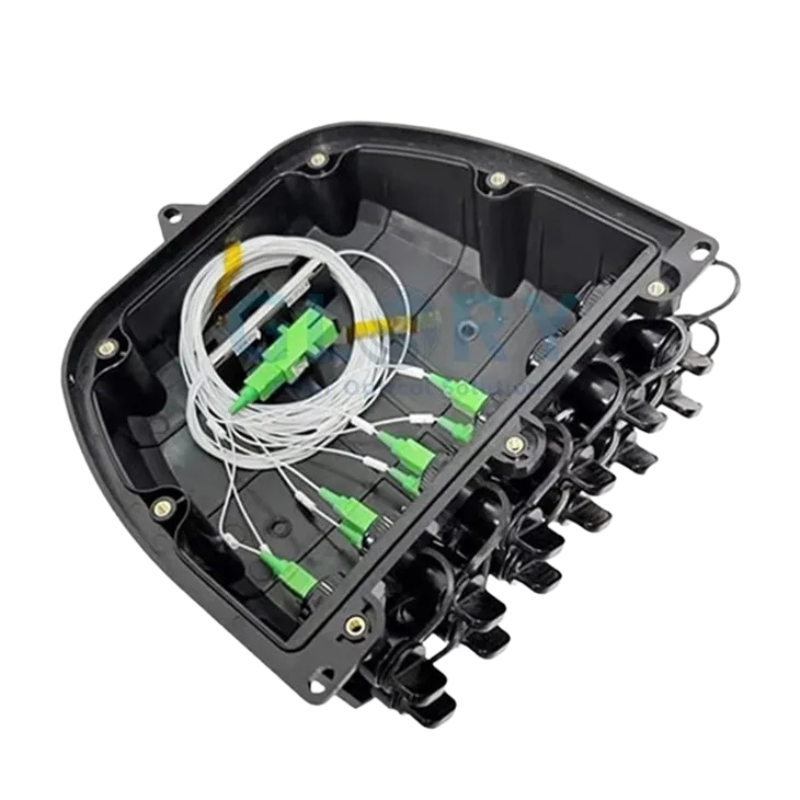

This FAT-type fiber termination box can accommodate an internal 1x4, 1x8, or 1x9 blockless PLC splitter. Externally, it connects using pigtail or patch cord waterproof drop cables. Installation options include aerial or pole mounting, facilitated by an integrated storage bracket.
Termination boxes in this pre-connectorized series can be designed with different fiber core counts according to specific requirements.
Product Details:
|
Model |
GL-FTB-12C |
Color |
Black |
|
Splice Capacity |
4F splice |
Protection Level |
IP65 Indoor/Outdoor |
|
Material |
PC+ABS |
Flame retardant performance |
Non-flame retardant |
|

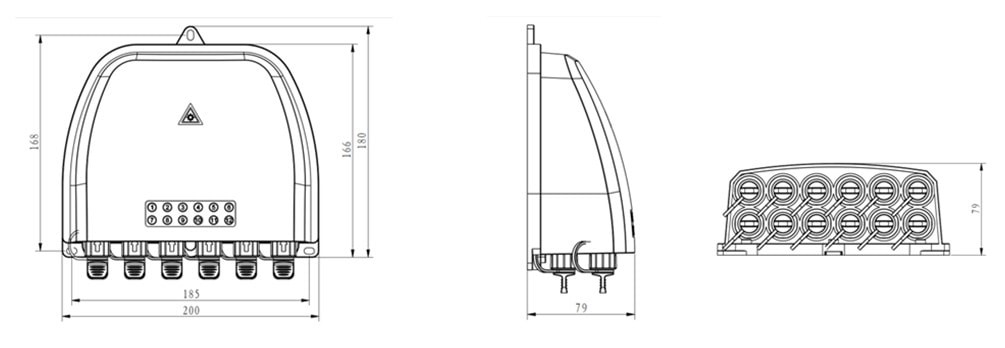

Dimension (LxWxD) |
200x180x79mm |
Suitable Splitter |
2 pcs 1x4, 1 pcs 1x8, 1 pcs 1x9 blockless PLC Splitter |
|
Input Cable Port |
1/2 |
Output Adapter |
12 pcs Mini SC waterproof adapters |
|
Installation Method |
Wall, Pole mounted |
Insertion loss |
≤0.2dB(1310nm & 1550nm) |
|
Environmental requirement |
|
|
Working temperature |
-40℃～+85℃ |
|
Relative humidity |
≤85%(+30℃) |
|
Atmospheric pressure |
70KPa～106Kpa |
|
Main technical parameter |
|
|
Insertion loss |
≤0.2dB |
|
UPC return loss |
≥50dB |
|
APC return loss |
≥60dB |
|
Insulation resistance |
≥2×104 MΩ/500V |
|
Voltage resistance |
≥3000V(DC)/min |
Features:
• Plug-and-play, pre-connected household cable instead of fusion splicing; no need to open the box.
• Fast insertion secures and seals the optical cable outside the connector box for quick installation.
• Secures feeder cable and drop cable; provides fiber splicing, fixation, and storage; functions as a distribution point, etc.
• Cables, pigtails, and patch cords run through separate dedicated paths without interfering with each other. Features micro PLC splitter installation for easy maintenance.
• Supports various installation methods: pole-mounted, hung on walls, or suspended from cables.
• The termination box can be installed either wall-mounted or pole-mounted, suitable for both indoor and outdoor use.
