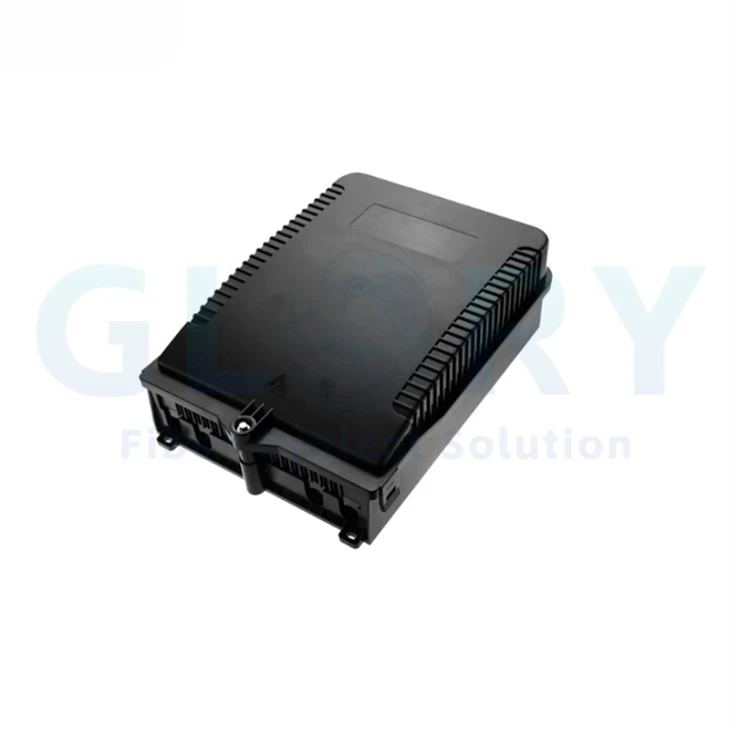

32-Core FTTx Distribution Box

Send Inquiry
32-Core FTTx Distribution Box
Details
The FTTx distribution box is an ABS enclosure listed for 32-core capacity, IP65 protection, a black housing and −25°C to +60°C operation. It organizes and protects feeder-to-drop fiber distribution at wall- or pole-mounted FTTH/FTTx access points; the adapter field, splice layout, cable entries and optional loaded components must be defined in the approved project drawing.
Fiber Capacity: 32 cores
Protection: IP65 listed
Housing: Black ABS
Mounting: Wall or pole
Category
Fiber Optic Termination Box
Share to
Description

FTTx Distribution Box Product Overview

This FTTx distribution box is positioned at a managed access-network node where an incoming feeder or distribution cable must be fixed, organized and routed toward downstream drop connections. The enclosure protects the internal fiber-management area and provides a service point for FTTH, FTTB and other FTTx layouts.

The published 32-core capacity describes the number of fibers the enclosure is intended to manage; it does not establish 32 adapter ports, 32 splices or a 1×32 splitter configuration. Those quantities remain separate order controls and should appear on the approved port map and internal BOM.

Published Base Data

32-Core ABS Outdoor Enclosure

  • Product name: FTTx distribution box
  • Application: FTTx access networks
  • Fiber capacity: 32 cores
  • Ingress protection: IP65 listed
  • Material and color: black ABS
  • Operating temperature: −25°C to +60°C
  • Installation: wall-mounted or pole-mounted
FTTx distribution box product view showing the enclosure housing

Enclosure Product View

Original source-page image retained without changing the enclosure, openings or internal structure.

FTTx fiber distribution box enclosure and mounting detail

Housing and Mounting Detail

Use the product drawing-not the image alone-to approve brackets, fasteners and installation clearances.

FTTx distribution box product detail for project configuration review

Project Configuration View

Confirm the port map, cable entries, internal tray and loaded components against the ordered unit.

32-Core FTTx Distribution Box: Six Engineering and Procurement Advantages

Capacity Control

32-Core Fiber Management Capacity

The product summary identifies a 32-core capacity for feeder-to-drop organization at an FTTx access point. This provides a defined fiber-management ceiling for route planning while keeping capacity separate from adapter ports and splice positions. The approved drawing must state how the 32 fibers are allocated.

Ingress Boundary

IP65 Listed for Exposed Access Nodes

IP65 is the protection grade published for this enclosure, giving outdoor planners a stated dust and water-jet boundary instead of relying on an indoor box. The rating does not imply immersion protection; cable glands, unused-port plugs and the closed enclosure must match the tested configuration.

Housing BOM

Black ABS Enclosure

The base product is listed with an ABS housing in black, defining the material and color for sample comparison and repeat-order inspection. No flame rating, IK rating or exact UV test is published, so projects requiring those properties should add documentary evidence to the RFQ rather than treating them as default.

Site Installation

Wall- and Pole-Mounted Deployment

Two installation methods are confirmed: wall mounting and pole mounting. One enclosure platform can therefore be reviewed for façade, compound-wall and utility-pole nodes, reducing the need to source unrelated housings. Bracket type, strap material, fastener size and installation clearance remain drawing-controlled accessories.

Fiber Handling

Bend and Strain Management Features

The source page describes internal bend-radius limiters and strain-relief mechanisms intended to protect fibers during routing and service. This is more useful than an empty shell with no routing control, but no numeric bend radius or cable-retention force is published. Review the internal tray drawing before approving cable types.

Order Definition

Drawing-Controlled Loaded or Unloaded Supply

The enclosure can be quoted around a project BOM, but the source page does not define a standard adapter, pigtail or PLC splitter package. Buyers can avoid mixed configurations by approving one drawing that identifies unloaded or loaded supply, adapter interface, splice allocation, splitter ratio, labels and packing.

FTTx Distribution Box Product Family and Configuration Options

The original page publishes one descriptive model name rather than an MTC, MTS, MTT or other alphanumeric series. No branch-terminal, PLC-splitter-terminal or TAP-terminal variants are identified, so these families are not presented as standard options.

Configuration Item Published Base Product Project Control Before Order
Product model / name FTTx distribution box; no alphanumeric code published Assign the supplier model and revision on the approved drawing
Fiber capacity 32 cores Define feeder, pass-through, splice, splitter and spare-fiber allocation
Adapter / connector field Not defined as a standard configuration Specify interface, polish, adapter quantity and port numbering
Splice arrangement Fiber-management function described; capacity not published Specify tray count, splice sleeves, storage and maximum splice quantity
PLC splitter No standard splitter ratio or package published Specify no splitter or the exact ratio, package, connectorization and loss limits
Cable entry and output Quantities and diameters not published Provide feeder and drop cable profiles, diameters, gland type and spare-port plugs
Mounting accessories Wall and pole mounting listed Specify bracket, straps, anchors, fasteners and material requirements
Identification and packing No standard label or packaging data published Approve logo, port labels, carton mark, accessory bag and packing list

32-Core FTTx Distribution Box Technical Specifications

The table below includes only the product-specific values that can be retained from the original page's primary product summary. Final dimensions, port map, cable compatibility and loaded BOM must be controlled by an approved drawing and sample.

General Technical Specifications

Parameter Published Specification Engineering / Procurement Boundary
Product name FTTx distribution box No verified alphanumeric product code is published
Product category Fiber optic distribution box FTTH / FTTx access-network enclosure
Application FTTx Final network position depends on the internal BOM and port map
Fiber capacity 32 cores Fiber capacity is not the same as adapter port or splice capacity
Enclosure material ABS No resin grade, flame rating or impact rating is published
Color Black Use the approved sample as the color reference
Ingress protection IP65 listed No immersion claim; sealing depends on the complete configured enclosure
Operating temperature −25°C to +60°C Installation and storage temperature ranges are not published
Mounting method Wall-mounted or pole-mounted Mounting hardware and material are not published

Model and Capacity Table

Published Model Name Fiber Capacity Port Count Dimensions Internal Layers / Trays Optical Loss
FTTx distribution box 32 cores Not published Not retained due to conflicting source data Not published Not retained due to conflicting source data
Specification control: Do not substitute generic SC, FC or LC adapter compatibility for a confirmed port configuration. A 32-core enclosure may be splice-only, adapter-loaded, splitter-loaded or use a mixed internal layout; the ordered BOM must state which arrangement applies.

FTTx Distribution Box Applications and Network Solutions

FTTH Last Mile

32-Core FTTx Distribution Box for FTTH Feeder-to-Drop Nodes

Choosing a box only by subscriber count can confuse fiber capacity with adapter outputs and leave no controlled space for splices or reserves. This enclosure provides a published 32-core management capacity at a wall- or pole-mounted FTTH distribution point between feeder or distribution cable and downstream drop cables. It can be configured around the project's termination method, but no default adapters or PLC splitter are published. Before purchase, confirm the feeder cable, drop-cable quantity, splice allocation, adapter interface, splitter requirement, cable-entry diameters and spare-fiber policy.

PON Split Point

GPON or XGS-PON Distribution with a Project-Specified PLC Splitter

Ordering a "32-core box" does not automatically provide a 1×32 splitter or 32 connectorized subscriber ports, which can create a mismatch between the optical design and enclosure BOM. For a GPON or XGS-PON secondary split point, the box can be evaluated as the protected housing while the exact PLC package, ratio, input/output connectorization and fiber routing are specified separately. Install it at the planned FDB, FAT or building access node. Confirm the loss budget, splitter dimensions, adapter polish, pigtail lengths, port numbering and whether supply is loaded or unloaded.

Outdoor OSP

IP65 Pole-Mounted FTTx Distribution Box for Aerial Routes

An indoor enclosure mounted on an exposed pole can leave the cable-entry and closure system outside its intended environmental boundary. This model is listed with IP65 protection, a black ABS housing and pole mounting for above-ground FTTx nodes. It can organize the transition between an aerial distribution cable and supported subscriber drops where immersion is not expected. Procurement should confirm pole diameter, stainless-steel straps or bracket hardware, gland sizes, unused-port plugs, cable retention, UV documentation, wind-loading requirements and the exact orientation of cable entries before field release.

FTTB / MDU

Wall-Mounted Fiber Distribution for MDU and Building Access

Using several small terminal boxes in a building can fragment splice records and consume wall space, while an oversized cabinet can add unnecessary hardware. A 32-core FTTx distribution box creates one managed wall-mounted point for an MDU, equipment room or protected external wall, with internal routing assigned by the approved port map. It may connect a riser or distribution cable to floor or subscriber drops through splices, adapters or a separately specified splitter. Buyers should confirm wall material, enclosure dimensions, door clearance, fire requirements, adapter count, cable entry direction and future spare capacity.

Selection, Installation and Project Procurement Guidance

Step 1

Separate Capacity, Ports and Splices

Start with the published 32-core fiber capacity, then create separate fields for active adapter ports, fusion splices, splitter outputs and stored spare fibers. Do not use one number for all four functions.

Step 2

Approve the Internal BOM

Specify whether the box is unloaded, splice-only, adapter-loaded or splitter-loaded. List trays, adapters, pigtails, splice sleeves, PLC splitter, cable clamps, glands and port plugs as individual BOM items.

Step 3

Match the Mounting Site

Choose wall or pole mounting and provide the site's substrate or pole diameter. Confirm bracket dimensions, strap or anchor materials, cable-entry orientation, working clearance and technician access before approving the drawing.

Step 4

Keep IP65 Within Its Boundary

Apply IP65 to the complete closed configuration with compatible glands and sealed unused ports. For handholes, flood-prone locations or continuous immersion risk, select an enclosure with a separately verified higher ingress rating.

Ordering Configuration Checklist

RFQ Field Information to Provide Why It Must Be Confirmed
Product identity Supplier model, drawing number and revision The source page publishes only a descriptive model name
Quantity and stage Sample, pilot, first batch or repeat order Controls drawing, sample and packing approval
Fiber allocation Feeder, pass-through, spliced, connected and spare fibers Prevents 32-core capacity from being treated as 32 active ports
Adapter field Connector type, polish, simplex/duplex format, quantity and numbering Controls mating compatibility and port map
PLC splitter None or exact ratio, package, wavelength, pigtails and acceptance limits No standard splitter configuration is published
Cable compatibility Feeder and drop cable construction, profile, diameter and strength member Controls glands, clamps, sealing and strain relief
Fiber management Tray quantity, splice count, sleeve size and storage requirement Controls internal fit and bend management
Environment Exposure, required IP evidence and −25°C to +60°C suitability Keeps the published operating range and IP65 claim within project conditions
Mounting Wall substrate or pole diameter, bracket and fastener material Hardware is not published on the source page
Identification Logo, port labels, warning label, serial number and carton mark Supports site mapping and batch traceability
Documents Datasheet, dimensioned drawing, BOM, port map and required test records Creates measurable acceptance criteria before production
Packaging Accessory bag, individual protection, carton quantity and packing list Prevents missing mounting or internal components at site

OEM FTTx Distribution Box and Project Configuration

Glory Optical's current OEM/ODM page lists fiber boxes among its configurable product families and supports drawing-based product definition. For this 32-core FTTx distribution box, customization should be handled as controlled engineering fields rather than a general "custom" claim.

Enclosure

Housing and Mounting Review

Confirm the ABS housing, black color, overall dimensions, gasket, hinges, locking method, wall bracket, pole hardware, gland positions and spare-port plugs. Any change affecting IP65 performance should be reviewed and documented for the ordered configuration.

Optical BOM

Loaded Component Definition

Define trays, adapters, pigtails, splice sleeves and any PLC splitter as separate BOM lines. Connector insertion loss, return loss and splitter loss are not enclosure values and should be specified only for the components actually installed.

Batch Control

Sample, Labels and Packaging

Approve the sample against the drawing, port map and BOM before batch release. Label content, port numbering, logo, accessory bags, carton marks and packing lists can then be controlled under the same revision for repeat project supply.

Recommended approval path: application and cable data → configured drawing and BOM → sample review → fit and sealing checks → optical checks for loaded components → label and packing approval → batch production.

Why Glory Optical for FTTx Distribution Box Projects

Glory Optical Communication is a Ningbo-based manufacturer of passive fiber optic infrastructure for FTTH, FTTx, ODN and related projects. Its current company page states that the business was founded in 2008 and operates a 20,000 m² facility covering R&D, molding, assembly and testing, with OEM/ODM project support.

Housing Production

Mold and Enclosure Development

The company page describes tooling and mold development for enclosure geometry, gasket position, port cutouts and structural details. For this box, a drawing can control the housing revision, cable entries, sealing parts and mounting interfaces before sample production.

Loaded Assembly

Fiber Box and Internal BOM Assembly

Glory states that fiber boxes, loaded FDB assemblies, splice trays, adapters, pigtails and cable-management parts are assembled according to a confirmed drawing and port map. This supports unloaded, splice-only or project-loaded supply without treating them as the same configuration.

Applicable Checks

Optical Testing for Loaded Components

The company page states that connectorized products and cable assemblies can be checked for insertion loss, return loss and end-face condition where applicable. For a loaded distribution box, the RFQ should define the test boundary, wavelength, limits and report format.



Glory Support

From sample verification to project configuration

Confirm the physical interface and cable code before bulk production, then lock the approved configuration into drawings and order codes.

3-Year Service Policy

Defined return, replacement and repair support is available according to the applicable warranty terms and confirmed order documentation.

OEM/ODM Configuration

Port count, cable length, splitter structure, mounting accessories, labeling and packaging can be configured for the project.

Sample & Drawing Approval

Sample evaluation and approved drawings help confirm interface fit, sealing and cable compatibility before volume deployment
