Product Introduction
The box integrates cable entry and fixing, fusion-splice protection, fiber routing, slack storage and adapter termination. Instead of placing loose splices and pigtails inside a general cabinet, installers can organize each stage of the connection inside a dedicated enclosure.

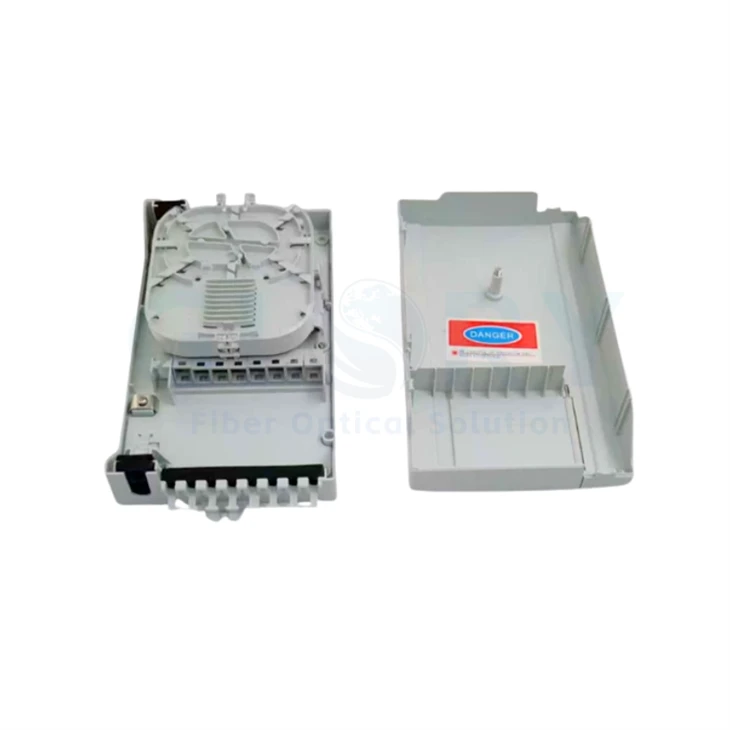

The internal flip-up distribution panel separates the adapter area from the lower cable and splice-management space. This layout gives technicians clearer access during installation, testing and later service work while helping keep pigtails, patch cords and feeder fibers on defined routing paths.
The compact 8-core design is suitable for low-density access points where a larger fiber distribution box would occupy unnecessary space. Depending on the approved configuration, the box can be supplied for SC or LC adapter installation and may accommodate a compatible compact PLC splitter arrangement.
Product Features
The design focuses on compact installation, organized fiber handling and straightforward access for field technicians.
Integrated Fiber Management

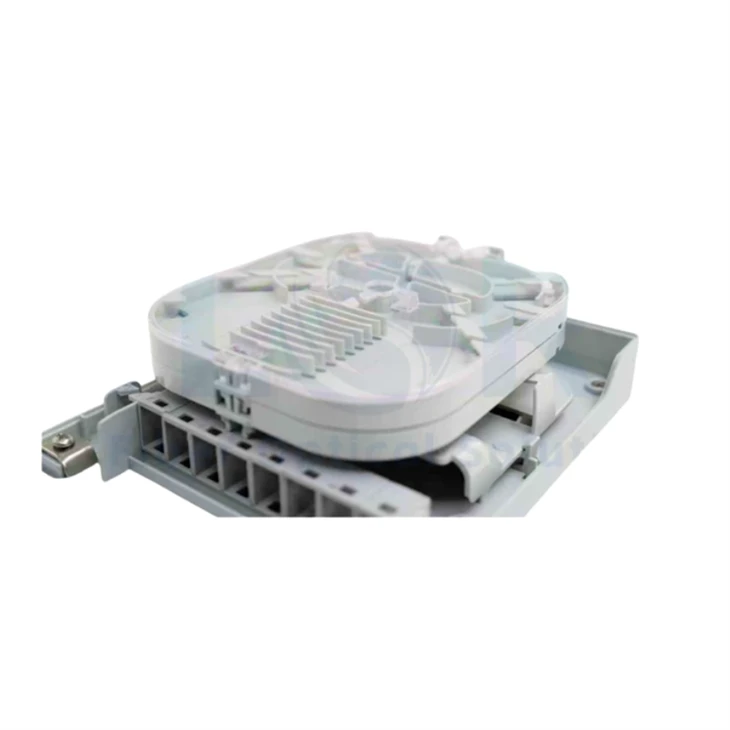

Cable fixing, fusion splicing, protected splice storage, pigtail routing and distribution are arranged within one enclosure.
Separated Routing Paths
Feeder fibers, pigtails and outgoing connections can be routed through dedicated areas to reduce crossing, pinching and maintenance confusion.

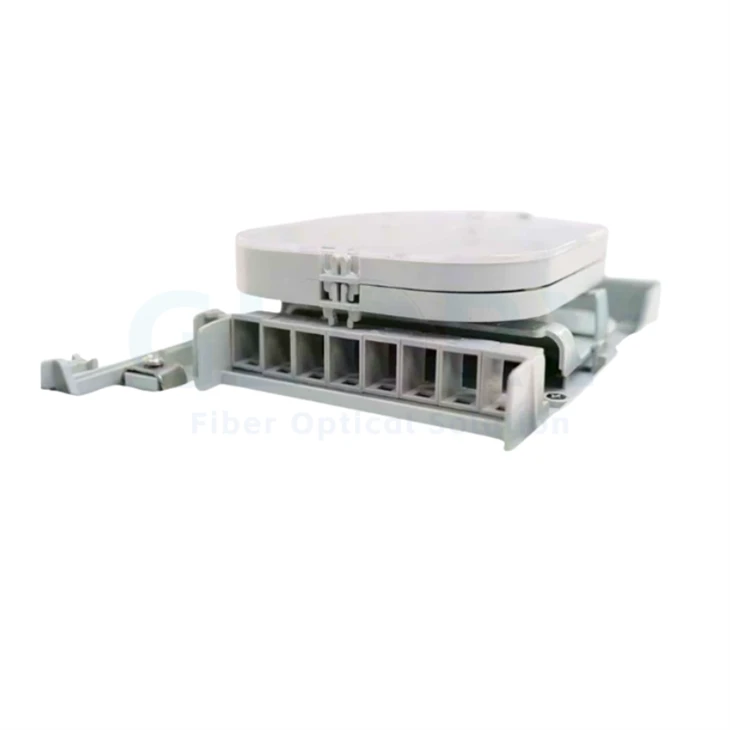

Flip-Up Distribution Panel

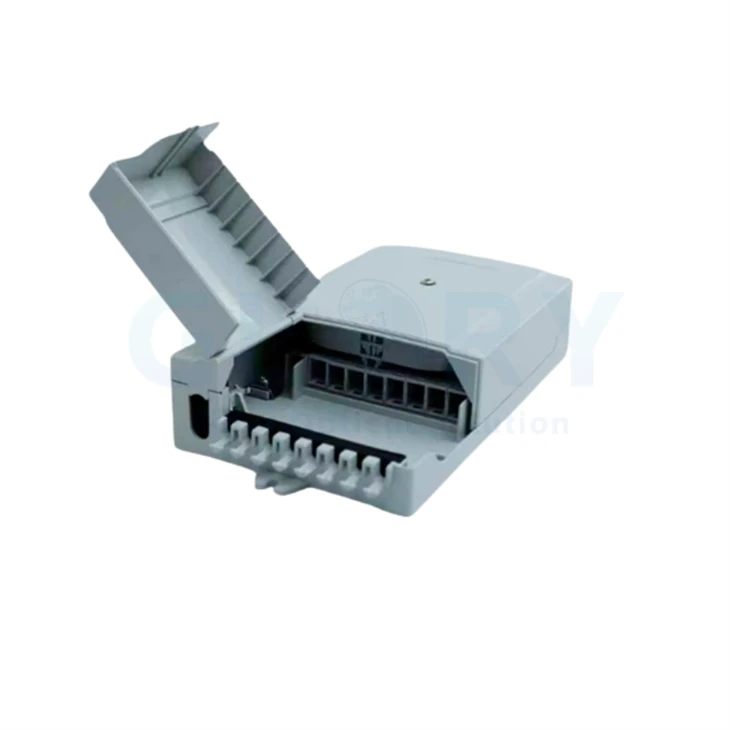

The internal panel lifts to expose the cable-entry and storage area, making splicing and later inspection easier without dismantling the entire box.
Flexible Port Configuration
The box supports project-specific SC or LC adapter arrangements. Connector polish, loaded quantity and pigtail specification can be confirmed before production.
Compact 8-Core Footprint
The 235 × 126 × 52 mm housing is suitable for corridors, utility rooms, cabinets and other locations with limited installation space.
PC+ABS IP54 Housing
The enclosed PC+ABS body provides practical resistance to dust, splashing water and aging for indoor and sheltered outdoor service conditions.
Installation Guide
A clear installation sequence protects the fibers from mechanical stress and keeps the box easy to inspect after commissioning.
- Confirm the mounting position.Select a flat, accessible surface with sufficient clearance to open the cover and flip the internal panel.
- Mark and drill the fixing holes.Use the 225 mm mounting-hole spacing as the reference. The original installation guidance specifies expansion bolts sized Φ7.5 × 40 mm.
- Secure the enclosure.Align the box with the drilled holes and tighten the mounting hardware without distorting the plastic housing.
- Introduce and clamp the incoming cable.Complete cable fixing and strain relief before exposing or routing the optical fibers.
- Prepare, splice and store fibers.Route fibers with smooth bends, protect each fusion splice and place the sleeves correctly in the splice holder.
- Connect and label service ports.Route pigtails to the selected adapters or splitter, connect outgoing fibers, label each port and complete optical testing before closing the box.
Applications
The GL-B25-8A is intended for small-capacity FTTx termination and distribution locations that require organized access without a large enclosure.
Building Entry and Drop Distribution
Terminate an incoming access cable and distribute fibers toward individual subscriber drop cables at a protected building entry point.
Floor or Corridor Distribution
Use the box in apartment buildings, offices or mixed-use properties to manage a small number of service fibers near the users being served.
Compact Splice and Patch Point
Create a wall-mounted termination point for testing, patching and maintenance where installing a rack or larger ODF is unnecessary.
Protected Outdoor Access Node
Install on a covered exterior wall or inside a roadside cabinet when the location is protected from flooding and continuous direct weather exposure.
Small Fiber Branch Connection
Organize splice and adapter connections for low-count fiber links serving security cameras, remote equipment rooms or campus branch networks.
Pre-Loaded FTTx Kit
Configure the enclosure with specified adapters, pigtails, labels and compatible splitter components to reduce field preparation time.
Environmental Use Boundary
Because the stated protection level is IP54, this model is better suited to indoor or sheltered outdoor positions than to underground handholes, flood-prone chambers or continuously exposed aerial sites. Higher-sealing enclosures should be selected for harsher outside-plant conditions.
FAQ
Q: What is the GL-B25-8A used for?
A: It is a compact FTTx termination and distribution point used to secure an incoming fiber cable, protect fusion splices, store service slack and present managed fiber connections toward downstream drop cables.
Q: How many fibers can the box manage?
A: The stated maximum capacity is eight fibers. The final loaded quantity depends on the selected adapter arrangement, pigtail routing, splice sleeve placement and any optional splitter module.
Q: Is it suitable for direct outdoor exposure?
A: The enclosure is IP54. It is better suited to indoor or sheltered outdoor locations than to direct rain, flooding, underground chambers or exposed aerial sites. For harsher OSP positions, select a higher-sealing enclosure and request the relevant ingress-protection evidence.
Q: Can it be configured with SC/APC adapters?
A: Yes, subject to the selected cassette or adapter panel. State SC/APC clearly for the adapters, pigtails, splitter outputs and patch cords so all interfaces use the same polish.
Q: Can LC adapters be used?
A: The original product description identifies SC and LC cassette-style adapter support. The exact body style and number of usable positions should be confirmed against the production panel drawing.
Q: Can a PLC splitter be installed?
A: A compact compatible PLC splitter configuration may be integrated, but the split ratio alone is not enough. Confirm the splitter package, dimensions, connectorization, pigtail length and internal routing before ordering.
Q: Can the incoming feeder pass through the box without being fully cut?
A: The enclosure includes a feeder access arrangement intended to simplify cable placement. For a true mid-span or uncut-cable application, provide the cable construction and required fiber-access method so the routing and strain-relief arrangement can be checked before production.
Q: What should be included in the RFQ?
A: Include quantity, loaded status, adapter type and polish, pigtail specification, splitter requirement, feeder and drop cable dimensions, mounting method, labels, BOM, required test documents, packaging and delivery terms.
Built for Repeatable Project Configuration
Glory Optical supports enclosure-only, semi-loaded and project-loaded fiber box configurations. OEM/ODM options can cover adapter selection, pigtail routing, port labels, product labeling and packaging after the mechanical and optical BOM is confirmed.
Send the Cable and Port Details Before Requesting Price
For a comparable quotation, provide the quantity, incoming cable OD, number and type of drop cables, SC/LC interface, APC/UPC polish, required pigtails, splitter configuration, mounting method and loaded BOM.
