This Fiber Splitter Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects.
The fiber closure can effectively prevent the optic fibers from the influence of outdoor environment. Dome-to-base design; the splice trays can hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.

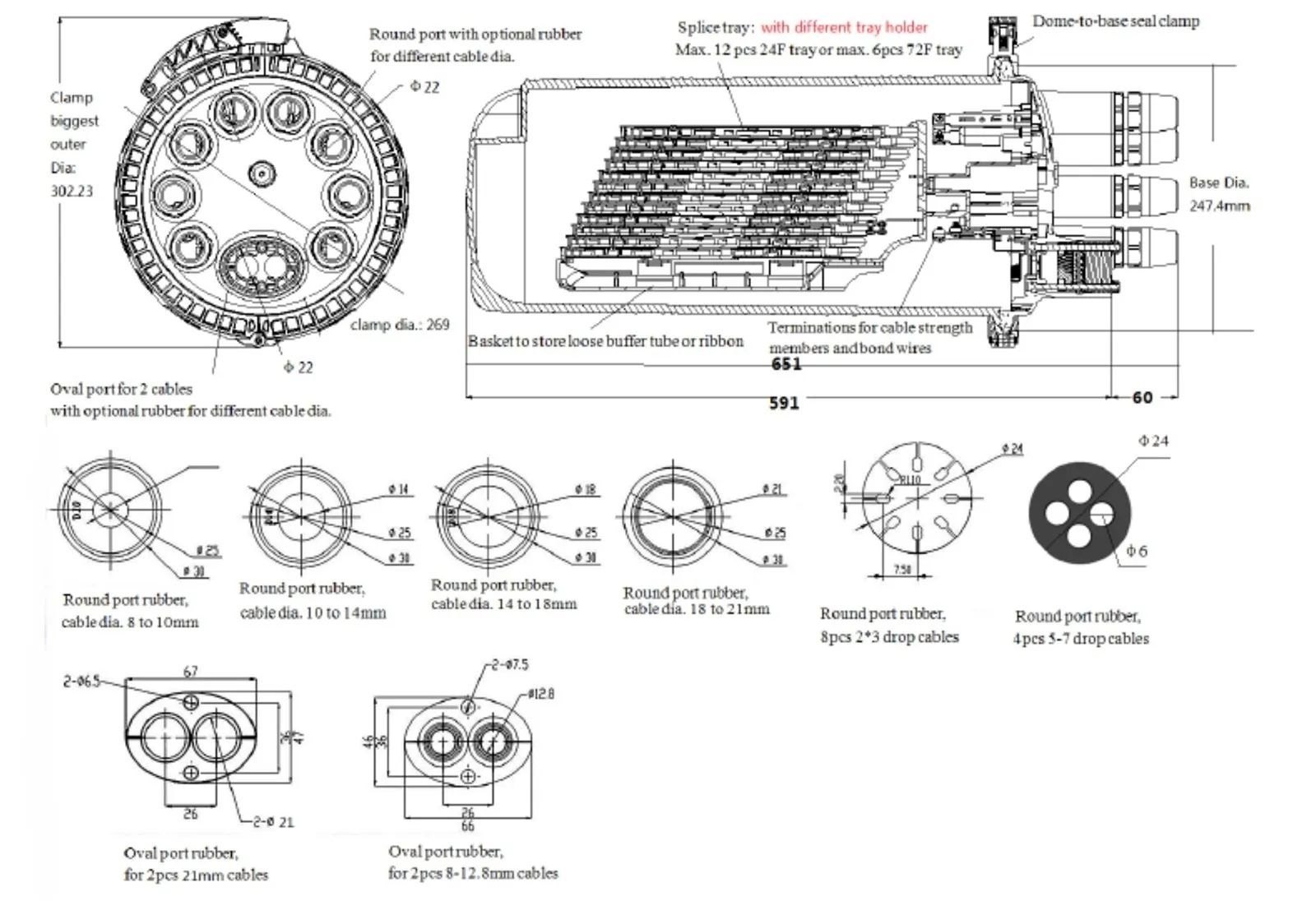

Exterior Structure Diagram
Specifications:
|
Item Name |
Fiber Splitter Closure GL-M10AX-288C |
|
Size (mm) |
651 X Φ302.2 |
|
Raw material |
Dome, Base: modified PP, Clamp：Nylon+GF, Tray: ABS Metal parts：Stainless steel |
|
Cable ports |
1 oval port: available for 2 cables, with optional rubber for difference cable dia. 8 round ports: with optional seal rubber for different cable dia. |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
Single fiber 288/432 core |
|
Capacity of single tray |
Single fiber 24/72 core |
|
Max Qty. tray assembly |
12 pcs of 24F tray, 6 pcs of 72F tray |
|
Application |
Aerial/ Wall/Pole mounting |
|
Base Sealing Method |
Mechanical |

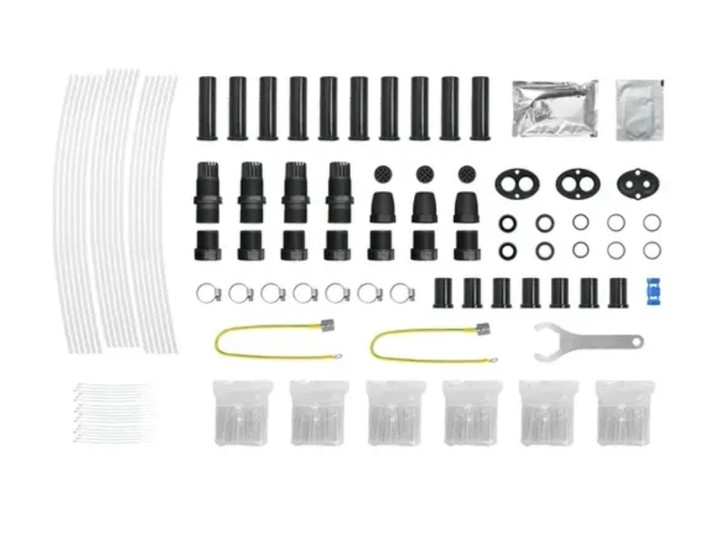

The accessories of fiber splitter closure:
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Temperature recycle: under -40℃~+65℃,with 60(+5)Kpa inner pressure, in 10 cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability：25 years

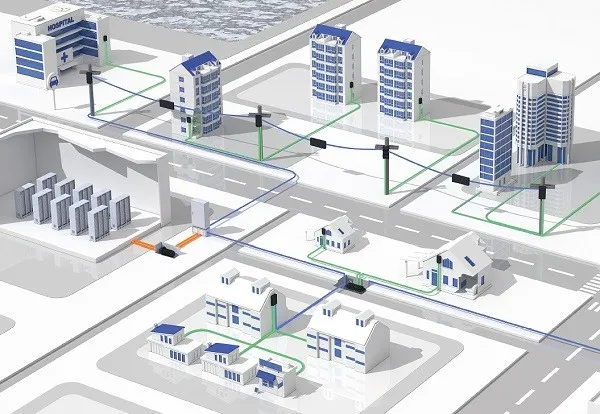

Application:
This fiber splitter closure is ideal for overhead, pipeline, direct burial, and branch connections of various structured optical fibers, offering flexibility for different installation scenarios.
