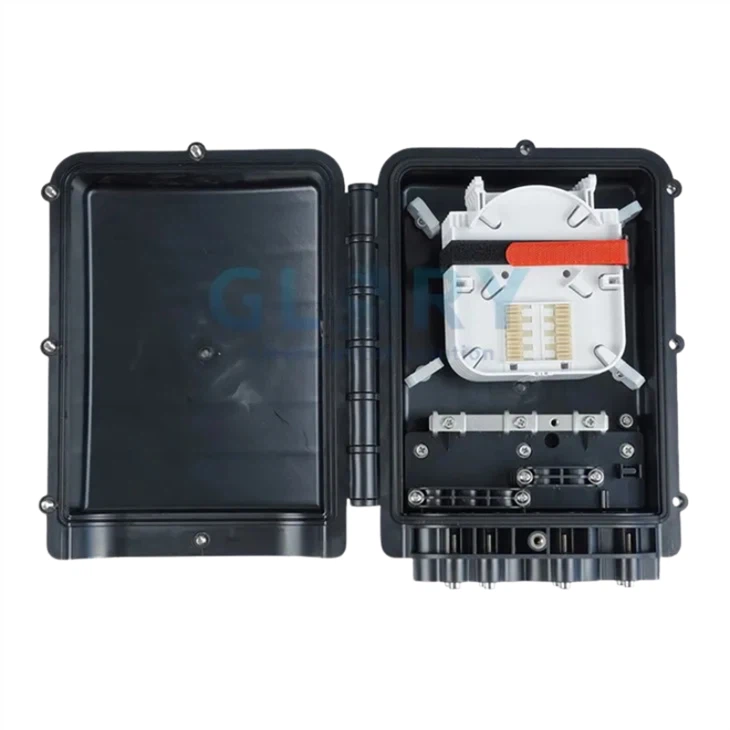

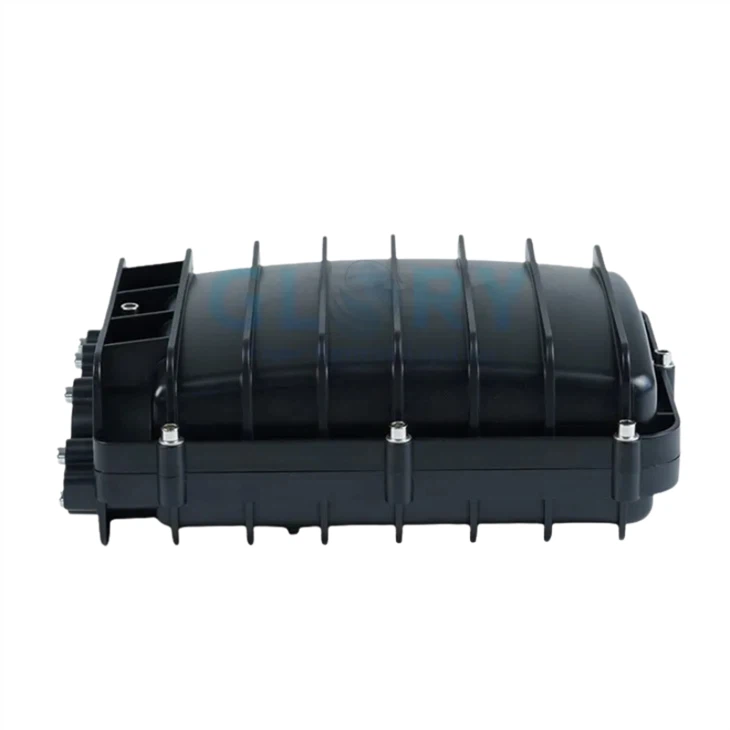

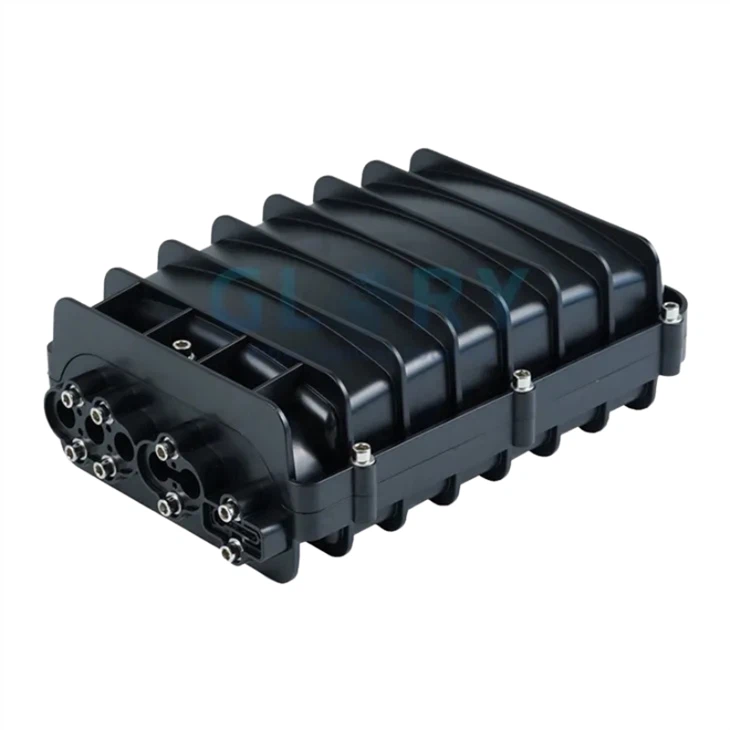

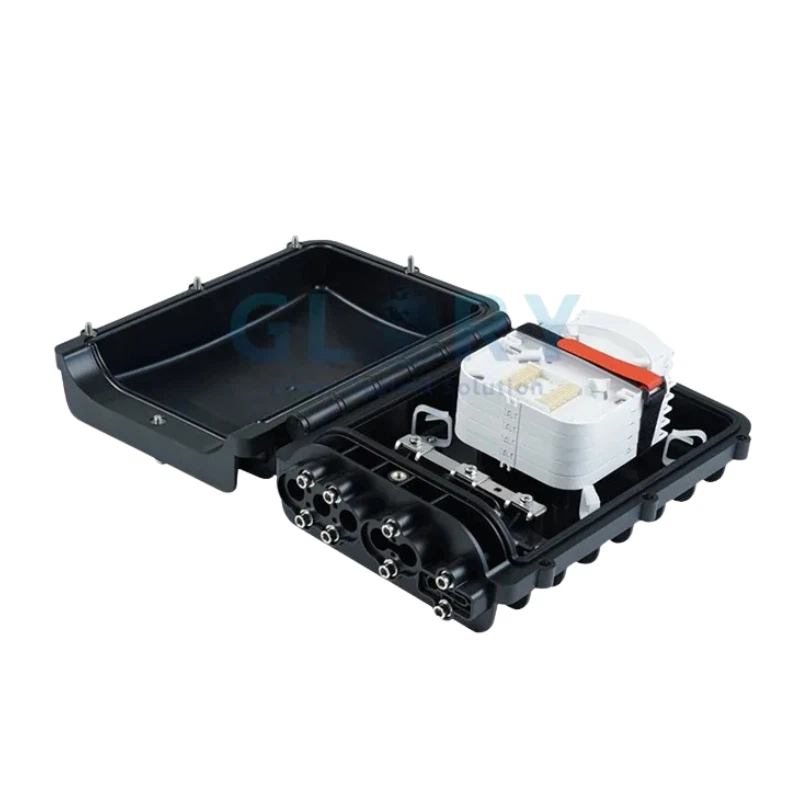

GL-8201 Fiber Optic Joint Enclosure Box is a multifunctional fiber splice equipment which is designed for fiber connection, branching and terminal connection.
This Joint Enclosure Box has three single fiber ports, one fiber port for uncut cable usage, one testing port (Φ6mm) and four pigtail outlets (Φ2.0mm).
It is suitable for wall-mounting, aerial, pole-mounting, especially used for FTTH fiber distribution. We are always in pursue of doing research and developing the telecommunication connection equipment.
Our Fiber Optic Joint Enclosure is your reliable choice to guarantee the quality of information transform.
Specifications
|
Size H×W×D(mm) |
300×220×100 |
Max capacity (single fiber) |
60 |
|
Weight(kg) |
2.4～2.7 |
Airproof style |
Mechanical |
|
Entrances |
5 |
Capacity of tray |
12 |
|
Suitable cable diameter |
Ф8～ф15 |
||
|
Number of trays |
5 |
Main Technical Data
• Environment temperature:-40℃～+55℃
• Max capacity:60 cores(single fibers)
• Range of the suitable diameter of the cables:ф8 mm～ф15mm
• Airproof performance: airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when placed under normal temperature water.
• Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation.
• Insulation resistance: ≥2×104MΩ
• Voltage-resistance strength: under the effect of 15KVDC/1min, non-puncture, no arc-over

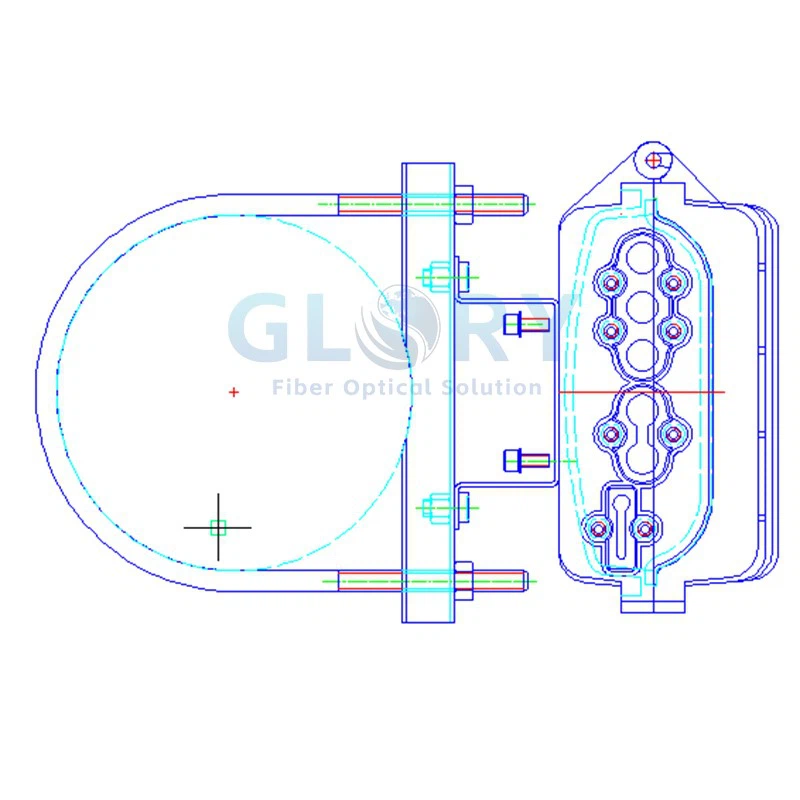

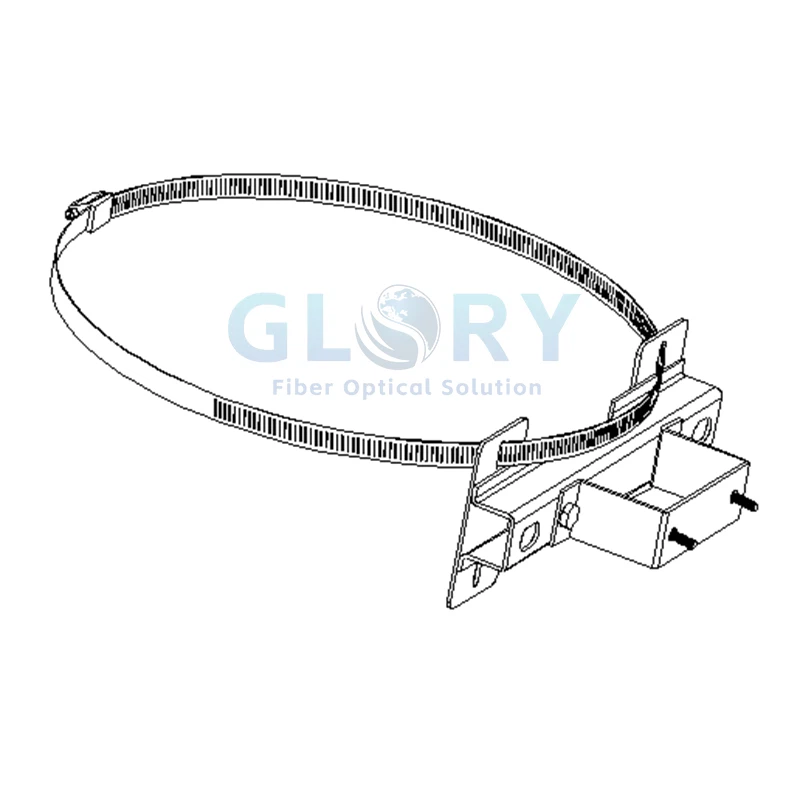

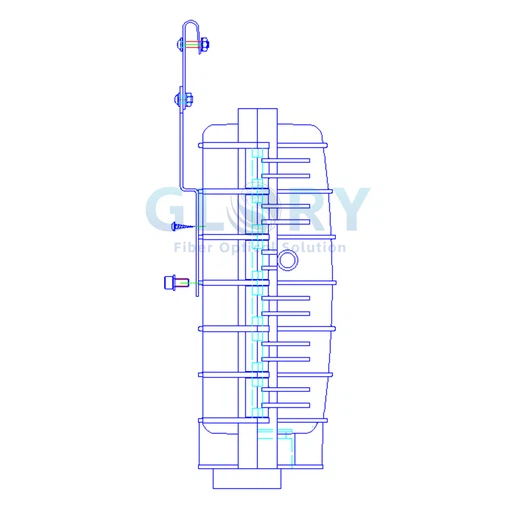

Installation Method for GL-8201 Fiber Optic Joint Enclosure Box
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
