The Four Failure Modes This Closure Was Built Around

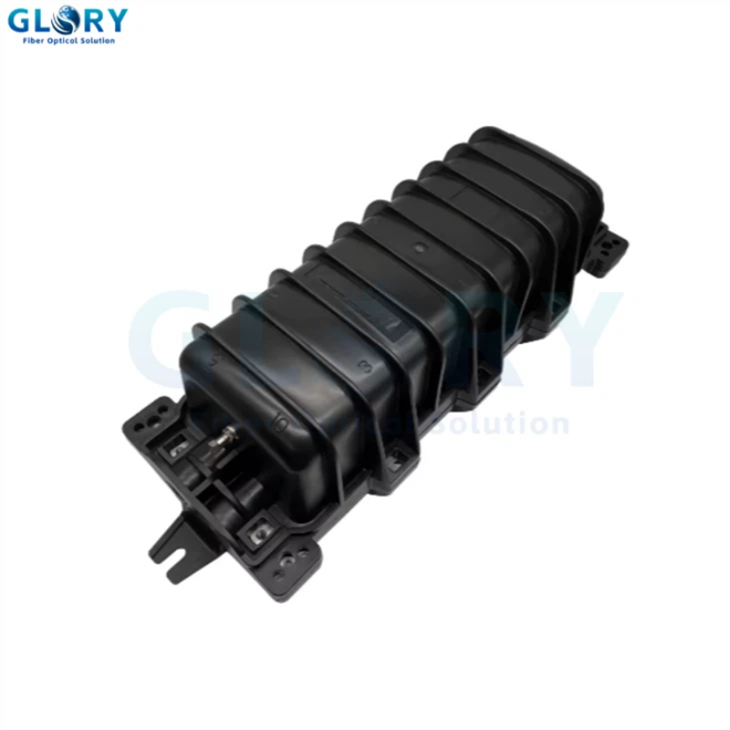

Designed around the four failure modes that cause real-world fiber network outages. The GL-H288 is a 144/288-core inline horizontal splice closure built for mid-span trunk splicing on FTTH feeder routes, 5G fronthaul backbones, and long-haul cable routes where a cable runs continuously through the splice point. MADIDI tool-free re-entry, dual-layer IP68 sealing, and polycarbonate housing that survives −40°C without embrittlement.
The Four Field Failures This Closure Was Built Around
After analyzing fiber outage root causes across FTTH and backbone deployments in Southeast Asia, Europe, and Latin America, four failure modes account for the majority of mid-route outages. Every design decision in the GL-H series maps directly to one of them.
Seal failure on re-entry - IP rating lost at first maintenance
Closures not designed for repeated opening fail their IP68 rating after the first maintenance visit. Bolt-sealed and heat-shrink designs are one-shot: once opened, the original seal cannot be restored without specialist tools and replacement gaskets. The GL-H288 MADIDI mechanism is rated for repeated open/reseal without seal replacement - critical for live networks requiring capacity additions and fault repairs over a 20-year service life.
Moisture infiltration through undersized cable port gaskets
Wrong grommet sizing - or a single-diameter port that can't accommodate the full range of cable diameters on-route - creates micro-gaps at the entry port that bypass the closure's IP68 body seal. The GL-H288 supports cable diameters from Ø8mm to Ø23mm across all ports with per-port rubber compression seals, covering everything from 2-core FTTH drop cables to multi-tube 288F backbone trunks without requiring non-standard inserts.
Capacity shortfall forcing full re-splice within 3 years
Networks planned for 144 cores at deployment routinely reach capacity within three years as subscriber density grows. Specifying an undersized closure forces a full re-splice and truck roll - the highest-cost outcome in outside plant maintenance. The GL-H288 supports up to 288 single-core fibers across 12 booklet-style trays of 24 fibers each, with the highest per-unit capacity in the inline horizontal form factor at this price tier.
Slow field installation driving project cost overruns
Bolt-sealed designs require torque wrenches, sealant compounds, and two-person installation teams. In a flooded manhole under time pressure, a 30-minute closure job becomes a 90-minute liability. The GL-H288 MADIDI mechanism supports tool-free closure without torque measurement - operator feel confirms seating. Documented installation time reduction: 40–60% versus bolted-seal alternatives in controlled field trials.
What the GL-H288 Actually Delivers - And Why It Matters
Each specification below maps to a real operational outcome. We explain the engineering logic behind every parameter, not just the numbers - so buyers can assess suitability for specific deployment environments and network topologies.
MADIDI Tool-Free Mechanism - Re-Entry Certified for 20+ Year Service Life
The MADIDI (Mechanical Automatic Double-Layer Internal Deployment Integration) mechanism is the closure's central engineering differentiator. Unlike bolt-sealed closures that require calibrated torque tools for sealing and risk over-tightening or under-tightening the body gasket, the MADIDI system engages even compression around the full perimeter seal through a mechanical latch sequence. Operator feedback - the physical resistance of the mechanism - confirms correct seating without torque measurement.
The design supports repeated open/reseal across the entire service life of the network. Field evidence from FTTH deployments shows that a typical backbone feeder route requires 2–5 re-entries over 20 years for capacity additions, fault repairs, and network upgrades. The MADIDI mechanism's seals are rated to maintain IP68 performance through this cycle count without component replacement.
Dual-Layer IP68 Sealing - Independent Port and Body Mechanisms
The GL-H288 achieves IP68 through two independent sealing mechanisms, not one. At each cable entry port: rubber compression seals that compress around the cable jacket (Ø8–23mm supported across the full range of distribution and backbone cable diameters). At the closure body: a continuous silicone rubber gasket around the full perimeter of the housing halves. Each mechanism operates independently, meaning damage to one seal does not compromise the other.
IP68 under IEC 60529 means full dust-tight protection and continuous submersion capability beyond 1 meter depth. For flooded manholes, coastal deployments, direct-burial routes with seasonal high water tables, and tropical deployments with driving rain, this is the minimum specification that provides real-world protection. IP65 and IP67 are insufficient for sustained submersion in permanently wet underground installations.

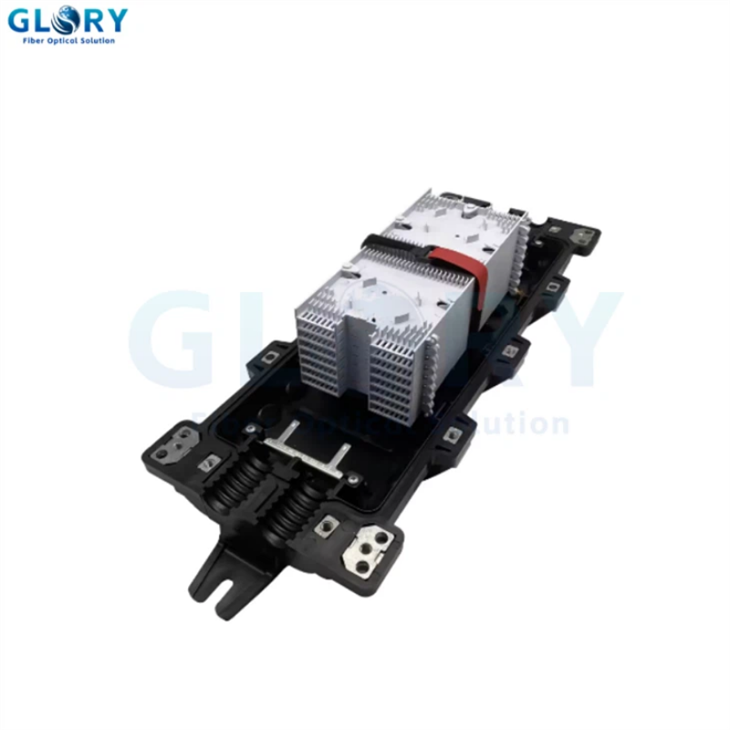

288-Core Maximum Capacity - 12 Trays × 24 Fibers, Booklet Configuration

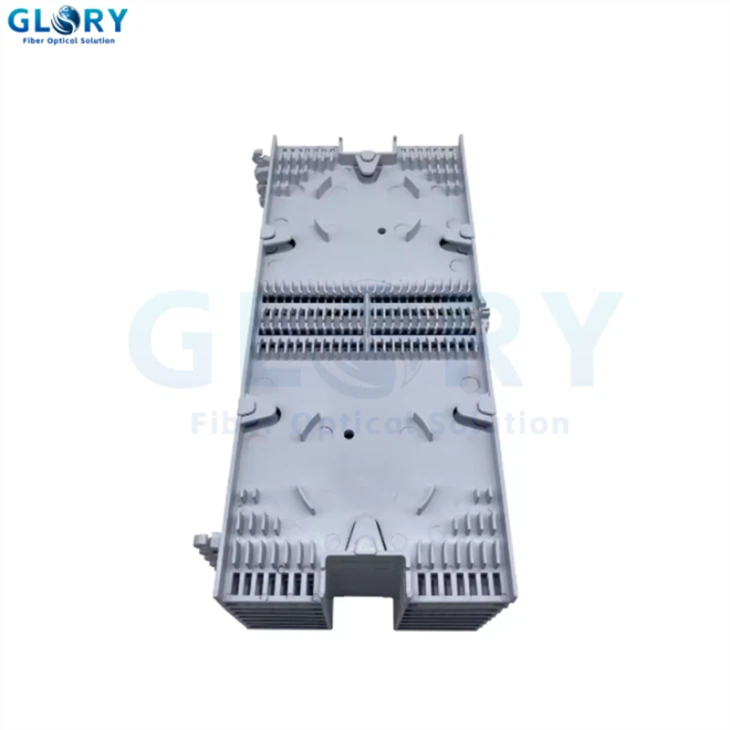

The GL-H288 supports up to twelve splice trays in a booklet-style stacking arrangement, each accommodating 24 single-core fiber splices. This yields a maximum capacity of 288 cores - the highest available in an inline horizontal closure at this form factor and price tier. Comparable inline closures at this price tier typically cap at 144 cores.
The booklet tray configuration allows individual trays to be opened independently without disturbing adjacent trays - critical for fault isolation during maintenance on a live network. The booklet geometry also maintains a minimum bend radius of ≥40mm throughout the tray stack, preventing micro-bending-induced signal loss as fibers route between trays. Networks can be deployed with fewer trays initially and expanded to full 288-core capacity by adding trays without re-splicing existing fibers.
2-In / 2-Out Symmetric Inline Configuration - True Through-Route Architecture
The GL-H288 provides two cable inlet ports and two cable outlet ports in a symmetric inline layout - the correct architecture for backbone routes where a cable runs continuously through the splice point. Unlike dome closures with all entries at one end, the inline 2-in/2-out layout allows cable to enter at one end and exit at the other without requiring a 180° bend inside the closure, minimizing installation stress on the cable at the entry point.
Cable diameter compatibility of Ø8–23mm spans the full range from 2-core FTTH drop cables through multi-tube 288F backbone cables - covering a single-SKU solution for mixed-route deployments. Each port operates with independent seal compression, so cables of different diameters on the same route can be accommodated in the same closure without non-standard adapter inserts.
Full Specification - GL-H288 Horizontal Fiber Optic Splice Closure
All parameters are manufacturer-tested and verified against production batches. Contact our technical team to confirm suitability for specific cable types, deployment environments, or custom port configurations.
| Parameter | Specification | Notes / Operational relevance |
|---|---|---|
| Model | GL-H288 | Horizontal Inline 2-In 2-Out MADIDI Type |
| Configuration | 2 IN / 2 OUT inline | Through-route; cable enters one end, exits other |
| Sealing Mechanism | MADIDI (dual-layer mechanical) | Tool-free; operator-feel seal confirmation |
| Ingress Protection | IP68 (IEC 60529) | Full submersion rated; dust-tight |
| Housing Material | PC (Polycarbonate) | UV stable; −40°C rated; corrosion-resistant |
| Port Sealing | Rubber compression seal, per port | Re-usable; no replacement parts needed on re-entry |
| Body Sealing | Silicone rubber gasket, continuous | Full-perimeter seal; independent of port seals |
| Cable Diameter Range | Ø8 – 23 mm | Drop cables through backbone trunk cables |
| Max Splice Trays | 12 trays (booklet-style) | Individually accessible without disturbing others |
| Fibers per Tray | 24 single-core fibers | Also supports ribbon fiber (adapter kits available) |
| Max Fiber Capacity | 288 single-core fibers | 12 trays × 24; highest in class for inline horizontal |
| Min Bend Radius | ≥ 40 mm | Maintained by internal routing guides; prevents micro-bending loss |
| Operating Temperature | −40°C to +65°C | Arctic-rated housing; tropical-stable seal |
| Storage Temperature | −40°C to +70°C | Sealed storage before installation |
| Compatible Fiber Types | G.652D, G.657A SM; loose tube, ribbon | Vendor-agnostic passive component |
| Installation Methods | Aerial / Duct / Direct burial / Manhole | Single SKU for all outdoor mounting scenarios |
| Re-Entry Capability | Yes - MADIDI reusable seal | Unlimited re-entry; no seal replacement required |
| Applicable Standards | IEC 60529 · IEC 61300-2-42 · RoHS 2.0 | Verified on production batches; test reports on request |
| Warranty | 3 years global | Year 1: return; Year 2: replace; Year 3: repair |
| MOQ | 50 units (standard) · Free samples available | OEM/ODM accepted; lead time 15–20 business days |
How to Install the GL-H288 Horizontal Splice Closure
Installation requires no heat gun, mastic, or specialist sealant compounds. The MADIDI mechanism is designed for field-level installation and re-entry. The standard six-step workflow below applies to all GL-H series horizontal inline closures.
Pre-Installation Planning
Verify cable slack on both incoming routes. For aerial deployments, confirm messenger wire can support the closure weight (GL-H288 approximately 3.2–3.8 kg loaded). For duct installations, verify handhole dimensions allow the inline closure form factor to be positioned correctly. Identify the tray map and labeling scheme before opening the closure - labeling is not possible after sealing.
Cable Preparation - Both Ends
Strip the outer jacket on incoming cables to the correct length per the GL-H drawing - typically 500–700mm from the cable entry point. Reserve adequate fiber slack coiled in the closure for future maintenance. Clean all fiber surfaces and separate buffer tubes cleanly without nicking inner fibers. Label buffer tubes before entry.
Mount Strength Members & Route Cables
Secure cable strength members (aramid yarn or steel central member) to the strain-relief brackets inside the closure. This step is critical - the seal compression depends on the cable being axially fixed. Route cables through the entry port rubber compression seals. Confirm snug fit around each cable jacket diameter.
Perform Fusion Splices & Load Trays
Perform fusion splices and load completed splices into the tray splice holders. Coil excess fiber as 60–100mm loops. Stack trays from bottom up. Confirm each tray is labeled with its splice map before stacking - once the closure is sealed, re-entry requires the OTDR verification step to be repeated from scratch.
Seal via MADIDI Mechanism
Engage the closure body halves and activate the MADIDI latch sequence per the installation diagram. The mechanism provides even pressure distribution without tools - operator resistance feedback confirms seating. Check all port inserts are compressed before finalizing. No torque values to calibrate or measure.
Mount & OTDR Verify Before Backfill
Attach to messenger wire (aerial), duct end caps (pipeline), or position in handhole (underground). Perform an OTDR trace from both ends before backfilling or final fixturing. Confirm all splice losses are within spec. Document the splice sheet with tray map and OTDR trace for future maintenance reference - this is the document that makes re-entry efficient years later.
Where the GL-H288 Inline Closure Performs Best
The 2-in 2-out inline architecture is the correct choice wherever a cable runs continuously through a splice point. These are the deployment scenarios where horizontal inline outperforms dome and every other closure topology.
FTTH / FTTB / FTTC Backbone
Mid-span splice protection on feeder cables between central offices and distribution points. The 288-core capacity handles aggregated trunk cables at major backbone nodes. Single SKU covers duct, aerial, and direct-burial feeder route variants.
5G Fronthaul Backbone Routes
Mid-span splice protection on fronthaul routes connecting BBU pools to distributed radio units. The −40°C lower limit covers rooftop, aerial pole, and exposed cell site deployments. IP68 handles tropical driving rain and temperate flooding in cable manholes.
Long-Haul & Metro Backbone
Standard use case for backbone cable routes where drum lengths require joints at regular intervals. The 2-in 2-out inline layout handles continuous through-routes without the bulge of a dome-style closure at each splice node.
Underground / Direct Burial Routes
IP68 handles soil moisture and periodic flooding in duct-and-manhole and direct-burial routes. Rubber port seals accommodate the diameter variation of real-world cable runs. PC housing resists soil acids and salt content across the full burial depth profile.
CATV / HFC Fiber-Deep Nodes
Fiber-deep HFC rollouts use inline closures at the node where optical fiber transitions to coax distribution. The horizontal inline format suits mid-span points on aerial strand routes where a dome closure's cable-entry geometry creates installation difficulty.
Enterprise & Campus Backbone
Building-to-building backbone runs through manholes, underground conduit, or aerial messenger. IP68 rating handles outdoor spans where termination boxes would fail under sustained moisture exposure. Single closure accommodates both backbone trunk and branch drop in the same installation.
Frequently Asked Questions
Q: What is a horizontal fiber optic splice closure and how is it different from a dome-type closure?
A: A horizontal fiber optic splice closure (also called an inline or through-route closure) is an outdoor enclosure designed to protect fusion splices at points where a fiber cable runs continuously through the splice point - entering one end and exiting the other. The closure houses the splice trays, organizes fiber slack, and provides IP68-rated environmental sealing for the splice zone. A dome-type closure has all cable entries at one end and is designed for branch distribution nodes where multiple cables converge from the same direction. If your network has backbone cable running along a route with joints at regular intervals, you need a horizontal inline closure. If you're connecting a distribution cable to multiple drop cables at an access node, you typically need a dome closure.
Q: What does MADIDI mean and why does it matter for splice closure maintenance?
A: MADIDI refers to the proprietary mechanical sealing mechanism used in the GL-H series closures. The key operational benefit: the closure can be opened and resealed in the field without tools and without replacing sealing components. For network operators, this means that every future re-entry - whether for capacity additions, fault repairs, or fiber upgrades over a 20-year service life - costs the same in labor time as the original installation, and does not require specialty tools, sealant compounds, or pre-ordered replacement gaskets. Traditional bolt-sealed closures require torque wrenches to achieve correct compression, and heat-shrink sealed closures cannot be resealed to their original IP68 rating without replacement materials. MADIDI closures eliminate both constraints.
Q: What fiber capacity does the GL-H288 support, and can it be expanded after initial installation?
A: The GL-H288 supports up to 288 single-core fibers across twelve splice trays of 24 fibers each. The closure can be deployed with fewer trays initially - for example, with 4 trays at 96 cores - and expanded to full 288-core capacity by adding trays during a scheduled re-entry, without re-splicing any existing fibers. This is the correct architecture for networks where subscriber density will grow over the deployment lifecycle. Specifying the full 288-core closure upfront costs less than a forced re-splice when a smaller closure reaches capacity in year three. Contact our technical team to advise on the correct starting tray count for your specific network topology and growth projection.
Q: Is the GL-H288 IP68 rating maintained after re-entry? How many times can it be reopened?
A: Yes. The MADIDI dual-layer sealing mechanism is designed to maintain IP68 performance - zero dust ingress and continuous submersion protection - across repeated re-entries without seal replacement. The rubber port compression seals and silicone body gasket are rated for re-use across the service life of the network. We recommend inspecting seal condition at each re-entry and replacing any visibly degraded components. Seal replacement kits are available separately from our factory. For comparison, heat-shrink sealed closures lose their IP68 rating at first opening, and must be re-sealed with heat and new sealant material - making each re-entry a scheduled supply chain event. MADIDI re-entry requires no advance preparation.
Q: What cable types and diameters are compatible with the GL-H288?
A: The GL-H288 accepts cables with outer jacket diameters from Ø8mm to Ø23mm - covering the full range from 2-core FTTH drop cables through multi-tube 288F backbone trunk cables. Compatible cable structures include loose-tube, central-tube, and ribbon optical cables. The closure supports G.652D and G.657A single-mode fiber from any manufacturer and is fully vendor-agnostic. Per-port rubber compression seals operate independently, allowing cables of different diameters to be installed in the same closure without adapter inserts or non-standard components.
Q: Can the GL-H288 be used for 5G fronthaul deployments? What makes it suitable?
A: Yes. The GL-H288 is specified for 5G fronthaul backbone routes for three reasons. First, the −40°C lower temperature limit covers rooftop, aerial, and exposed pole-mounted cell site deployments in cold climates - conditions where ABS closures become brittle and crack under thermal cycling. Second, the IP68 rating handles the temperature-cycling and moisture conditions of outdoor cell sites exposed to driving rain, condensation, and seasonal flooding. Third, the 288-core capacity accommodates the aggregated fiber count at BBU pool splice points on high-density fronthaul routes. For deployments requiring PLC splitter integration at fronthaul nodes, contact our technical team for the GL-H series splitter-capable variants.
Q: What installation methods are supported? Does it require special tools?
A: The GL-H288 supports aerial (messenger wire), duct, direct burial, and handhole/manhole installation using a single hardware configuration. No specialized tools are required - the MADIDI mechanism seals without torque wrenches, and no sealant compounds or heat guns are needed. The booklet-style tray system requires no tools to open individual trays during splicing. A standard field team with a fusion splicer, OTDR, and cable stripping tools can complete a full installation. We provide illustrated installation guides and video walkthroughs on request. Contact sales@gloryoptic.com to request the full GL-H series installation package.
Q: What are the MOQ, lead time, sample policy, and OEM options?
A: Standard MOQ for the GL-H288 is 50 units. Lead time for standard configurations is 15–20 business days from order confirmation. Free samples (1–2 units) are available for technical evaluation and network qualification testing before bulk order commitment. OEM/ODM orders - custom branding, modified cable port counts, alternative housing colors, or specification-modified versions - are accepted with a minimum of 30 business days from specification confirmation. Volume pricing, technical datasheets, and test reports are available on request. Contact sales@gloryoptic.com with your project requirements.
Q: What is the difference between mechanical sealing and heat-shrink sealing in fiber splice closures?
A: Mechanical sealing (used in the GL-H288) uses compression gaskets and locking mechanisms that create a physical seal when the closure is assembled. Re-entry is straightforward: unlock the mechanism, open the closure, perform maintenance, and reseal - IP68 performance is restored immediately. Heat-shrink sealing uses heat-activated adhesive materials bonded around cable entry ports and closure body joints. The initial seal is very reliable, but the closure cannot be re-opened and resealed to IP68 without replacement heat-shrink components and a heat gun. For backbone routes where re-entry frequency is low and permanence is valued, heat-shrink is a valid option. For distribution and access routes where re-entry for subscriber adds and repairs is frequent, mechanical sealing is the correct choice.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
