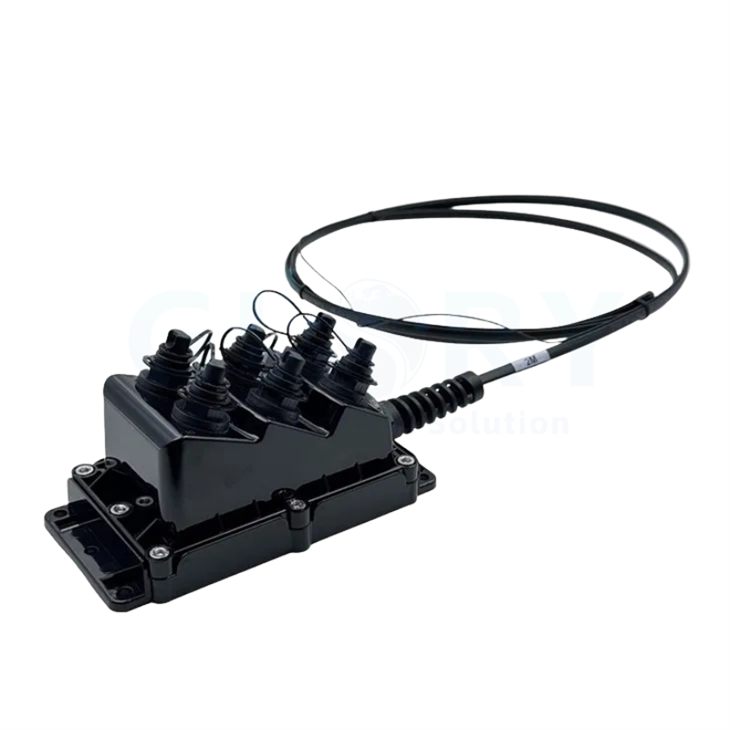

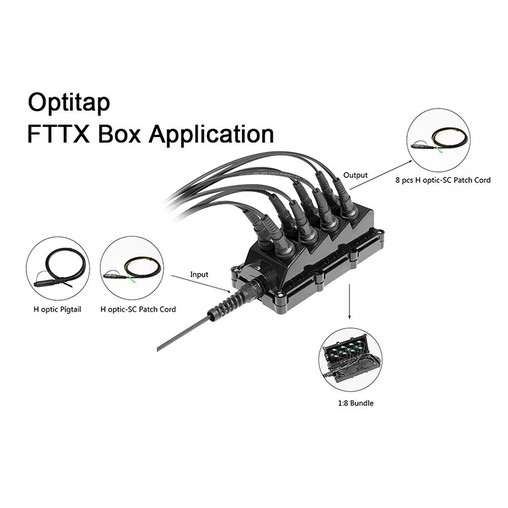

Multiport Splitter Terminals incorporate hardened adapters and enable rapid tower and indoor/outdoor fiber to the home (FTTH) deployments. Multiport Service Terminals are available in different configurations. The terminals are available in terminated or unterminated, point-to-point or using MPO connections for indexing (add/drop-style) configurations. These terminals are IP68 rated to withstand the rigors of outdoor deployments in all environments. It can be mounted in a vault, pedestal, pole or on a strand. Each terminal comes with a mounting kit allowing aerial mounting.

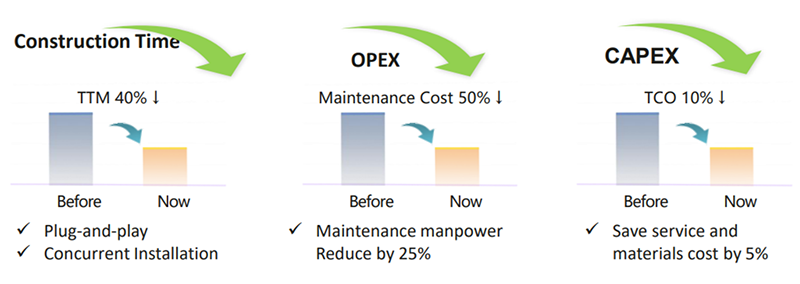

All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. MST box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–40%.
Specifications
|
Dimensions (LxWxH) |
210x105x93mm(4Core) 283x105x95mm(8Core) |
|
Ingress Protection |
IP68 |
|
Working Temperature |
-40~85℃ |
|
Cable Strength Member |
Armored or Non-armored |
|
Cable Type |
Hybrid or non-hybrid |
|
Round Cable OD |
5.0mm to 14.0mm |
|
Flat Cable Dimension |
4.6x8.9mm |
|
Cable Jacket Material |
LSZH, PE or TPU |
|
Bending Radius |
20D |
|
Cable Crush Resistance |
200N/cm long term |
|
Tensile Strength |
1200N long term |
|
UV Resistance |
ISO 4892-3 |
|
Fire Protection Rating |
UL94-V0 |
|
Number of PLC |
1~2pcs |
|
Number of Fusion Protection Sleeves |
1~24pcs |
Feature
· Multiple Ports: Offers multiple ports for connecting various devices simultaneously.
· High Compatibility: Works with a wide range of devices, including computers, monitors, and audio equipment.
· Efficient Data Transfer: Ensures efficient data transfer rates between connected devices.
· Compact Design: Compact and space-saving design, ideal for use in both home and office environments.
· Durable Build: Constructed from durable materials to ensure longevity and reliability.
· Easy Installation: Simple to install and set up without the need for specialized tools.
· Versatile Use: Suitable for a variety of applications such as multimedia, gaming, and professional use.
· Enhanced Connectivity: Provides seamless connectivity options for improved workflow and convenience.

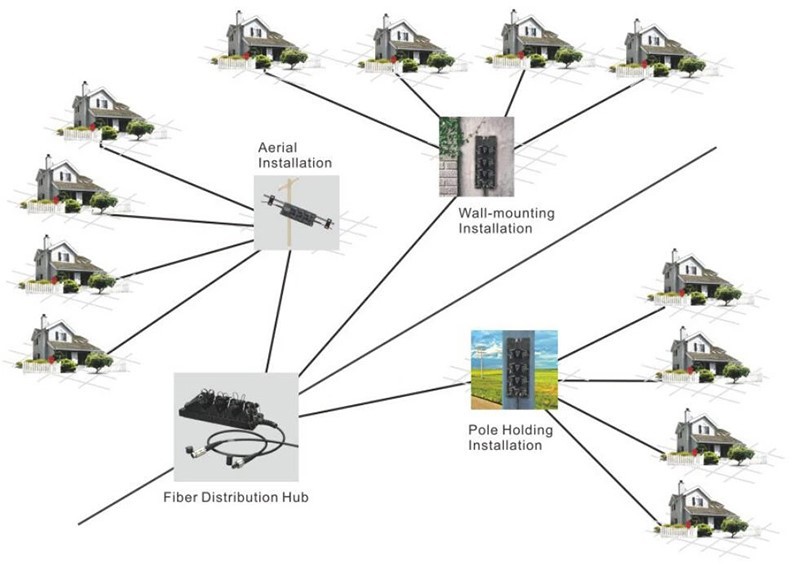

Application
The Multiport Splitter Terminal is designed to facilitate simultaneous connectivity and efficient data management across multiple devices. Ideal for use in diverse environments including offices, homes, and multimedia setups, it enhances workflow by allowing seamless integration of various devices such as computers, monitors, audio systems, and more. Its versatile application extends to multimedia editing, gaming setups, professional workstations, and collaborative environments where multiple connections are essential for productivity and convenience. The terminal's compact design and easy installation make it a practical choice for users seeking enhanced connectivity solutions without compromising on performance or reliability.
