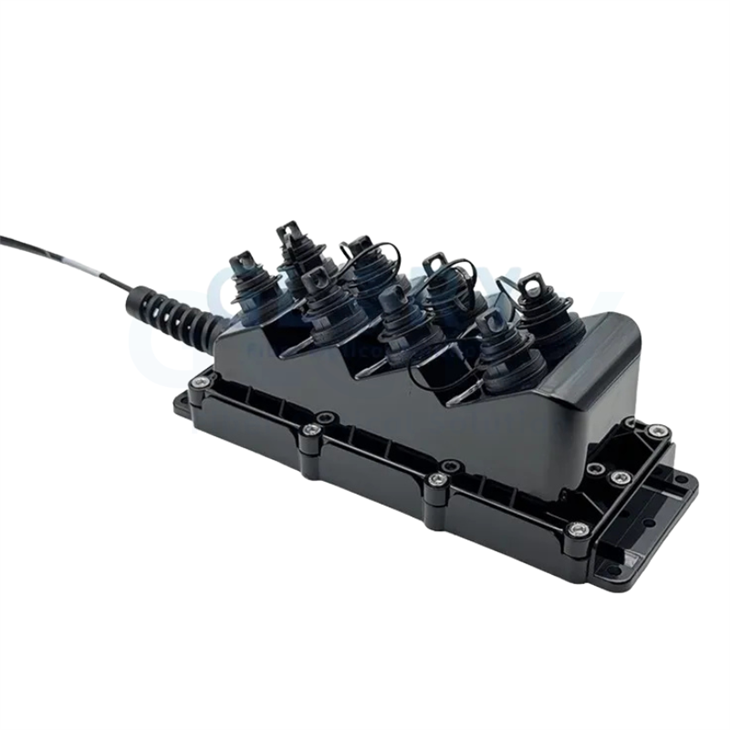

Optitap Compatible Fibre Access Terminal

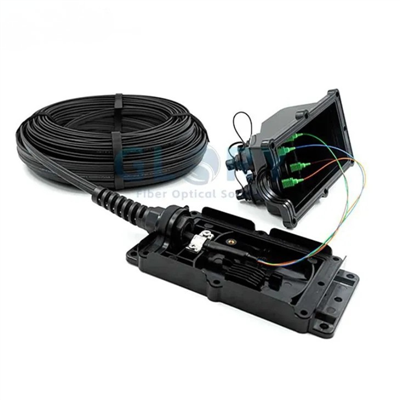

The MST Optitap Compatible Fiber Access Terminal provides a versatile plug-and-play architecture that maximizes deployment speed, minimizes splicing requirements, and lowers labor costs, reducing total cost of ownership (TCO) by 15-30% while delivering true network flexibility. Designed for rapid installation and long-term service durability, these solutions empower providers to address current and future network challenges.
Through innovative fiber indexing technology, the advantages of hardened plug-and-play connectivity are significantly enhanced. Specifically optimized for fiber indexing deployments, the multi-port kiosk offers installers pole, pedestal, or handhole-mounting options engineered for quick and easy installation. Beyond FTTH applications, MST Optitap Compatible Fibre Access Terminals are also suitable for harsh FTTA environments.
Specifications:
|
Parameters |
Specifications |
|
Ports |
2,4,6,8,12,16 |
|
Material |
ML6411 Reinforced polycarbonate+ABS+Stainless steel 304 |
|
RoHS Compliant |
Yes |
|
Connectors |
SuperTap Hardened SC/APC connectors or SuperTap MPO Connectors |
|
Entrance |
SuperTap Hardened Adapters |
|
Feed Cable |
1core, 2core, 4core, 6core, 8core and 12cores |
|
Feed Cable Length |
Customizable, also available without feed cable connected |
|
1x2 FBT 70/30 Coupler |
70%=2.5dB IL (max.); 30%=6.5dB IL (max.) |
|
1x2 PLC Splitter |
4.1 dB IL (max.) |
|
1x4 PLC Splitter |
7.4 dB IL (max.) |
|
1x8 PLC Splitter |
10.5 dB IL (max.) |
|
1x16 PLC Splitter |
14.5 dB IL (max.) |
|
1X2 FBT 70/30 Coupler +1x2 PLC Splitter |
70% Output=2.5dB IL (max.) |
|
1X2 FBT 70/30 Coupler +1x4 PLC Splitter |
70% Output=2.5dB IL (max.) |
|
1X2 FBT 70/30 Coupler +1x8 PLC Splitter |
70% Output=2.5dB IL (max.) |
|
1X2 FBT 70/30 Coupler +1x16 PLC Splitter |
70% Output=2.5dB IL (max.) |
|

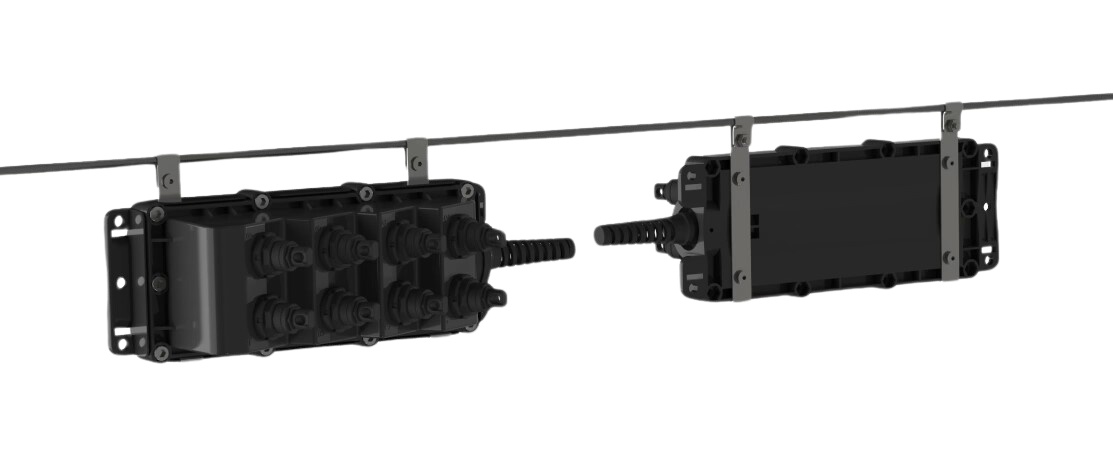

Mounting Method |
Strand, pole, wall, handhole or pedestal |
|
IP Rating |
IP68 |
Features of OptiTap Compatible Fiber Access Terminal:
1. Environmental Resilience
• IP68 Protection: Provides complete dust resistance and waterproofing, suitable for operation in harsh environments like coastal areas, deserts, and industrial zones.
• Extreme Temperature Tolerance: Operates reliably in temperatures ranging from -40°C to +70°C, adaptable to diverse climates from polar cold to desert heat.
• UV/Chemical Resistance: Made from UV- and chemical-resistant materials, ensuring long-term durability under prolonged exposure.
2. Plug-and-Play Compatibility
• OptiTap Integration: Pre-installed OptiTap interfaces enable tool-free, blind-mate connections, eliminating splicing and reducing installation complexity.
• Multi-Connector Support: Compatible with SC, LC, and MPO/MTP fiber connectors, supporting single-fiber, duplex, and high-density applications.
3. Compact and Space-Efficient Design
• Miniaturized Dimensions: Compact dimensions enable installation in confined spaces like handholes or wall mounts.
• Modular Configurations: Supports split ratios such as 1:2,:4, and 1:8, facilitating flexible network expansion and cost-efficient resource allocation.
4. Enhanced Signal Integrity
• Anti-Bend Technology: Features anti-bend technology to minimize signal loss under tight fiber bends, ensuring stable data transmission in complex layouts.
• Low Insertion Loss: Designed for high-performance connectivity with minimal signal attenuation, guaranteeing reliable data delivery.
5. Simplified Maintenance and Scalability
• Field-Ready Assembly: Pre-terminated connectors allow on-site deployment without specialized tools or technical skills, reducing labor costs.
• Modular Fault Detection: Enables rapid troubleshooting within minutes, streamlining maintenance workflows and minimizing downtime.
6. Industry Compliance and Versatility
• Certified Standards: Complies with Telcordia GR-326, GR-771, and GR-3120, ensuring reliability in telecom and enterprise networks.
• Broad Application Scope: Ideal for FTTH, FTTA (fiber-to-the-antenna), and industrial automation, supporting smart cities, IoT, and 5G infrastructure
Applications in FTTX Application:
OptiTap-compatible Fibre Access Terminals play a critical role in FTTx deployments by enabling efficient and reliable fiber connectivity across diverse scenarios. Specifically designed for outdoor environments, these terminals leverage OptiTap's robust, IP68-rated weather-resistant connectors to ensure stable signal transmission in harsh conditions, including 5G small cell installations and FTTA (Fiber-to-the-Antenna) applications. Their compatibility with existing FTTx infrastructure allows seamless integration into fiber backbones for macro/micro cell sites, reducing both deployment complexity and costs.
In FTTM (Fiber-to-the-Machine) setups at smart factories, OptiTap compatible MST Fibre Access Terminals support the high-density, low-latency connections essential for Industry 4.0 applications, while meeting POL (Passive Optical LAN) requirements for all-optical networks. Additionally, their plug-and-play design facilitates rapid field termination by eliminating polishing or epoxy requirements, streamlining FTTH drop cable field installation practices. Through a combination of durability, high precision (achieved via ceramic ferrules), and compatibility with OM3/OM4 fibers, OptiTap terminals optimize FTTx architectures – from telecom distribution networks to last-mile FTTC/FTTB solutions – ensuring scalable, future-proof connectivity for multi-gigabit services.
