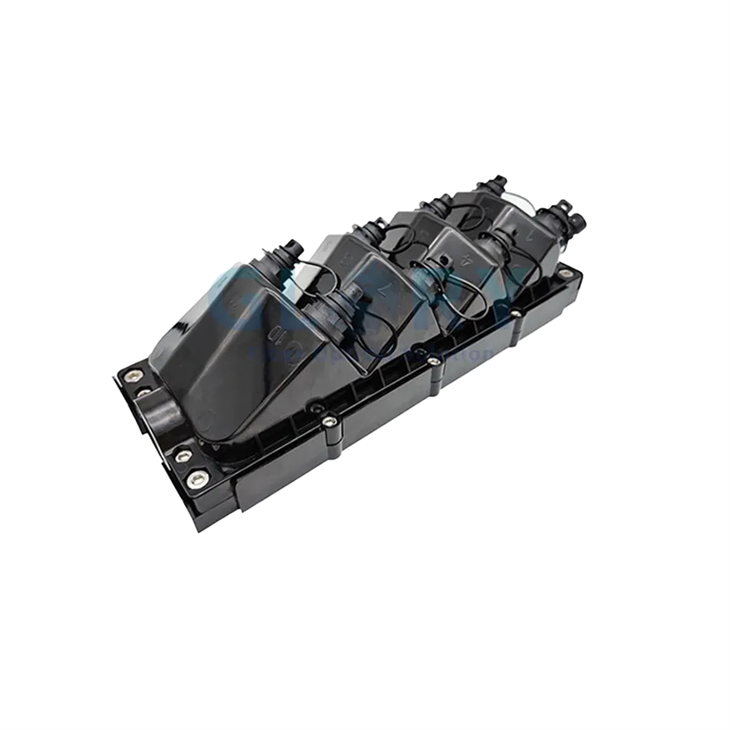

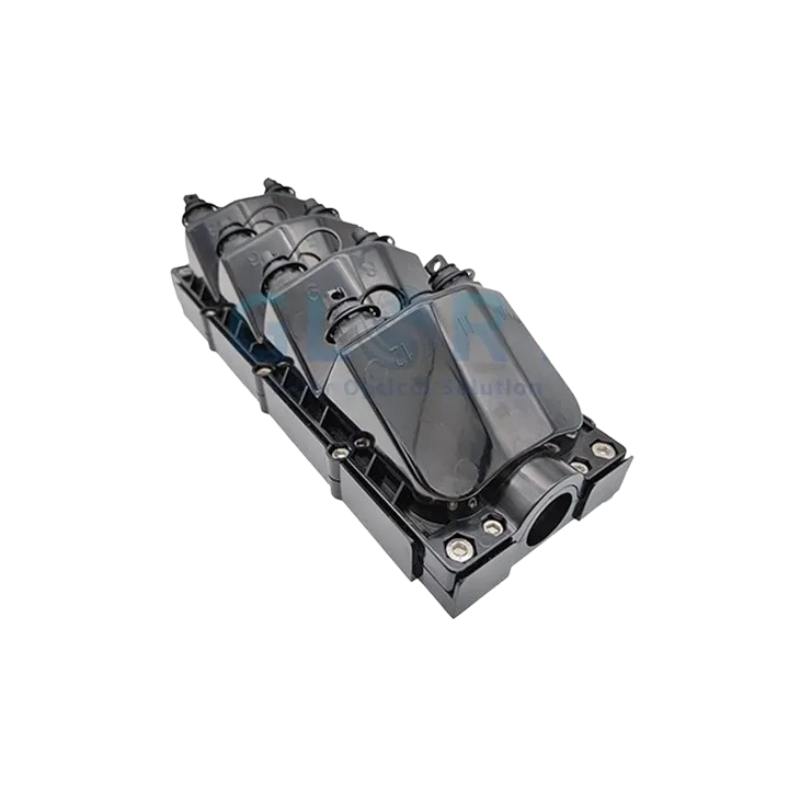

Fibre Optical Network Terminal - Multiport Service Terminal (MST) Box
The Multiport Service Terminal (MST) Box Fast-Connect Closure is used for access points of the FTTx-ODN Fibre Optical Network Terminal. It is a product with all inlet and outlet cables preconnected, eliminating the need for opening the closure or fiber splicing. and All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during deployment, which improves service provisioning efficiency.
The MST Fiber Optical Network Terminal is a new, cost-effective fiber distribution solution for outdoor usage. Compared to traditional products, the MST box is easy to operate and highly compatible. Reduces the total cost of operation (TCO) by 15–30%. It can be used for wall-mounting, aerial installation or pole installation, depending on the situation. The MST box is not only used in FTTH applications, but also in FTTA applications and other harsh environments.
Specifications:
|
Item |
Technical Parameters |
|
Dimensions (LxWxH mm) |
365x137x90 (Without cover); 375x142x120(With cover) |
|
Max Capacity |
1pcs 12core pigtail or 1pcs 1*12 PLC splitter or 1pcs MPO to 12 SC patch cord |
|
Mounting Type |
wall mount, pole mount and aerial mount |
|
IP Level |
IP67 |
|
Application |
Outdoor FTTA |
|
Material |
PC |
|
Color |
Black |
|
Reinforced Adapter |
4/6/8/12pcs Optitap adaptor |
|
Temperature Rage |
-40~80℃ |
Cable Specifications:
|
Cable Type |
Flat drop cable |
|
Cable Size |
3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm |
|
Cable Quantity |
1 |
|
Cable Stub Length |
50meter to customized |
|
Attenuation, maximum |
0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm |
|
Directivity, minimum |
60 dB |
|
Wavelength Range |
1260–1635 nm |
|
Insertion Loss, Terminal Connector, max. |
0.4dB |
|
Return Loss, Connector, minimum |
65dB |
Features:
• High compatibility: can be assembled ODVA, Corning (OptiTap™ compatible), Mini SC
• Factory-sealed or field assembly
• Strong enough: working under 1200N pulling force long term

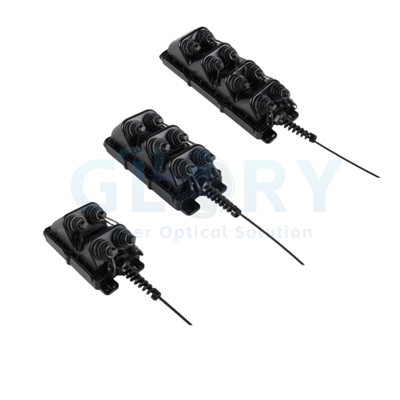

• From 2 to 12 ports for single or multifiber harsh connectors
• Available with PLC or splice sleeve for fiber divide
• IP67 waterproof
• Decreased angle surface and height make sure no connector interfering when operating
• Cost effective: save 40% operating time
• Wall/aerial/pole mounting
Fibre Optical Network Terminal Application :
• FTTH Projects
• FTTA Projects
• Truck cable connecting
• Prospecting or military communication
