16-Port Fiber Optical Termination Box
Details
The GL-FTB-16H is a 16-port fiber optical termination box that combines feeder-cable fixation, fiber splicing, storage, distribution and space for a micro 1×16 PLC splitter. Its black 290 × 210 × 82 mm PC+ABS housing is rated IP65 for indoor or outdoor FTTH/FTTx nodes, accepts a 12–15 mm input cable and supports wall or pole mounting across a −40°C to +85°C working range.
Category
Fiber Optic Termination Box
Share to
Description

Product overview

16-Port Optical Termination Box for FTTH Feeder-to-Drop Nodes

The GL-FTB-16H serves as the transition point between an incoming feeder cable and multiple drop-side connections. Its flip-up distribution panel separates the upper splicing and cross-connection area from lower splitter and excess-fiber storage, while cable clamps and dedicated routing paths organize the feeder, pigtails and patch cords.

Network function

Use the enclosure to secure an incoming feeder cable, protect fiber joints, route pigtails, store fiber slack and distribute optical paths toward subscriber drops. A micro PLC splitter may be integrated when the ODN design calls for a passive 1×16 branch at this node.

Configuration at a glance

The standard product data identifies a 16-port black PC+ABS enclosure, IP65 protection, 290 × 210 × 82 mm dimensions, a 12–15 mm input cable range and wall or pole mounting. Adapter interface, drop-cable profile, splice capacity and loaded splitter specification must be defined on the project BOM.

Port count is not the same as splice or splitter capacity

The enclosure has 16 distribution positions and can house a micro 1×16 PLC splitter. The number of field splices, adapter type and actual splitter loss are separate configuration fields and should be confirmed through the approved drawing and optical BOM.

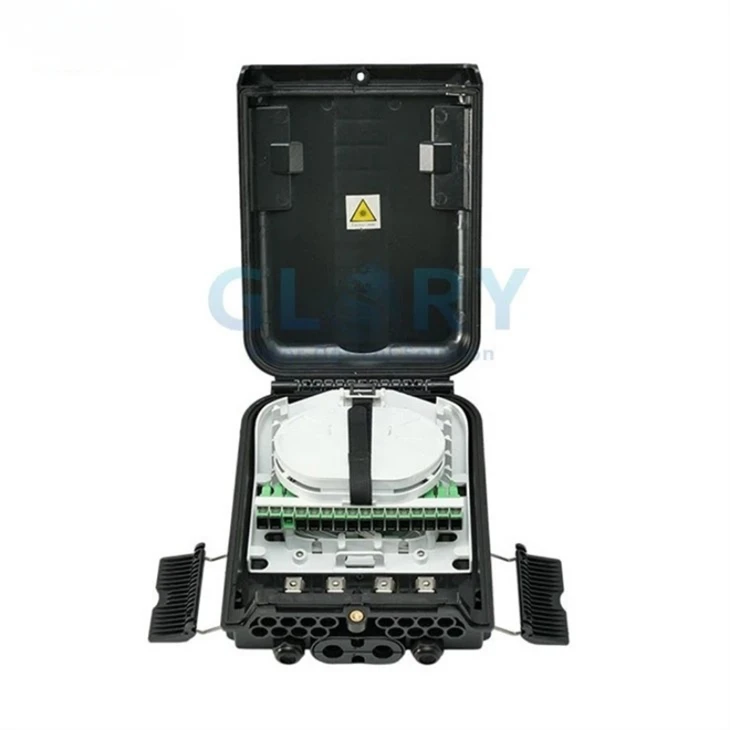

Open GL-FTB-16H optical termination box showing the flip-up tray and 16-position distribution panel

Open enclosure showing the flip-up tray, fiber-routing area and 16-position distribution panel.

Internal structure of the GL-FTB-16H 16-port fiber optical termination box

Internal structure with cable clamps, storage tray and separated routing areas visible.

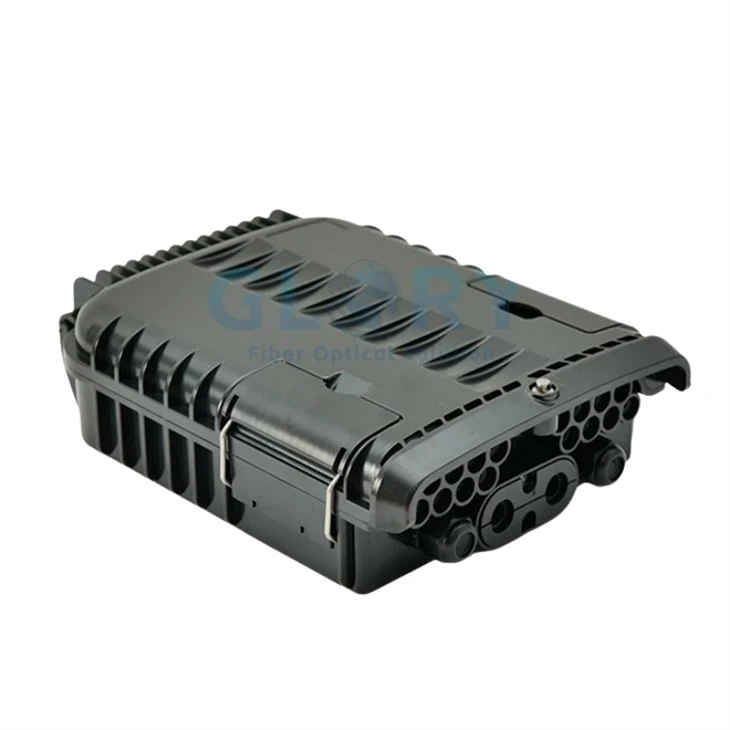

Rear and cable-entry view of the GL-FTB-16H IP65 optical termination box

Rear and cable-entry view for mounting, entry direction and clearance review.

Design details

GL-FTB-16H Product Selling Points

Each point connects a confirmed product detail to a practical engineering or procurement decision.

16-Port Distribution Platform

The enclosure provides 16 distribution positions for connecting the feeder side to multiple drop paths. This gives planners a defined subscriber-facing scale while keeping adapter type, splice quantity and active splitter outputs as separate BOM fields.

Micro 1×16 PLC Splitter Space

A dedicated lower area accommodates a micro PLC splitter, and the FTTH configuration identifies a 1×16 option. Integrating the splitter inside the terminal removes the need for a separate splitter enclosure, provided its package, fiber leads, connectorization and optical limits are approved.

IP65 PC+ABS Enclosure

The black PC+ABS housing carries an IP65 rating and is listed for indoor or outdoor use. It supplies defined material and ingress fields for exposed FTTH nodes; impact rating, flame class, UV test duration and continuous-immersion performance are not established by IP65.

Flip-Up Dual-Layer Layout

The flip-up distribution panel separates splitter and excess-fiber storage from splicing, cross-connection and distribution. Compared with a single open compartment, this arrangement gives technicians clearer access to the service area without pulling every routed pigtail through the same working space.

12–15 mm Feeder Cable Entry

The specified input cable diameter is 12–15 mm, and internal cable-fixing units secure the outdoor feeder before fiber routing begins. Recording the actual cable OD and strength-member construction before ordering helps avoid entry-gland and retention mismatches on site.

Wall or Pole Mounting

The 290 × 210 × 82 mm enclosure supports wall and pole installation for indoor/outdoor FTTH locations. A single housing can therefore cover building exteriors and roadside access points when the approved order includes the correct bracket, fasteners, orientation and cable-support method.



Product configuration

GL-FTB-16H Configuration Options

Confirm the loaded or unloaded supply state, adapter interface, splitter assembly, feeder cable and mounting package before sample approval.

Product modelGL-FTB-16H fiber optical termination box.
Port quantity16 distribution positions.
Splitter configurationSpace for a micro PLC splitter; a 1×16 configuration is identified for FTTH distribution.
Optical interfaceUPC and APC return-loss values are listed; confirm adapter type, polish and matching pigtails.
HousingBlack PC+ABS, IP65, 290 × 210 × 82 mm.
Input cable12–15 mm outside diameter; confirm construction and strength-member fixing.
MountingWall or pole; define bracket, fasteners and installation orientation.
Project-defined fieldsAdapter type, splice capacity, drop-cable entry profile, PLC package and optical data, fiber type, port map, labels, hardware, inspection records and packaging.

Technical data

GL-FTB-16H Optical Termination Box Technical Specifications

The tables separate housing, environmental, optical, cable and splitter fields so one value is not applied to a different component.

General Technical Specifications

Confirmed product, enclosure, environment and installation data.

Item Specification Project Selection Note
Product model GL-FTB-16H Use with the approved product image and drawing revision.
Product name Fiber Optical Termination Box 16-port feeder-to-drop termination and distribution enclosure.
Network FTTH / FTTx Passive access-network distribution node.
Port quantity 16 ports Keep separate from splice capacity and splitter output count.
Enclosure material PC+ABS Record the approved housing revision in the project BOM.
Color Black State any alternative color as a separate order requirement.
Dimensions 290 × 210 × 82 mm Check opening clearance, routing space and mounting surface.
Protection rating IP65 Indoor/outdoor rating; it does not establish an IK grade or immersion rating.
Working temperature −40°C to +85°C Installation and storage temperature limits should be stated separately when required.
Relative humidity ≤85% at +30°C Use the stated temperature together with the humidity value.
Input cable diameter 12–15 mm Confirm cable construction, measured OD and strength-member layout.
Mounting method Wall or pole Specify bracket, fasteners, orientation and cable support.

Model and Capacity Table

Model Port Quantity Splitter Position Housing Input Cable OD Dimensions Mounting
GL-FTB-16H 16 ports Micro PLC; 1×16 FTTH configuration Black PC+ABS, IP65 12–15 mm 290 × 210 × 82 mm Wall / pole

Optical Specifications

Optical Field Specified Value Measurement Boundary
Insertion loss ≤0.15 dB Define whether acceptance is per connector, adapter path or assembled port; this value is not the 1×16 splitter loss.
UPC return loss ≥50 dB Use only with the selected UPC connectorized configuration.
APC return loss ≥60 dB Use only with the selected APC connectorized configuration; do not mix APC and UPC interfaces.
PLC splitter loss Defined by the selected 1×16 splitter assembly State port-by-port insertion loss, uniformity, PDL, directivity, wavelength and fiber type separately.

Splitter Configuration Table

Splitter Function Configuration Input / Output Paths Terminal Ports Information Required for Order
Centralized PON splitting Micro PLC splitter, 1×16 1 input / 16 outputs 16 distribution positions Package size, fiber type, lead lengths, connectorization, port map, optical limits and test-report format.

Cable and Connector Compatibility

Compatibility Field Confirmed Product Data Information to Confirm
Feeder cable 12–15 mm input cable diameter Construction, fiber count, measured OD, strength members and assigned entry.
Drop-side distribution 16-port panel Drop-cable profile, OD, entry method, connector interface and length.
Optical polish UPC and APC performance values listed Adapter type, polish, keying and mating pigtail or patch cord.
Cable management Separate cable, pigtail and patch-cord pathways Fiber routing drawing, bend-control method and slack allocation.
Cable retention Internal cable-fixing units Strength-member fixing and project retention test conditions.

Network placement

16-Port Optical Termination Box Applications and Solutions

The GL-FTB-16H fits passive access nodes where feeder termination, controlled routing and optional 1×16 splitting must share one wall- or pole-mounted enclosure.

FTTH Last-Mile Distribution

A generic splice box may protect joints but leave splitter mounting, drop distribution and fiber storage in separate enclosures. GL-FTB-16H combines these functions in a 16-port IP65 housing with a flip-up panel and micro PLC position. Install it between the feeder cable and subscriber drop section at an FTTH neighborhood or building access node. The 12–15 mm feeder enters the cable-fixing area, while the selected pigtails or patch cords serve the drop side. Before ordering, confirm adapter type, connector polish, splice plan, 1×16 splitter data, drop-cable interfaces and the complete port map.

Pole-Mounted Outdoor FTTH Nodes

Choosing an enclosure without a defined pole option can leave brackets, cable loads and service access unresolved. The GL-FTB-16H provides an IP65 PC+ABS housing and pole-mount installation for roadside or utility-pole FTTx nodes. Position it where a 12–15 mm feeder cable must be secured, spliced and distributed toward nearby subscriber routes. Procurement should specify pole diameter, bracket and fasteners, box orientation, cable support, feeder construction, drop-cable entry method, unused-port sealing and whether site impact, flame, UV or immersion conditions require additional project specifications beyond the stated IP rating.

Building Exterior and MDU Distribution

Using separate splice, splitter and patching boxes on a building façade can consume wall space and make fiber routing harder to trace. The GL-FTB-16H uses a 290 × 210 × 82 mm dual-layer structure to separate splitter storage from splicing and distribution. Mount it on an exterior wall or indoor service area at the feeder-to-building-drop transition for an apartment, office or mixed-use property. Buyers should confirm wall material, fasteners, opening clearance, fire requirements, adapter and polish, drop-cable profile, splitter topology, port numbering and whether the standard non-specified flame performance is acceptable for the intended location.

GPON or XGS-PON 1×16 Branch Points

Selecting a 16-port box without separating connector loss from splitter loss can produce an incorrect ODN budget. GL-FTB-16H provides space for a micro 1×16 PLC splitter and lists ≤0.15 dB insertion loss for the configured optical connection, while the splitter's actual worst-port loss remains a separate value. Install it at the centralized split point defined by the GPON or XGS-PON architecture, upstream of subscriber drops and ONTs. Procurement must confirm OLT class, fiber type, route lengths, connector-pair allowances, splitter test data, reserve margin, splice events and required end-to-end acceptance records.



Project ordering

GL-FTB-16H Ordering Configuration

Include these fields in the RFQ so the supplied box matches the feeder cable, optical budget, drop interfaces and mounting site.

Ordering Field Standard Product Data Information to State on the RFQ
Product identifier GL-FTB-16H Quantity, approved drawing revision and product image.
Port quantity 16 ports Active ports, reserve positions, numbering and complete port map.
Supply state Termination box with micro PLC space Empty, adapter-loaded, pigtail-loaded or complete splitter-loaded assembly.
Splicing Splicing function provided Required splice capacity, tray arrangement, sleeve size and reserve-fiber plan.
PLC splitter 1×16 configuration identified Package, fiber type, lead lengths, connectorization, optical limits and report format.
Optical interface UPC RL ≥50 dB; APC RL ≥60 dB Adapter and connector type, polish, keying, pigtails and acceptance method.
Insertion loss ≤0.15 dB Measurement boundary, wavelength, reference cords, sampling and report fields.
Feeder cable 12–15 mm input diameter Construction, fiber count, measured OD, strength members and retention requirement.
Drop side 16 distribution positions Cable profile, OD, entry method, connector type, length and labels.
Housing Black PC+ABS; IP65; 290 × 210 × 82 mm Site exposure and any impact, flame, UV or immersion requirements.
Mounting Wall / pole Bracket, fasteners, pole diameter, orientation and cable-support parts.
Identification and packing Project-defined Logo, product label, port numbers, cable tags, carton marks, accessory packing and documents.

Recommended RFQ line

GL-FTB-16H 16-port fiber optical termination box, black PC+ABS, IP65, 290 × 210 × 82 mm, feeder cable [construction / 12–15 mm OD], adapter [type / UPC or APC], pigtails [ ], PLC splitter [empty / 1×16 specification], splice capacity [ ], drop cable [profile / connector / length], port map [revision], mounting [wall / pole], hardware [ ], labels [ ], optical report [ ] and packaging [ ].

OEM and project support

OEM GL-FTB-16H Project Configuration

Control the enclosure, adapters, pigtails, splitter, cable-entry parts, mounting hardware and labels through one approved sample, drawing and BOM.

Housing and Port Review

Confirm the 290 × 210 × 82 mm housing, 16-position panel, tray movement, cable entry, latches and mounting points.

PLC Splitter Integration

Define the micro 1×16 package, fiber leads, connectorization, routing, port numbering and requested optical test fields.

Cable and Connector Fit

Match the 12–15 mm feeder construction and drop-cable profile to the selected entries, adapters, pigtails and fixing parts.

Mounting Package

Prepare wall or pole hardware against the actual support structure, orientation, cable loading and opening clearance.

Sample Confirmation

Approve cable retention, fiber routing, tray operation, adapter mating, splitter seating and sealing before repeat production.

Labels and Packaging

Confirm logo artwork, product label, port numbering, cable tags, lot identification, accessory packing and carton marks.



Company background

Why Glory Optical for GL-FTB-16H Project Supply

Founded in 2008 and based in Ningbo, Zhejiang, Glory Optical Communication operates a 20,000 m² manufacturing facility focused on passive fiber infrastructure. The company lists more than 300 passive optical products, customers in over 50 countries and OEM/ODM support for FTTH, ODN, outdoor plant and data center cabling projects.

Enclosure and Loaded-Box Production

Mold development, enclosure production, tray assembly, adapter and pigtail integration, splitter loading, testing and packing are available within the Ningbo workflow. For GL-FTB-16H, these processes meet at the PC+ABS housing, 16-position panel and optional 1×16 assembly.

Project BOM Confirmation

The technical sales process can review port count, fiber count, splitter ratio, loaded or unloaded supply, adapter type, splice capacity, cable diameter, cable entry, mounting, IP rating, labels and port map before quotation and sample approval.

Drawing and Sample Review

Drawing review and sample preparation let buyers check the port layout, cable fit, tray movement, splitter routing, connector mating and mounting package before the approved configuration moves into batch supply.

Optical Testing Support

The testing area can check connectorized products and cable assemblies for insertion loss, return loss and end-face condition where applicable. Exact limits and sampling should be tied to the approved GL-FTB-16H assembly and purchase documentation.

Project checklist

Confirm the Cable, Adapter and 1×16 Splitter Before Ordering

Send the feeder cable construction and measured diameter, required splice capacity, adapter and polish, drop-cable interface, loaded or unloaded splitter configuration, approved port map, mounting location, hardware, optical report, labels and packaging instructions for the GL-FTB-16H optical termination box.
