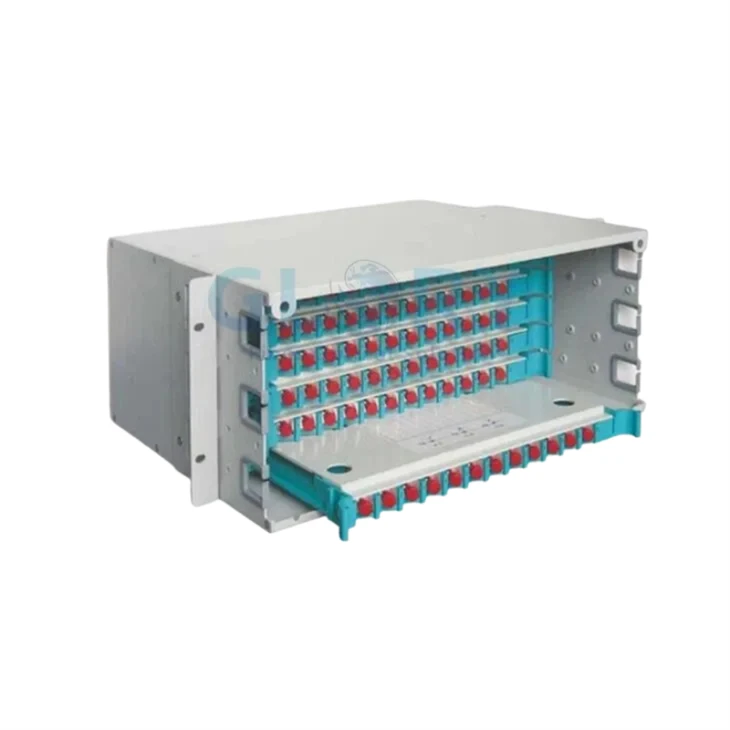

Optical Distribution Frame unit box is a high-density, high-capacity design product, with good looks generous, reasonable distribution, easy to find, easy management, easy installation and good operational etc. Optical Distribution Frame can be individually equipped with fiber optic distribution frame, but also with the digital wiring unit, audio wiring unit installed in a cabinet / rack. Constitute a comprehensive distribution frame. It is the essential equipment for the optical fiber communication cable network terminal or the relay point to realize the fiber splicing and the jump splicing.
In the integrated wiring system, the optical distribution frame is suitable for horizontal wiring between equipment or equipment termination, as well as mutual termination of centralized points. The sturdy and easy-to-install design reduces installation and operation costs. The large front-side marking space facilitates port identification and management, and meets 19 "rack-mounting standards.
Optical Distribution Frame is an important supporting equipment in the optical transmission system. It is mainly used for fiber fusion splicing of optical cable terminals, installation of optical connectors, adjustment of optical paths, storage of excess pigtails, and protection of optical cables. Flexible use plays an important role.
Specifications
|
Product name |
72 Core Rack Mount 19" ODF With SC Adapter |
|
Fiber Capacity of panel |
72fibers |
|
Cable |
SC/FC/LC/ST/12 Core Pigtail |
|
Adapter |
SC/FC/LC/ST |
|
Material |
Cold Rolled Steel |
|
Color |
Grey |
|
Storage Temperature |
-20℃~+80℃ |
|
Application |
Telecommunication |
Features
• 19" standard mounting, available for all kinds of rack and cabinet.
• Metal, static electric plastic sprayed. Neat appearance, reasonable structure.
• Module Design; all operation could be done at the front side of the box
• Flexible installation, convenient for operation and maintenance.
• Designed as a drawer. This could be pulled out and pushed easily
• A unit with splice and distribution integrated.
• Suitable for both ribbon and bunch fiber cables.
• Each splice trays can be installed with 12 FC, SC adapters 30 degree angel installation, preventing eyes form harm of laser and ensuring the fiber bending radius.
FAQ
What is ODF Optical Distribution Frame?
ODF optical distribution frame is a high-density, high-capacity design product. It has the characteristics of beautiful appearance, reasonable distribution, easy search, easy management, convenient installation, and good operability. ODF optical fiber distribution frames are mainly divided into: 24 cores, 36 cores, 48 cores, 72 cores, 96 cores and 288 cores.
ODF optical distribution frame is an important supporting equipment in the optical transmission system. It is mainly used for optical fiber splicing, installation of optical connectors, adjustment of optical paths, storage of redundant pigtails, and protection of optical cable. The safe operation and flexible use of communication networks play an important role. Now optical communication has been widely used in long-distance trunk lines and local network relay transmission, and fiber optics has also become the development direction of access networks. Everywhere in the construction of new optical fiber networks, large-fiber optical cables are used as much as possible, which puts higher requirements on the capacity, function, and structure of ODF optical distribution frames.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
