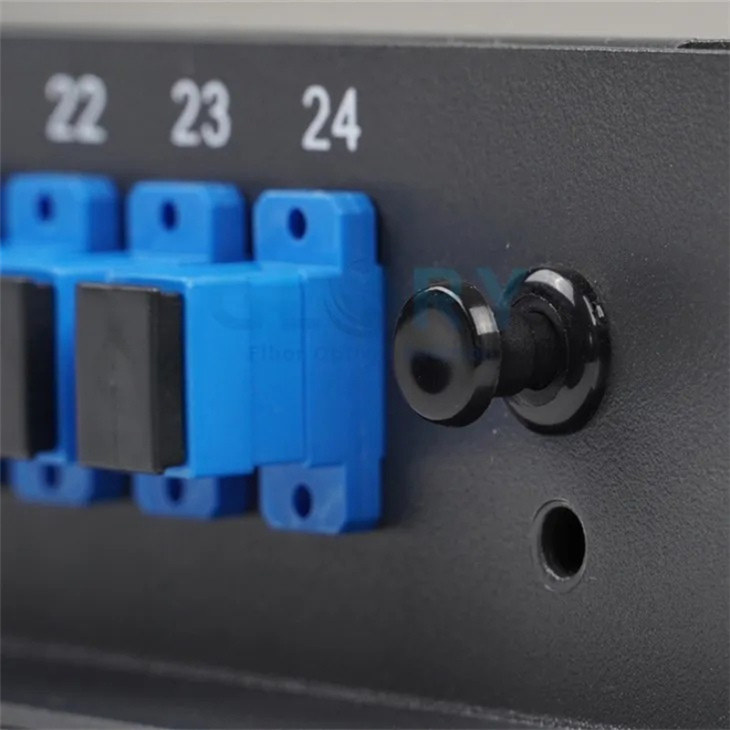

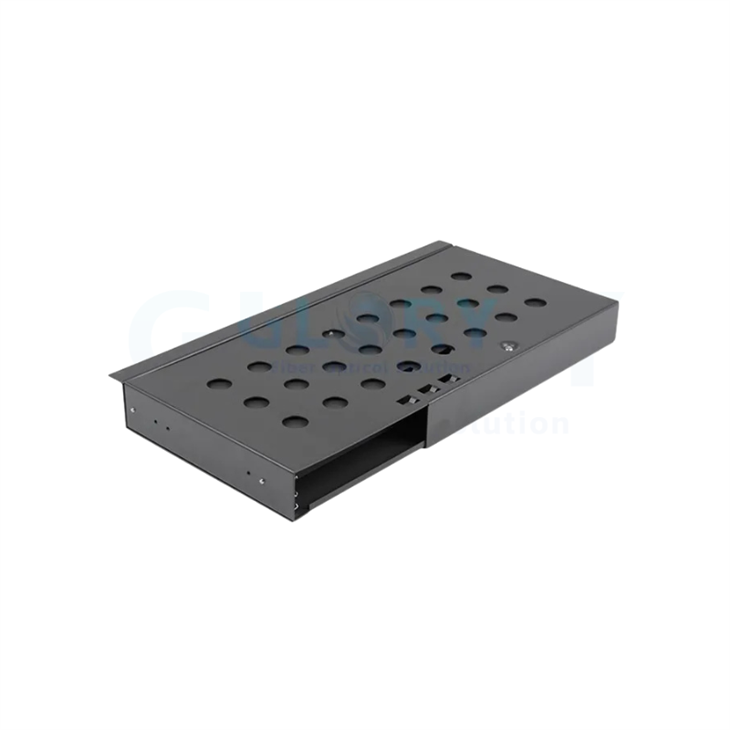

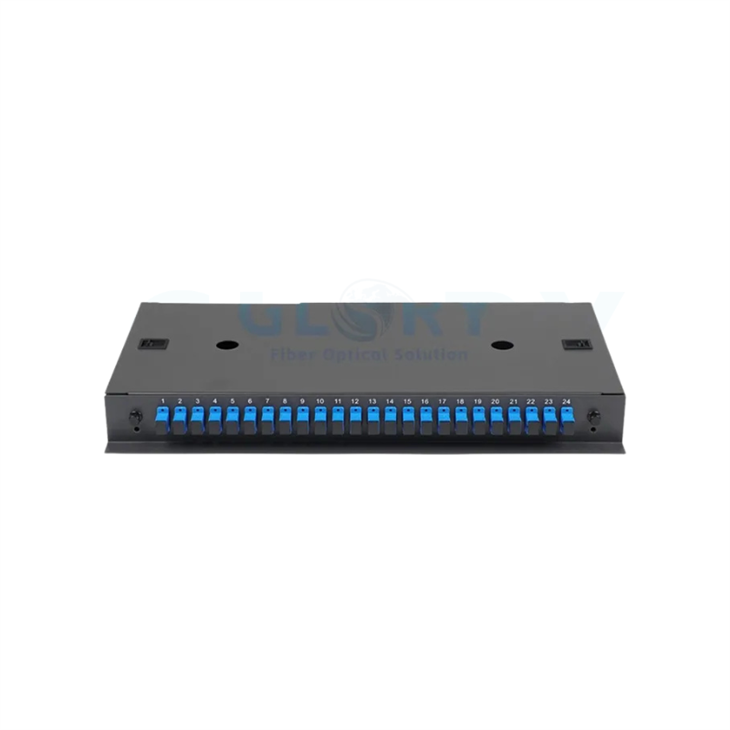

The GL-JPF series of Fiber Optic Patch Panel has a similar design in comparison to the fixed patch panel, though where the design differs slightly is through the master panel that slides out, providing a simplified point of access; these units are designed to accommodate both the patching and splicing of fiber, while retaining network connections through avoiding potential physical damage. The Slide Out Fiber Patch Panel is compact for high-density networking and delivers a cost-effective solution.
The Fiber Optic Patch Panel adopt high-quality cold rolled steel, anti-destruction. The drawer patch panel adopts quiet type guide rail, it is easy to pull out and good for installation and maintenance. The product is suitable for application of many type adapters and fast connectors, it has different panel for SC duplex, SC/FC/ST adapters.
Specifications
|
Item Name |
Fiber Optic Patch Panel GL-JPF series |
|
Model |
GL-JPF-1U24-02 (1U) GL-JPF-2U48-02 (2U) |
|
Size (mm) |
482 × 45 × 270 (1U) 482 × 89 × 270 (2U) |
|
Color |
Black |
|
Environment condition |
-25℃~40℃ |
|
Suitable adapters type |
SC,FC,ST, SC Duplex |
|
Suitable cable diameter |
Φ8-16mm (1U) Φ8-25mm (2U) |
Feature
GL-JPF series Fiber Optic Patch Panel integrates optical fiber fusion, wiring, storage and external connection. It is a necessary auxiliary device for 19 "standard cabinet and is widely used in local area network and access network in optical fiber communication.

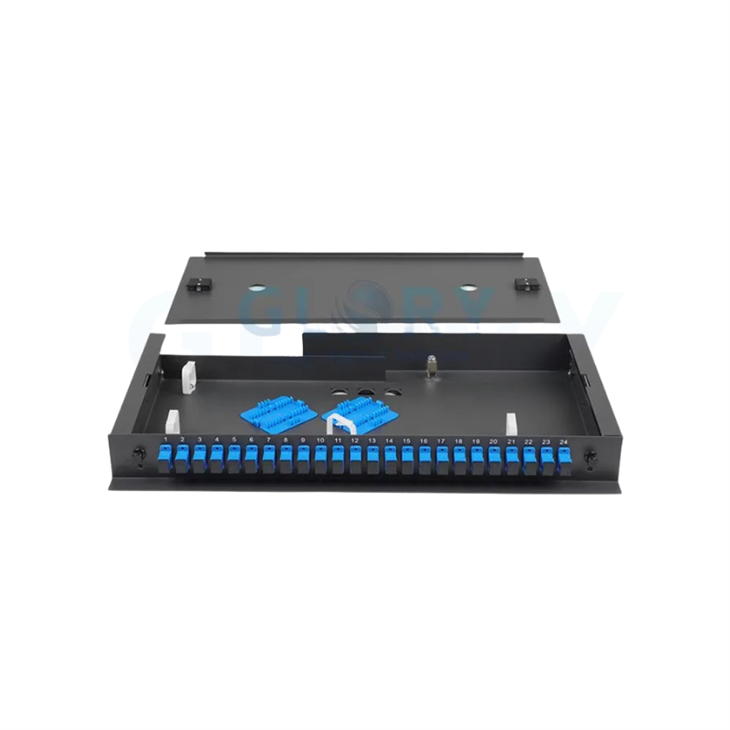

• Unit box adopts a pull-out structure design and is extremely convenient to operate.
• Users can select adapter panels of different specifications according to actual needs to install adapters such as FC, SC, ST.

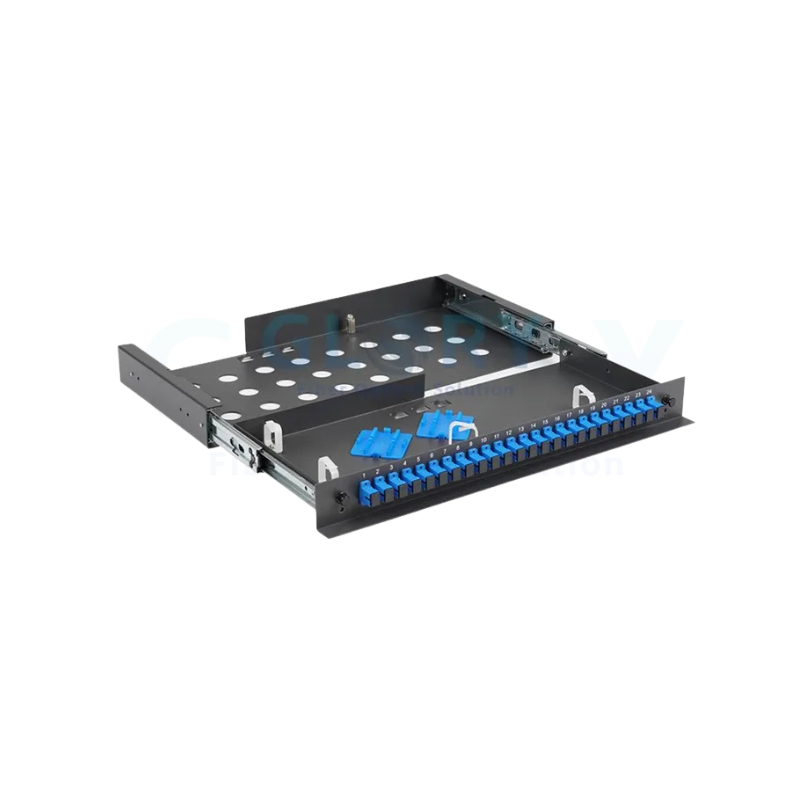

• Unit box adopts precision bearing guide rail, which is smooth and flexible in drawing.
• optical cables can be directly introduced into the unit box, and there are fixing devices for optical cables and steel cores. 1U series can be used for optical cables with a diameter of 8-20mm, and 2U series can be used for optical cables with a diameter of 8-25mm.
• Nut squeeze sealing for cable, wide cable range.
• This series of cell boxes supports expansion.
Structure drawing:
|
GL-JPF-1U24-02 |
GL-JPF-2U48-02 |
|
|
|
FAQ
What is the benefits of using a Fiber Optic Patch Panel?
Facilitates the easy termination of fiber optic cables
Well-organized and easy-to-manage connections of all the input jacks/ports into a patch panel in a central location
Provides an easier means to connect different devices in different orders as all of the changes can be made at the patch panel
Avoids cost incurred through wear and tear on the input ports of networking equipment as all the connections are patched using the ports in the patch panels
