ODF 19 Inch Rack

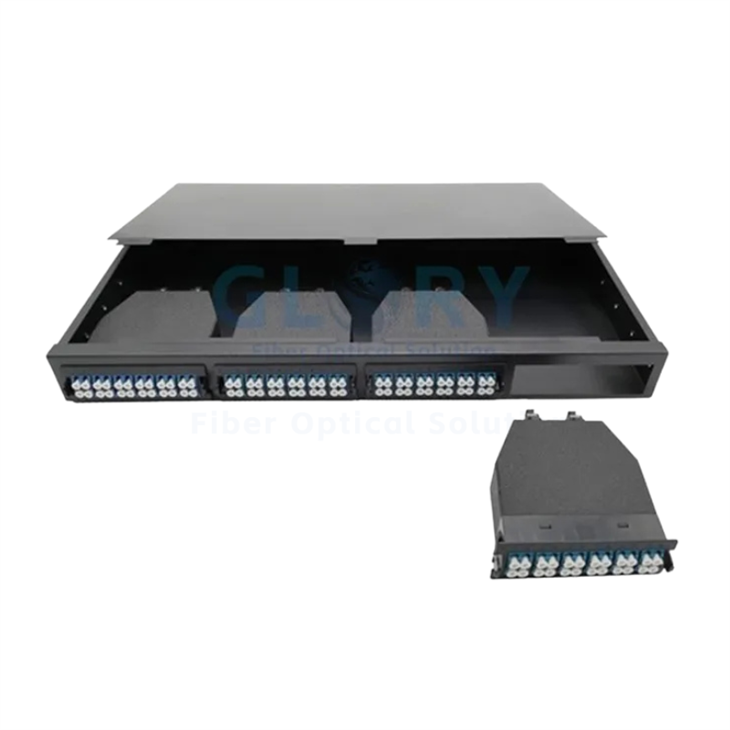

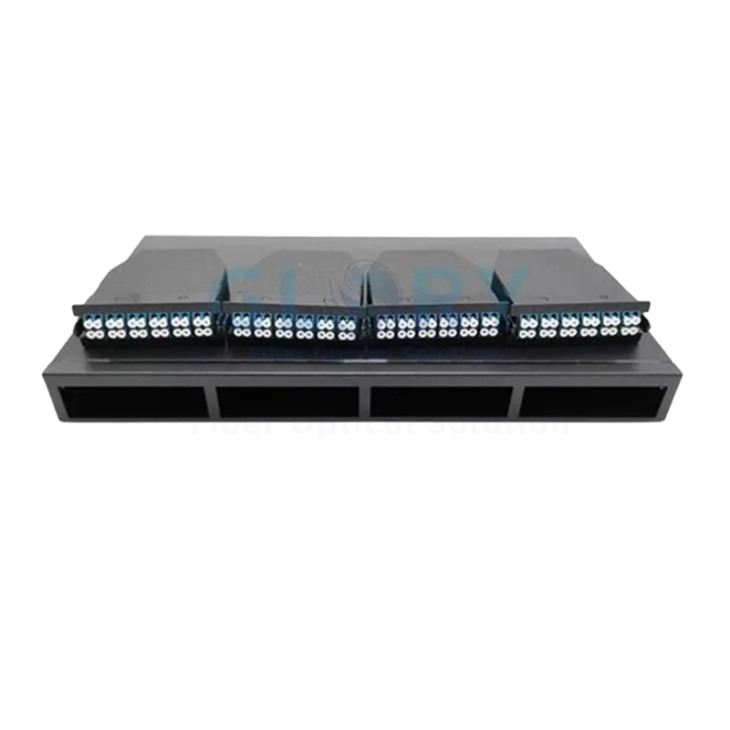

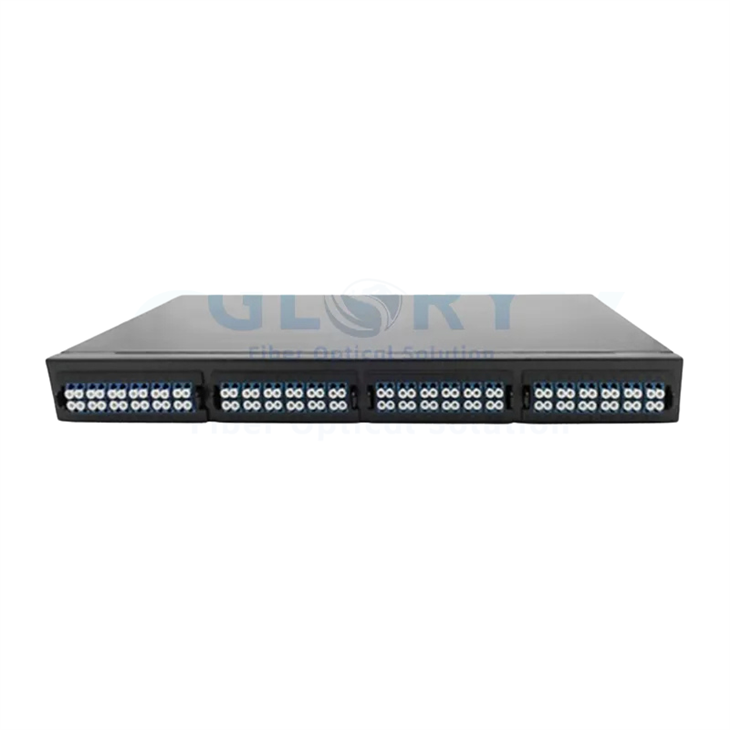

MPO/MTP ODF 19-Inch Rack - Max hold up to 4 MPO/MTP cassettes in a 19" rack-mount enclosure, 1U height. The patch panel is constructed from cold-rolled steel with a sprayed surface finish. The 4 cassettes are easy to insert and remove by hand; no screws are needed.
It provides an integrated solution for MPO/MTP data center applications, combining mixed fiber connection, storage, and management in one unit. Blank panels are included for unused ports within the patch panel. The 19-inch mounting brackets are adjustable, allowing the panel to be set further back in cabinet mounting frames. Panels in 1U, 2U, 3U, and 4U heights are available for fiber expansion.
Specifications：
|
MODEL |
GL-1U-4LGX/MPO ODF 19 Inch Rack |
|
Dimension (mm) |
430x250x1U |
|
Material |
Cold rolled steel |
|
Cable ports |
4 input, 96 output |
|
Max capacity |
96 Fibers |
|
Cassette qty |
4 pieces |
|
Cassette capacity |
24 fibers |
|
Connector type |
LC duplex coupler |
|
Color |
black |
Features of ODF 19 Inch Rack：
• Easy to install and operate
• 19'' standard structure
• Rack mount in ODF frames
• Available for installation of FC/SC/ST/LC adapters
• FTTX and FTTH solutions
Applications:
- Data communication applications
- Data Centre infrastructure
- Storage Area Network-Fiber Channel
- Emerging 40 and 100Gbps Protocols compatible
