2U LGX MPO patch panel

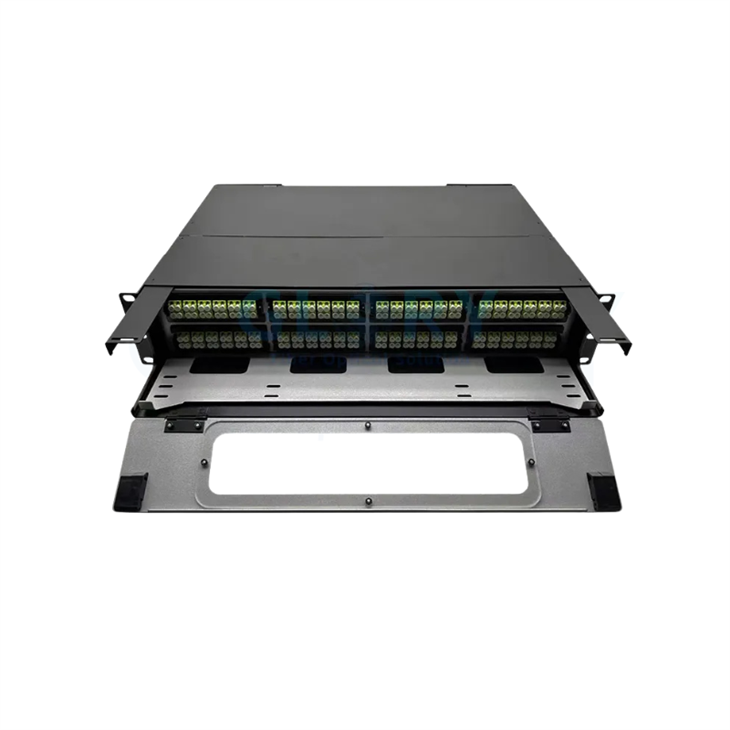

The 2U LGX MPO patch panel is constructed using cold-rolled sheet metal with a frosted finish, while the cassettes and adapter plates are made from high-quality plastic. Engineered for high-density fiber optic cabling systems, the MPO patch panel features modular cassettes housing MPO/MTP adapters. The 2U height allows for up to 192 ports in a standard 19-inch rack format.

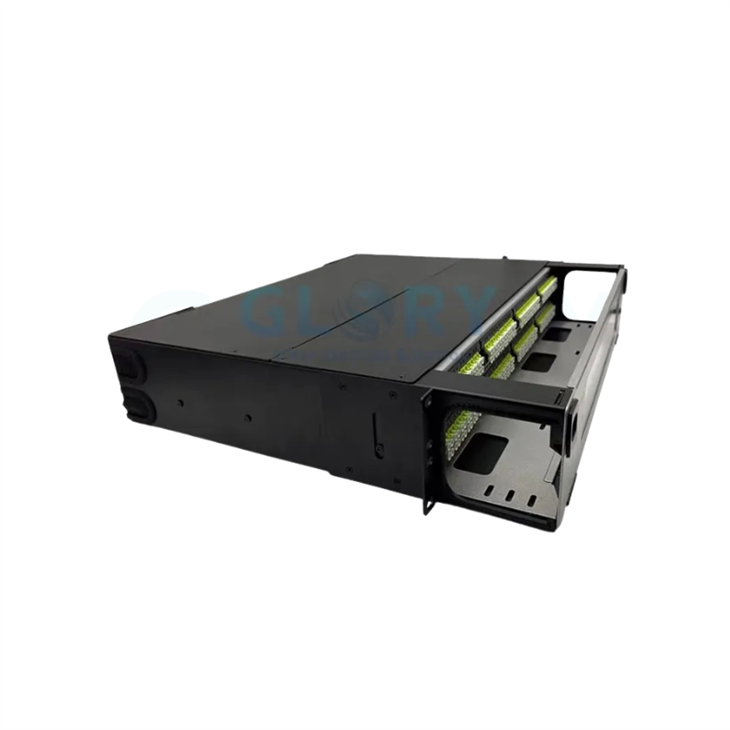

The internal structure complies with bend radius requirements to safeguard fibers during cabling. A dedicated fiber tray enables splicing, while a rear storage area ensures organized cable management. The hinged design swings out for easy access during installation and maintenance. Standard LGX MPO patch panels are available in 1U and 2U configurations (19-inch rack compatible). They support SC, FC, ST, and LC connectors.
Specifications
MTP/MPO Connector Specifications
|
Type |
Single Mode |
Single Mode |
Multi-Mode |
|||
|
(APC Polish) |
(UPC Polish) |
(PC Polish) |
||||
|
Fiber Count |
8,12,24 etc. |
8,12,24 etc. |
8,12,24 etc. |
|||
|
Fiber Type |
G652D, G657A1 etc. |
G652D, G657A1 etc. |
OM1, OM2, OM3 etc. |
|||
|
Max. Insertion Loss |
Elite |
Standard |
Elite |
Standard |
Elite |
Standard |
|
Low Loss |
Low Loss |
Low Loss |
||||
|
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.60dB |
|
|
Return Loss |
≥60 dB |
≥60 dB |
NA |
|||
|
Durability |
≥500 times |
≥500 times |
≥500 times |
|||
|
Operating Temperature |
-40℃~+80℃ |
-40℃~+80℃ |
-40℃~+80℃ |
|||
|
Test Wavelength |
1310nm |
1310nm |
1310nm |
|||
|
Insert-pull test |
1000 times＜0.5 dB |
|||||
|
Interchange |
＜0.5 dB |
|||||
|
Anti-tensile force |
15kgf |
|||||
Descriptions for 2U LGX MPO patch panel
|
Fiber Capacity of panel |
Max 192FO |
|
Panel Connector |
LC duplex |
|
Type |
Drawer type |
|
Dimension |
19''2U |
|
Material |
Cold Rolled Steel or Aluminum |
|
Storage Temperature |
-45~+65ºC |
|
Thickness |
0.6 0.8 1.0 1.2 1.5mm |
|
Accessories |
Cable ties, mounting ear screws, and spiral wrap tube |
|
MPO type |
SM: G652D, G657A1, G657A2 MM: OM1, OM2, OM3, OM4, OM5 |
|
Cable Cover |
LSZH |
|
Length |
0.3m, 0.5m |
Features of MPO Patch Panel:
• With a standardized LGX architecture, capacity can be expanded by adding modules
• Accommodates 12/24 fiber MPO connectors (male/female), which is critical for 40G/100G/400G networks.
• Place a lid on unused ports to prevent dust contamination.
• Flexible configurations can be adapted to different rack setups.
• Meets TIA/EIA-568, ISO/IEC, and GR-326-CORE standards.
• Marked areas to trace fibers and ports.
Application in Data Center:
In the data center, MPO (Multi-Fiber Push-In) patch panels are critical to enabling high-density, high-bandwidth fiber connectivity that supports modern infrastructure needs such as 40G, 100G, 400G, and the emerging 800G Ethernet standard. By consolidating multiple fibers (typically 12, 24, or more) into a single compact connector, MPO panels simplify cabling between servers, switches, storage systems, and top-of-rack (ToR) devices, minimize physical clutter, and optimize rack space in hyperscale or cloud environments. In addition, MPO patch panels simplify maintenance and troubleshooting with organized fiber management, reducing downtime and operational costs in mission-critical data center operations.
OEM/ODM Service：
If you want to display your own brand logo on goods such as cables, packaging bags, labels, or any other location, our OEM and ODM services are ready to accommodate this. Please contact our sales team to receive the best support.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
