Fiber Optical Multiport Terminal

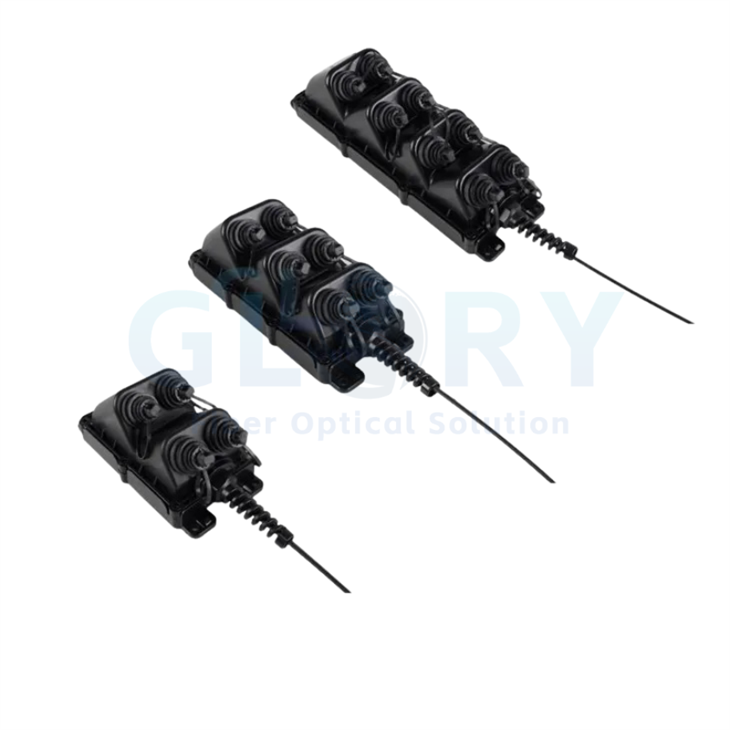

MST Fiber Optical Multiport Terminal

The​​ MST Fiber Optical Multiport Terminal (​​Model GL-MST01-12​​) Connectivity's FTTX infrastructure solutions are designed from the ground up to meet the unique requirements of FTTX networks. ​​Engineered​​ for operational efficiency and scalability, ​​Glory Optical's​​ FTTX solutions simplify network installation, maintenance, and management from the central office/head end to the outside plant.

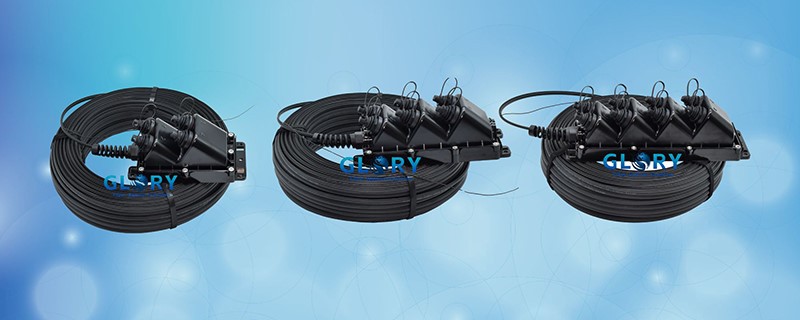

The Fiber Optical Multiport Terminal (​​MST box​​) incorporates ​​factory-terminated​​ hardened connector technology ​​built​​ to withstand rugged outside plant environments. These ​​specially designed​​ hardened connectors are ​​pre-terminated​​ and environmentally sealed for ​​deployment in optical drop cable systems​​. ​​Hardened cables​​ are environmentally ​​resistant​​, providing a reliable interface for fiber drop cables in outdoor installations. ​​This hardened connector system​​ dramatically reduces splicing labor requirements. ​​Additionally,​​ the rugged optical connectors ​​are​​ hardened to protect against extreme ​​temperatures​​, moisture, UV ​​exposure​​, chemicals, and other harsh conditions common in outside plant environments.

Specifications:

Cable Specifications:

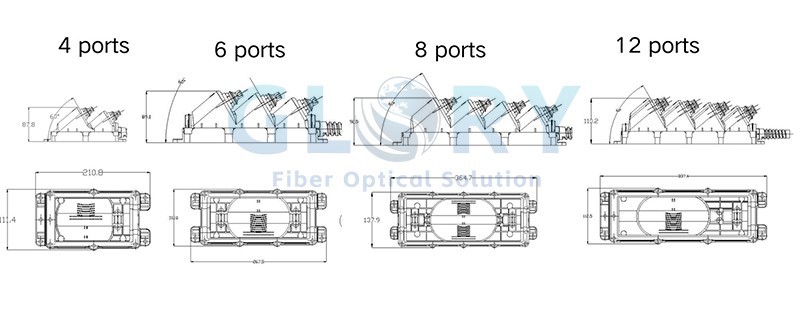

Structure drawing of MST Fiber Optical Multiport Terminal GL-MST01-12

Features:

• The Fiber Optical Multiport Terminal MST box is pre-assembled to minimize field adjustments and reduce the need for repeated on-site access.

• Optitap Hardened Connectors are factory-terminated and environmentally sealed for reliable optical drop cable deployments.

• Plug-and-play adapter ports enable rapid cable installation in the outside plant access points of the network.

• The terminal delivers robust environmental performance, withstanding extreme temperatures and harsh operating conditions.

• Factory-terminated, IP68-rated connectors ensure high-quality, high-performance durability in demanding environments.

• Flexible port configurations are available in 2, 4, 6, or 8 port options to suit diverse needs.

• A versatile mounting bracket supports a wide range of installation configurations for adaptable deployment.

Applications:

FTTX applications, Outside of the buildings and poles.

•The ultimate "Plug and Play" solution for durable and reliable service connection in the outside plant/drop segment of the network

•Technician-friendly and greatly simplifies installation and maintenance by minimizing splicing required on the distribution side of the network

• Cost effective solutions that provide for lower overall installed costs throughout the FTTX network

•Facilitates easy troubleshooting as maintenance can be done at the Fiber Optical Multiport Terminal MST box by simply unplugging a connector rather than breaking a splice or going directly to the side of the home

General Installation Information:

Fiber and Port Configuration

Depending on the ordered option, the MST FiberHub Fiber Optical Multiport Terminal is equipped with 2, 4, 6, 8, or 12 optical ports. The port numbers are molded onto the MST enclosure. The fibers in the distribution cable are color-coded to match their corresponding optical ports. The table below lists the port numbers and the colors of the associated optical fibers for different versions of the MST.

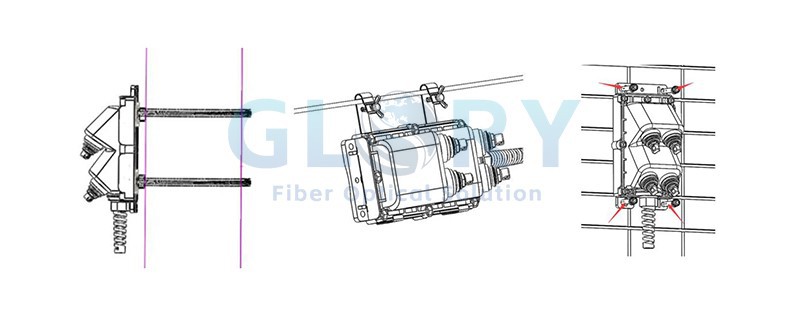

Pole/Aerial/Wall Mounting Fiber Optical Multiport Terminal:

FAQ:

1 Hardened Connector Technology vs. Field Splicing

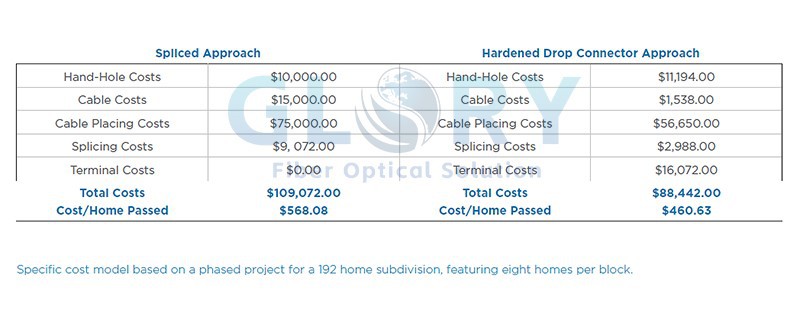

A cost model comparing the installation costs of traditional spliced FTTX architecture with one that incorporates MST hardened connector technology in a 192-home subdivision is ​​presented​​ below. Using the Fiber Optical Multiport Terminal model, cable costs decreased by over 85%, primarily because the cable is now included in the terminal costs. The cost of pulling fiber cables decreased by about 25%, and splicing costs ​​decreased​​ by about 70%. Even though the MST approach ​​incurred​​ additional costs for service terminals, the overall cost was significantly lower for the distribution side of the network-approximately 19% less per home passed.

The drop cable portion of the network, between the service terminals and the ONTs, also ​​offers​​ many advantages through ​​the use of​​ a hardened drop connector approach. Technicians can use a pre-connectorized drop cable, ​​which is pre-connectorized​​ at both ends in the factory and cut to specific lengths, ​​to install it​​ between the service terminal and the home. These cables can be installed by any technician, possibly the same person ​​who connects​​ the electronics at each home. This greatly reduces the cost of drop cable installations in terms of time ​​and required skill level​​. A technician simply has to clean the connector ​​faces​​ at each end and plug them in.

The overall cost of using factory-connectorized drop cables in place of spliced bulk drop ​​cable installations​​ was at least 25% less. Since service providers can ​​achieve​​ combined savings of nearly 25% in the entire OSP portion of the fiber plant, the business case for the architecture that incorporates MST hardened connectors is compelling.

Furthermore, additional operational savings can be ​​gained​​ over the life of the network. The operational cost savings ​​gained​​ from having a connectorized FTTX infrastructure ​​become​​ evident in terms of faster service ​​turnup​​, ease of maintenance and troubleshooting, the need for fewer splice ​​technicians and equipment​​, and overall fewer truck rolls. Overall, the hardened drop connector approach ​​results in​​ lower total installed costs for the FTTX network.
