Quick Product Summary
| Product Name | Optical Fibre Cable Distribution Box |
|---|---|
| Model | GL-H16X |
| Application | FTTH / FTTx fibre termination, distribution, splicing, cable branching, and subscriber access management |
| Maximum Capacity | 16 cores / 16 SC/APC adapter positions |
| Dimension | 300 × 210 × 105 mm |

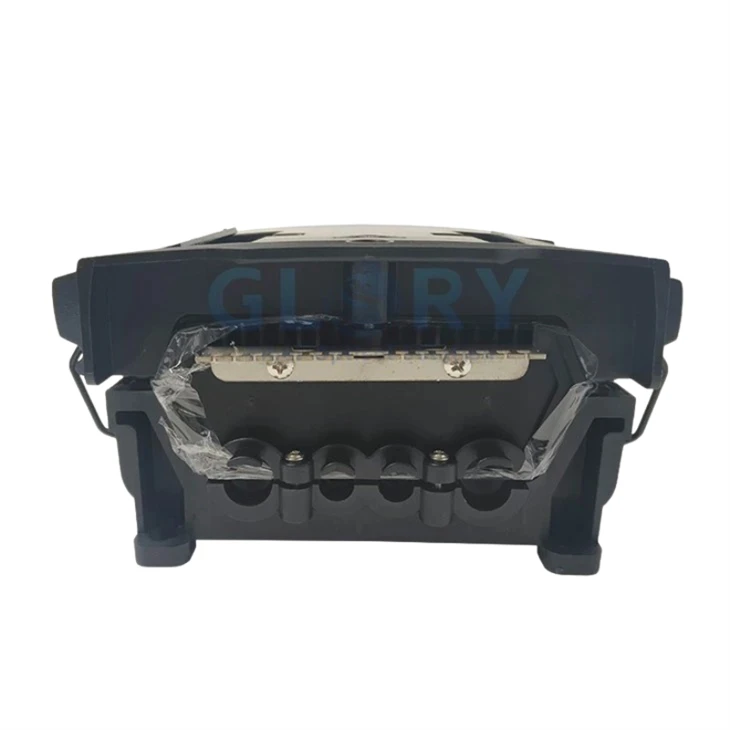

| Cable Entry | Maximum cable diameter 12 mm × 4 pcs |
| Installation | Wall-mounted or pole-mounted installation |
| Protection Class | IP67 |
| OEM Support | Logo printing, adapter configuration, splitter configuration, accessory kit, labeling, and bulk carton packaging |

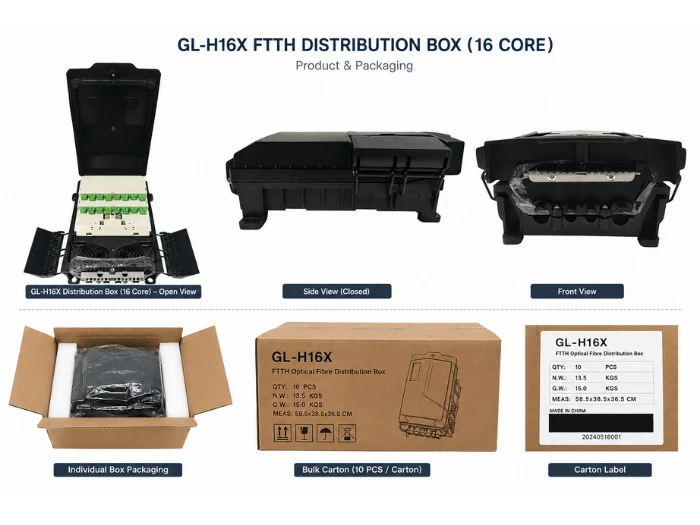

Product Overview
The GL-H16X optical fibre cable distribution box is a wiring line device for user distribution in FTTH systems. It provides physical protection and fibre management for incoming and outgoing fibre cables, and it can be used for cable termination, branching, splicing, cross-connection, and distribution.
In an FTTH ODN network, the box works as a termination node between feeder cable and drop cable. It helps installers organize fibre routing, protect splice points, allocate subscriber circuits, and keep the distribution point accessible for later maintenance.
The product can be used as either an indoor or outdoor fibre distribution enclosure depending on the installation environment. Its compact wall-mounted or pole-mounted structure is suitable for residential FTTH access, small building access, and FTTx project deployment.
Configuration Table
| Model | Box Size A × B × C | Max Capacity | Installation Size D × E × F | Largest Cable Diameter |
|---|---|---|---|---|
| GL-H16X | 300 × 210 × 105 mm | 16 SC/APC | 190 × 227 × 142 mm | 12 mm × 4 pcs |
Environmental Parameters
| Operating Temperature | -40℃～+65℃ |
|---|---|
| Relative Humidity | ≤85% at +30℃ |
| Atmospheric Pressure | 70 KPa～106 KPa |
| Protection Class | IP67 |
Internal Structure and Fibre Routing

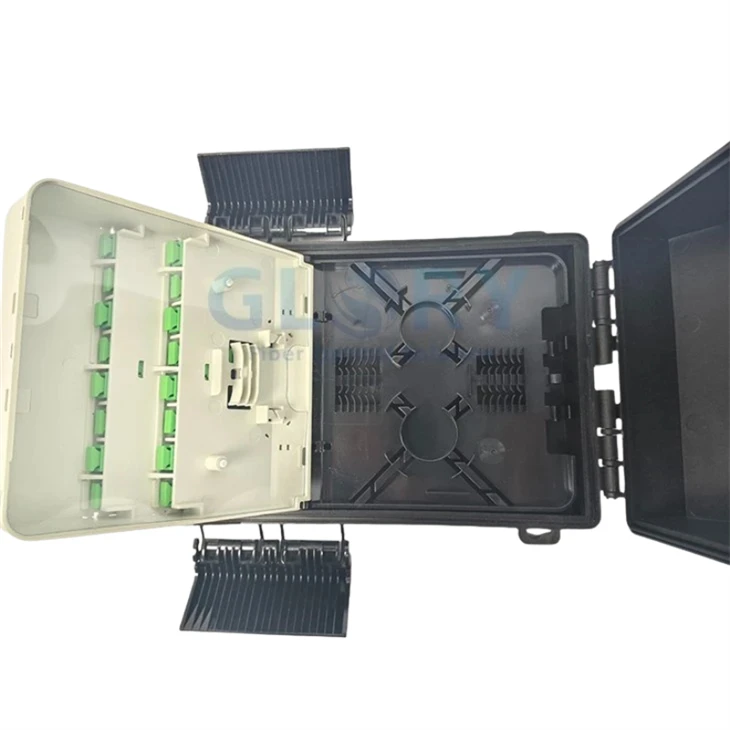

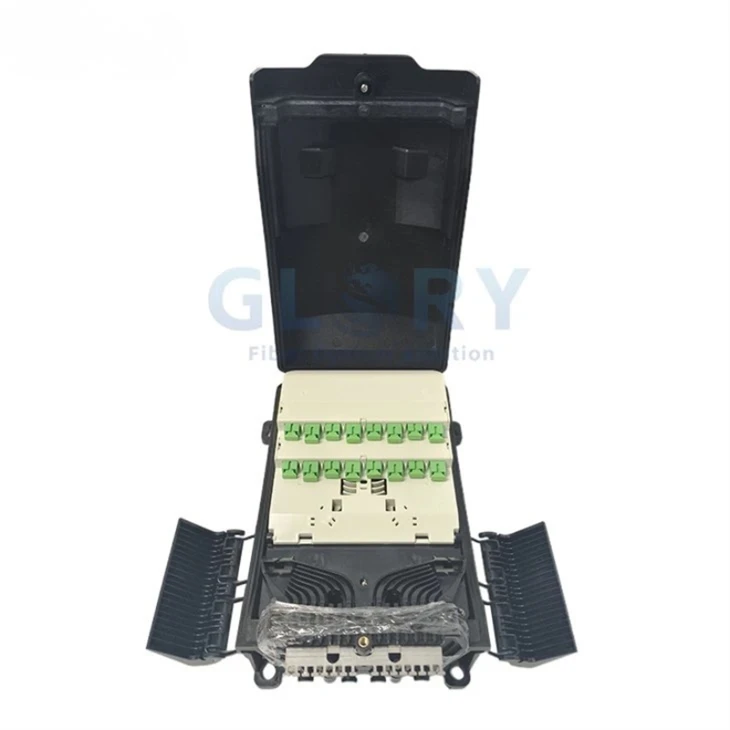

The GL-H16X is designed to support organized fibre storage and routing inside the enclosure. Feeder cable and drop cable can be clamped and fixed inside the box, while fibres are routed to the splice tray, adapter plate, or splitter area according to the project configuration.

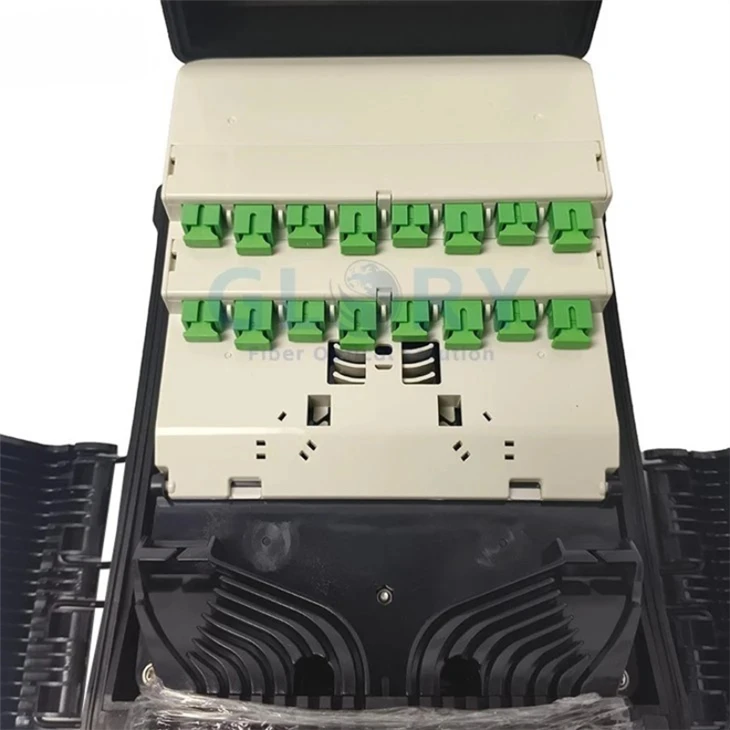

Adapter Plate Area
The adapter plate helps arrange SC/APC adapter positions for subscriber drop connection and clearer port identification during installation and maintenance.
Stacked Splice Tray
The built-in stacked splice tray can be opened and removed, making it easier for installers to complete fibre splicing, inspection, and later maintenance.
Key Features
Outdoor-Ready Protection
IP67 enclosure design supports outdoor FTTH and FTTx distribution points where dust and moisture protection are required.
16 Core Subscriber Distribution
Supports up to 16 SC/APC positions, making it suitable for small FTTH distribution areas, building access, and subscriber drop cable management.
Wall or Pole Installation
The enclosure can be installed on a wall or fixed to a telecom pole, allowing flexible deployment in different field environments.
Main Specification
| Insertion Loss | ≤13.5 dB |
|---|---|
| UPC Return Loss | ≥50 dB |
| APC Return Loss | ≥60 dB |
| Insulation Resistance | Between grounding device and metal parts of the box: no less than 2×104 MΩ / 500 V DC |
| Voltage Resistance | Between grounding device, box, and metal parts: no less than 3000 V DC / min, no puncture, no flashover |
Typical Applications
This optical fibre cable distribution box is suitable for FTTH and FTTx access networks where feeder cable, drop cable, adapters, splicing, and subscriber port management need to be integrated into one compact enclosure.
FTTH subscriber access distribution
Outdoor optical fibre distribution point
Feeder cable to drop cable termination
Building fibre access and small residential distribution
FTTx network branching and cross-connection
Wall-mounted fibre distribution node
Pole-mounted fibre access terminal
Installation Methods
Wall-Mounted Installation
- Mark the mounting hole positions according to the installation size.
- Drill four holes into the wall.
- Insert expansion bolts Φ7.5 × 40.
- Align the box with the holes.
- Fasten the enclosure with suitable bolts.
Pole-Mounted Installation
- Prepare the pole mounting ring or stainless steel band.
- Position the box at a suitable working height.
- Fix the mounting ring to the telecom pole.
- Secure the cable entry direction and bending route.
- Complete cable clamping, sealing, and port labeling.
Cable Management and Field Use Notes
For stable long-term optical performance, the box should be installed with careful cable fixing, fibre routing, port labeling, connector cleaning, and sealing inspection before project handover.
- Keep feeder cable and drop cable fixed before fibre routing.
- Do not bend fibres below the project-specified minimum bend radius.
- Route fibres clearly through the tray and adapter plate to avoid crossing and stress.
- Label adapter ports and drop cable outputs for future maintenance.
- Inspect sealing points after cable entry and before final cover closing.
- Clean and inspect connector end faces before mating.
- Record port allocation and splice information for as-built documentation.
OEM and Bulk Order Support
Glory Optical can support project-based supply for GL-H16X optical fibre cable distribution boxes, including adapter configuration, splitter configuration, mounting accessories, labeling, logo printing, and carton packaging according to customer requirements.
Available Configuration Options
SC/APC adapter configuration
SC/UPC or project-specific adapter option
Optional PLC splitter configuration
Wall-mounting or pole-mounting accessories
Port label and cable label support
Neutral or customized logo
Individual packaging or bulk carton packaging
Project BOM support for FTTH / FTTx deployment
Information Needed for Quotation
| Required Information | Example |
|---|---|
| Quantity | 100 pcs / 500 pcs / 1,000 pcs |
| Adapter Type | 16 × SC/APC simplex |
| Splitter Requirement | No splitter / 1×16 PLC splitter / project-specific |
| Installation Method | Wall-mounted / pole-mounted |
| Cable Diameter | 12 mm feeder cable, drop cable specification |
| Logo Requirement | Neutral / printed logo |
| Packaging | Individual carton / bulk carton |
| Destination Country | For freight quotation |
FAQ
Q: What is the GL-H16X optical fibre cable distribution box used for?
A: It is used as a fibre termination and distribution point in FTTH and FTTx networks. It helps connect feeder cable to drop cable, manage splicing, organize adapters, and protect fibre routing inside the enclosure.
Q: How many fibres can this distribution box support?
A: The GL-H16X supports up to 16 cores and 16 SC/APC adapter positions according to the current product configuration.
Q: Can this box be installed outdoors?
A: Yes. The product has an IP67 protection class and is suitable for outdoor FTTH and FTTx distribution applications when installed and sealed correctly.
Q: Does it support wall-mounted and pole-mounted installation?
A: Yes. The product is suitable for wall-mounted and pole-mounted installation. The required mounting accessories can be supplied according to the project requirement.
Q: What is the box size?
A: The box size is 300 × 210 × 105 mm, with an installation reference size of 190 × 227 × 142 mm.
Q: What cable diameter does it support?
A: The current configuration table lists the largest cable diameter as 12 mm × 4 pcs.
Q: Can a PLC splitter be installed inside?
A: The box can be configured for distribution or splitter-based functions depending on the project design. Splitter requirement should be specified when requesting a quotation.
Q: Can the product be customized for OEM orders?
A: Yes. OEM support can include logo printing, adapter configuration, splitter configuration, labeling, accessory kits, and bulk carton packaging.
