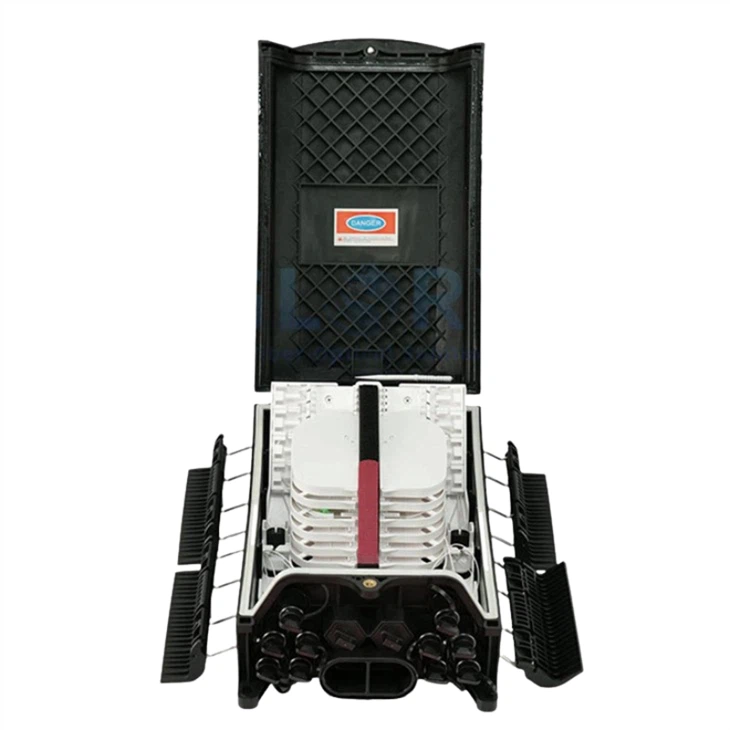

IP68 Outdoor Fiber Optic Termination Box
The Outdoor Fiber Optic Termination Box is a half-style closure that is mechanically sealed and pre-connected as a horizontal connector box. Its single-ended design is typically used as a hub box node in an unequal ratio fully pre-connected solution, converting traditional optical cables to single core pre-connected SC/APC output ports.
Technical Index:
|
Model No. |
GL-JW003-10R |
Color |
Black |
|
Capacity |
10 cores |
Protection rating |
IP68 |
|
Material |
PP+GF |
Inlet/outlet |
2/10 |
|
Dimension (MM) |
355x215x132 |
Weight |
2.27kg |
|
Model No. |
GL-JW003-16R |
Color |
Black |
|
Capacity |
16 cores |
Protection rating |
IP68 |
|
Material |
PP+GF |
Inlet/outlet |
2/16 |
|
Dimension (MM) |
355x215x145 |
Weight |
2.47kg |
A larger version overview:
Features:
• The Outdoor Fiber Optic Termination Box features a clamshell design with a mechanical seal. The rear of the box incorporates a reinforced backplate, simplifying pole mounting (using the integrated hoop). An optional backplate is also available.
• Offers plug-and-play functionality: utilizes pre-connectorized drop cables, eliminating fusion splicing and the need to open the box during service connection.
• Features quick-insert ports that secure and seal the optical cable externally for fast installation.
• Supports versatile mounting: pole-mount (using the hoop), wall-mount, or strand-mount (aerial cable).
• Suitable for diverse installation environments: above-ground (aerial), underground, manholes, and handholes.
• Material: PP+GF (Polypropylene + Glass Fiber). Provides moisture resistance, waterproofing, dustproofing, anti-aging properties, and achieves a protection rating of IP68.
Structure:
Specifications:
|
Model No. |
GL-JW003-10R |
GL-JW003-16R |
|
Wiring Capacity (SC/APC Waterproof adapter) |
10 |
16 |
|
Splicing capacity (unit: core) |
72 |
|
|
PLC Splitter |
2 pcs of 1:8 or 1 pcs 1:16 |
|
|
Type of splicing tray |
R021 and R022 |
|
|
Splicing capacity per tray |
12 core and 2 pcs PLC (1:4 or 1:8 or 1:16) |
|
|
Optical cable entrance and exit |
1 PCS port suitable for Φ 6-18 mm straight-through cable |
|
|
2 PCS ports suitable for Φ 5-12mm branching cable |
||
|
10 SC/APC Waterproof adapter |
16 SC/APC Waterproof adapter |
|
|
Installation mode |
Pole/wall-mounting, aerial cable-mounting |
|
|
Application scenario |
Overground, underground, manhole/hand hole |
|
|
Materials |
Plastic: Reinforced PP Metal: Stainless steel 304 |
|
|
Impact resistance rating |
IK10 |
|
|
Sealing mode |
Mechanical |
|
|
Adaptor Type |
SC/APC Waterproof adapter |
|
Environmental Parameters:
|
Storage temperature |
-40℃～+65℃ |
|
Operating temperature |
-25℃～+70℃ |
|
Relative humidity |
0%～93% (+40℃) |
|
Atmospheric pressure |
70kPa～106kPa |
Performance Parameters:
|
Adapter |
Adapter insertion loss |
≤ 0.2 dB |
|
Reseating durability |
>500 times |
Splicing Tray Structure for Outdoor Fiber Optic Termination Box:
Specifications:
|
Item |
R021 |
R022 |
|
Splicing capacity per tray (core) |
12 |
12 |
|
PLC installation capacity |
2PLC (1:4 or 1:8) / 2 pcs of 1:8 |
1PLC ( 1:16 ) |
|
Dimensions (HxWxD mm) |
133 x 125 x 8 |
133 x 125 x 8 |
|
Net weight (g) |
27 |
27 |
|
Material |
PC+ABS |
PC+ABS |
|
Color |
White |
White |
Installation type:
•Wall-mounted installation
•Pole-mounted installation
•Wire messenger installation
•Fiber storage bracket installation
