18 Ports Ftth Pre-connectorized Terminal Box

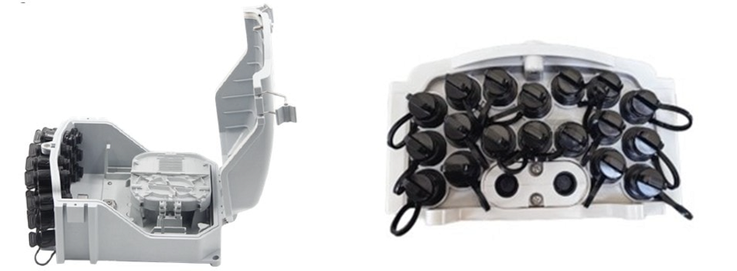

The Ftth Termination Box GL-FTB-18D is used as a termination box for the feeder cable to connect with drop cable in FTTx communication network systems. Fiber splicing, splitting, and distribution can be performed in this box. It provides solid protection and management for FTTx network construction. This pre-connectorized termination box can accommodate 18 FTTH subscriber access points.
Product Details:
|
Model |
GL-FTB-18D |
Color |
Grey, Black, White. |
|
Capacity |
18 pcs waterproof Mini SC APC+24F Splice |
Protection Level |
IP55 Indoor/Outdoor |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|

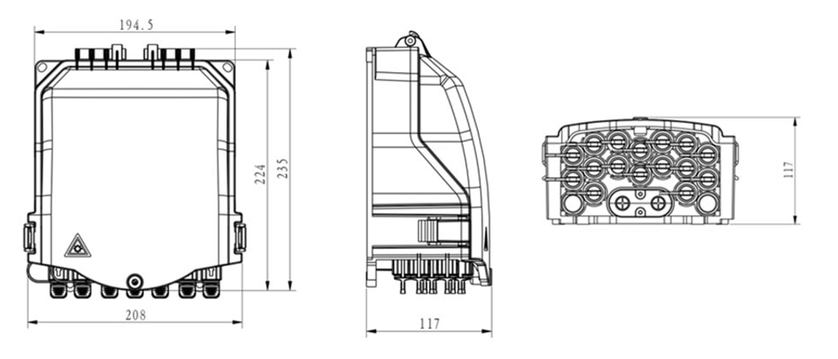

Dimension (LxWxD) |
235x208x117mm |
Suitable Splitter |
1:8 or 2:8 or 1:16 or 2:16 Blockless PLC Splitter |
|
Input Cable OD |
1 mid span (Φ16mm Max) |
Output Adapter |
18xMini SCAPC waterproof adapter |
|
Installation Method |
Wall, Pole mounted |
Insertion loss |
≤0.2dB(1310nm & 1550nm) |
Features of Ftth Termination Box:
• Fully enclosed structure.
• Material: PC+ABS; Properties: Wet-proof, waterproof, dustproof, anti-aging.
• Integrated functions: Clamps for feeder cable and drop cable, fiber splicing, splice fixation, storage, and distribution.
• Cable separation: Feeder cables, pigtails, and patch cords run through separate pathways without interference; Supports micro-type PLC splitter installation; Enables easy maintenance.
• Access design: Distribution panel flips up; Feeder cable entry via dedicated access port, facilitating maintenance and installation.
• Mounting: Wall-mounted or pole-mounted installation; Suitable for both indoor and outdoor use.

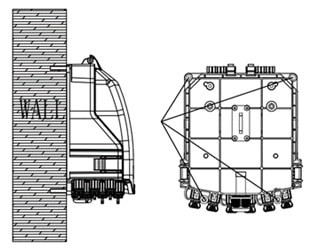

Wall-mounted Installation:
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the FTTH termination box to match up the holes and use bolt to fasten.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
