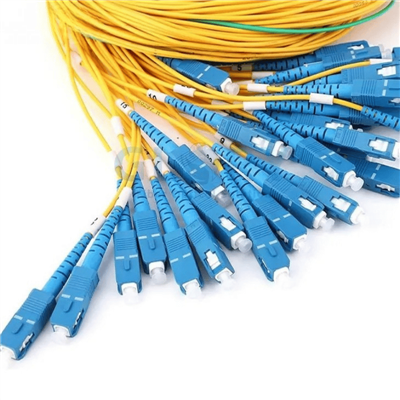

The Right PLC Splitter for Every FTTH Scenario: A Practical Selection Guide

Why PLC Splitters Have Become the Industry Standard

Before the dominance of PLC technology, FBT (Fused Biconical Taper) splitters were the go‑to choice. They are made by twisting and fusing fibers together, which works fine for small split ratios but becomes problematic as the network scales. FBT splitters are more wavelength‑sensitive, less uniform across output ports, and less stable under temperature extremes.

PLC splitters, on the other hand, are fabricated using semiconductor manufacturing processes. A silica waveguide circuit is etched onto a silicon chip, creating a precise optical path that divides the incoming signal into perfectly balanced outputs. The result is a device that:

• Works across a wide wavelength range (1260–1650 nm)

• Maintains excellent splitting uniformity (typically ≤0.6 dB)

• Performs reliably from -40°C to +85°C

• Scales cleanly up to 1×64 or even 1×128 splits

In FTTH, PON, and data center applications, PLC splitters have become the default choice wherever performance and reliability are non‑negotiable.

The Numbers That Actually Matter

When comparing PLC splitters from different suppliers, three technical metrics deserve your attention. Here is what good performance looks like for a 1×8 splitter, but the principles apply across all split ratios.

Insertion Loss – This is the optical power lost as the signal passes through the splitter. Lower is better. For a high‑quality 1×8 splitter, expect insertion loss around ≤10.5 dB. A 1×32 splitter will typically show ≤16.5 dB, while 1×64 can reach ≤20.5 dB. Understanding these numbers is essential for calculating your network's optical budget. A typical GPON system has a power budget of about 28 dB between OLT and ONT. If your splitters alone consume 20 dB of that, you have very little margin left for fiber attenuation and connector losses.

Uniformity – This measures how consistent the output signals are across all ports. A uniformity of ≤0.6 dB ensures that the home connected to port 1 gets roughly the same signal strength as the home connected to port 32. In large‑scale deployments, poor uniformity creates service disparities that are difficult to troubleshoot. For example, if one port loses 0.5 dB more than the average, that port will have noticeably less margin for future degradation – and that customer will be the first to experience intermittent problems when the fiber gets dirty or the temperature drops.

Return Loss and Directivity – Return loss (≥55 dB) measures how well the splitter reflects unwanted signals back to the source. Directivity (≥55 dB) prevents signals from leaking between output ports. Both metrics matter in high‑quality networks. Poor directivity can cause crosstalk between subscribers on the same PON branch – a rare but real failure mode.

Choosing the Right Packaging: A Decision Tree

This is where many engineers get stuck. The splitter chip itself is the same; the difference is how it's packaged, which determines where and how you can install it. Below are the four most common packaging types, each with a clear "best‑fit" scenario.

Bare Fiber PLC Splitter – for Tight Spaces and Custom Splicing

As the name suggests, a bare fiber splitter has no housing and no connectors on the ends. Input and output fibers are exposed as 250 μm or 900 μm pigtails. Its size advantage is obvious: it takes up almost no space, making it ideal for installation inside splice closures, terminal boxes, or any enclosure where you are already doing fusion splicing.

When to choose this: You are building a small distribution node inside an existing splice closure where every millimeter counts. The splitter will be spliced directly to feeder and drop fibers, so connectors would be redundant. Avoid this type if your field crew has no experience handling exposed 250 μm fibers – they are delicate and easily broken.

Blockless (Mini Module) PLC Splitter – the Sweet Spot for Distribution Boxes

Sometimes called a mini module or blockless splitter, this packaging offers a middle ground between bare fiber and full enclosure. It provides stronger fiber protection than bare fiber while remaining compact enough to fit into small distribution boxes. The blockless design typically has 0.9 mm buffer fiber pigtails and can be installed in various connection boxes, network cabinets, or even inside splice closures when some protection is needed but a full ABS box would be too large.

When to choose this: You are deploying a medium‑density cabinet or a handhole terminal where space is tight but some cable management is required. The 0.9 mm pigtails give you enough handling strength without the bulk of a full plastic box.

ABS Box PLC Splitter – for Wall‑Mount and Outdoor Cabinets

The ABS box splitter houses the splitter chip in a compact plastic enclosure (typically around 100×80×10 mm for smaller split ratios) with pigtails exiting both ends. Some versions integrate SC/APC adapters directly into the housing, turning the splitter into a plug‑and‑play device.

These are the workhorses of FTTH distribution. They are rugged enough for outdoor cabinets, compact enough for wall‑mount enclosures, and versatile enough to accommodate both splicing and connectorized inputs. Many operators standardize on ABS box splitters for all outdoor plant applications because they strike a good balance between protection, cost, and ease of handling.

When to choose this: You need a rugged, standalone splitter that can be mounted with cable ties or screws inside a standard FTTH distribution box. The connectorized version (with SC/APC adapters on the input and output) is particularly useful when field technicians are not experienced with splicing.

Plug‑in (Cassette) Type – for ODF and High‑Density Rack Environments

For central offices, data centers, and headend facilities, the plug‑in or cassette splitter is the right choice. These splitters are housed in a modular cassette that slides into a 19‑inch rack panel (often LGX‑compatible) alongside patch panels and other passive components.

When to choose this: You are centralizing all splitting in a telco central office or a headend. The modular design allows you to add or replace splitters without disrupting existing terminations, and the cassette form factor keeps the ODF clean and professional.

Centralized vs. Distributed Splitting: The Architecture Question

Beyond the splitter itself, you must decide how to distribute splitting across your network. This is a fundamental FTTH design choice that affects fiber usage, deployment cost, and maintenance complexity.

In a centralized (single‑stage) architecture, a single large splitter (1×32 or 1×64) is installed at the OLT site or in a nearby cabinet. Every subscriber's fiber runs all the way back to this single splitter. This maximizes OLT port utilization and simplifies troubleshooting. However, it consumes far more fiber in the distribution network because each home needs a dedicated fiber from the splitter point.

In a distributed (cascade) architecture, splitting happens in two stages. A 1×4 or 1×8 splitter is placed at a primary distribution point, and secondary 1×8 or 1×16 splitters are installed closer to the subscribers. This requires less fiber overall but introduces more splice points and slightly higher cumulative loss. The loss of a cascade design can be roughly estimated by adding the insertion losses of the primary and secondary splitters. For a typical 1×8 + 1×8 cascade, the total loss is about 10.5 dB + 10.5 dB = 21 dB, which is still within GPON budget for short to medium distances.

How to decide – In dense urban areas with high subscriber density, centralized splitting often works well because the feeder fibers are short. In sprawling suburban or rural networks, distributed splitting reduces the amount of fiber you need to bury. There is no universal "right" answer – it depends on your specific geography and capex constraints.

A Closer Look: Glory's PLC Splitter Portfolio

Glory offers a full range of PLC splitters covering the most common packaging types and split ratios used in FTTH projects today. While the exact models vary, the portfolio includes:

The Bare Fiber PLC Splitter series provides the most compact solution for installers who plan to splice directly into existing distribution boxes or splice closures. Available in symmetrical split ratios from 1×2 up to 1×64, with input and output pigtails in 250 μm or 900 μm configurations. These are often used in micro‑duct cable systems where space is at a premium.

For applications requiring stronger fiber protection without sacrificing space, the Blockless (Mini) PLC Splitter delivers a durable low‑profile solution suitable for network cabinets and distribution boxes, with the option of 0.9 mm buffer fiber pigtails. This type has become very popular for street cabinet deployments because it survives rough handling during installation.

The ABS Box PLC Splitter line is designed for wall‑mount and outdoor cabinet installations. These compact enclosures (various dimensions depending on split ratio) feature 2.0 mm or 3.0 mm jacketed pigtails and are available with or without pre‑installed SC/APC adapters. Splitting ratios range from 1×4 to 1×64, covering both centralized and distributed architectures. The connectorized version (with input and output adapters) allows technicians to perform plug‑and‑play swaps in minutes, which is a major advantage for maintenance crews.

For central office and rack‑mount environments, the LGX Cassette and 1U Rack Mount PLC splitters provide a standardized modular interface. These plug‑in cassettes fit seamlessly alongside other rack equipment, making them the preferred choice for large‑scale headend deployments. Many operators use these cassettes in their central office ODFs to supply split signals to multiple GPON ports.

Common Mistakes and How to Avoid Them

Even experienced engineers sometimes make avoidable errors when selecting or installing PLC splitters. Here are a few real‑world pitfalls.

Mistake 1: Ignoring the pigtail length – Some splitters come with very short pigtails (e.g., 1 meter). If your distribution box has its input port on the opposite side, you may end up needing a splice extension. Always check the pigtail length against your enclosure's layout.

Mistake 2: Using bare fiber splitters in field cabinets – Bare fiber splitters are meant to be inside a protective housing. If you place a bare fiber splitter directly inside an unsealed cabinet, moisture and dust will eventually attack the 250 μm fiber coating, leading to micro‑bending loss. This is a common cause of intermittent failures that are hard to find.

Mistake 3: Over‑specifying split ratio – A 1×64 splitter might look like it gives you the most capacity, but it also has the highest insertion loss (typically ≥20.5 dB). Unless you have very short drop distances and high‑power optics, you may run out of power budget. Many successful FTTH networks use 1×32 as a maximum, with 1×16 for more rural areas.

Mistake 4: Forgetting environmental ratings – Not all ABS boxes are created equal. For outdoor cabinets, ensure the splitter's housing is rated for the expected temperature range and UV exposure. For underground handholes, you need IP68 protection. A basic indoor ABS box will crack within a year in direct sunlight.

Mistake 5: Not cleaning connectorized splitters before deployment – A connectorized splitter that comes directly from the factory may still have dust on the end faces. A 0.3 dB loss caused by a dirty connector is easily avoidable with a simple cleaning step. Make it part of your installation procedure.

A Simple Decision Framework

If you are uncertain which splitter to pick, walk through these steps:

1.Determine your network architecture – Centralized or distributed? What split ratio does your power budget allow? If you don't know, start with 1×32 – it is the most common starting point for GPON.

2.Identify the installation environment – Splice closure, street cabinet, central office rack, or handhole? Match the packaging to the environment using the table above.

3.Choose between splice‑on and connectorized – Will field technicians splice the pigtails, or will they use pre‑connectorized jumper cables? Connectorized splitters cost more but save installation time.

4.Check the accessory needs – For rack‑mount splitters, do you have the right adapter panels? For bare fiber splitters, do you have heat‑shrink sleeves and splice trays ready?

5.Order a sample first – Before buying hundreds of splitters, order 5–10 units. Install them in your actual working environment. Check the insertion loss with an OTDR. If the numbers match the datasheet and the fit is correct, then scale up.

The Right Splitter Is the One That Fits Your Real Job

The best PLC splitter isn't always the one with the lowest insertion loss or the smallest price tag. It's the one that fits seamlessly into your specific deployment scenario. When the packaging matches the enclosure, the split ratio matches the optical budget, and the pigtail length matches your box layout, a humble passive component quietly does its job for twenty years without a single complaint.

That is the real measure of a good splitter.
