Wedge type tension clamp H3 anchor clamp

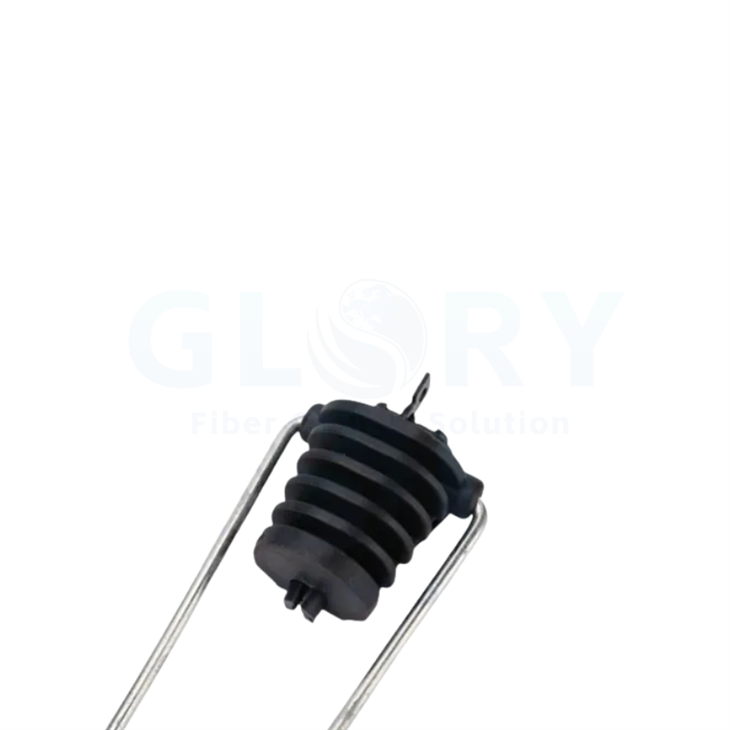

The H3 fiber optic cable dead clampis engineered for securing round cables (4–7 mm diameter) and "figure-8" suspension cables with external load-bearing elements. Its modular design integrates a UV-resistant plastic body, polymeric wedges, and a hot-dip galvanized steel loop, enabling tool-free manual installation on utility poles via hooks or brackets. This clamp is also compatible with ADSS fiber optic cables, electrical conductors, and aerial self-supporting cables, making it ideal for diverse overhead line systems
This cable protection device achieves secure anchoring and reliable protection through innovative modular design. Its four-step standardized workflow-wedge-shaped positioning, cable precise insertion, adaptive clamping, and steel ring reinforcement-ensures zero damage to the cable sheath during installation.
Field tests demonstrate operational stability across -50°C to +150°C and pH 2–12 corrosive environments. The modular splicing technique reduced installation time for 2,000 anchor points from 15 to 6 days in a transmission line upgrade project.
Our products
Installation Technology.
During the installation phase, the fiber optic cable dead clampis structure automatically aligns the cable axis through mechanical guidance, dispersing initial anchoring stress.
The self-tightening wedge mechanism utilizes elastic components to dynamically compensate for thermal expansion or external tensile forces, maintaining local pressure below the sheath's tolerance threshold.
The steel ring insertion stage employs pre-stressed threaded locking technology, enhancing tensile strength by 40% and making it ideal for vibration-prone overhead line scenarios.
Performance and Application Value.
In extreme conditions (e.g., hurricanes, heavy impacts), the device prioritizes cable protection through multi-stage energy dissipation mechanisms.
Its core design features a high-ductility alloy steel body with a preset yield strength of 1.2–1.5 times the cable's breaking force, enabling absorption of over 80% of impact energy during overload.
As a critical component for power system disaster prevention, this device integrates mechanical optimization and material science breakthroughs, reducing failure rates while lowering maintenance costs. Its parameters fully comply with GB/T 12706.3-2020, offering innovative solutions for high-altitude and high-wind power transmission.
Application
Terminal Tower Fixation
The JBG-2 anchor clamp secures ADSS cables at terminal towers, where the cable transitions from aerial to ground-based
infrastructure.
01
Angle Tower Support
Installed on towers with >25° angles, the clamp distributes mechanical loads evenly across the cable's diameter.
02
Long-Span Suspension
For spans exceeding 800 meters, the JBG-2 anchor clamp is paired with pre-twisted tension clamps to anchor cables mid-span.
03
Cable Entry to
Substations
At substation entry points, the clamp anchors ADSS cables transitioning from aerial to indoor conduits.
04
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
