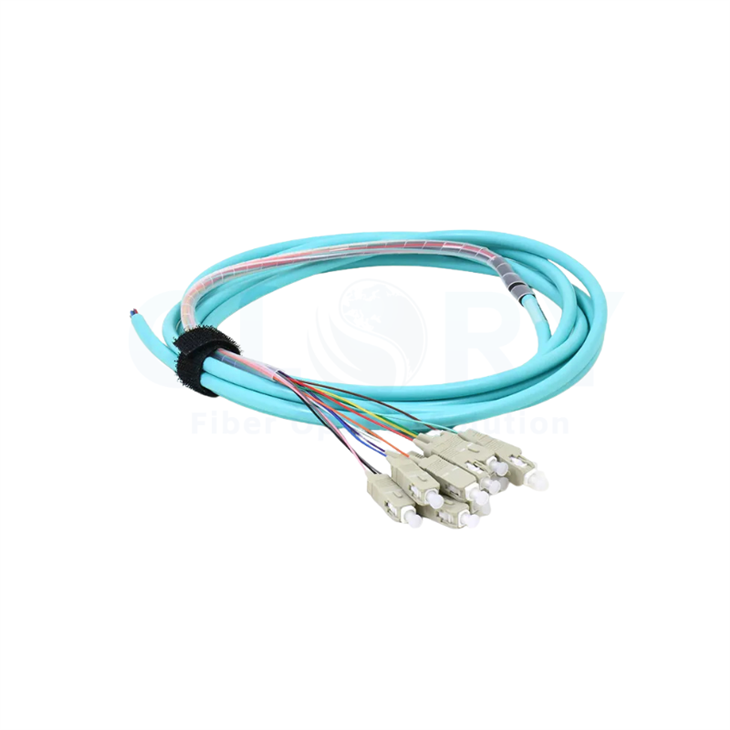

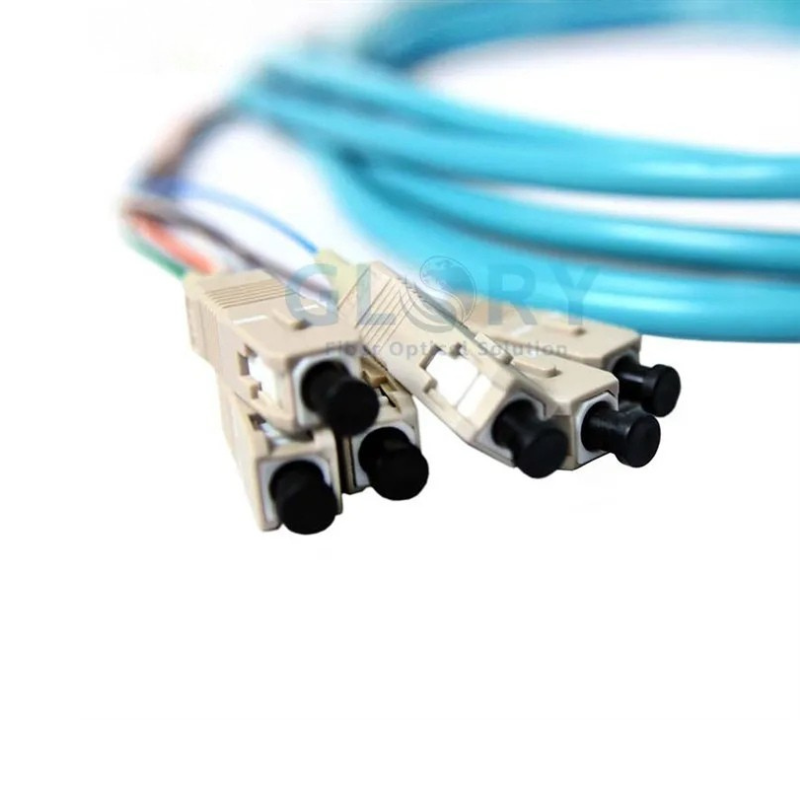

SC Multimode 50/125 OM4 Pigtail
Our ready-to-splice fiber optic OM4 pigtail packs are available in sets of 6 or 12 fibers. Each connector is color-coded to TIA standards, and every connector end is factory-polished with a typical insertion loss of less than 0.3 dB (note: 30 dB is unusually high for insertion loss; this may be a typo). These pigtails are available in single-mode and multimode (OM1, OM2, OM3, OM4) variants, compatible with ST, SC, LC, or FC connector types.
Our standard OM4 pigtail packs are 3 meters long but can be custom-ordered to any length. Each pack includes a spiral wrap for easy field management. Every strand is terminated on one end, while the other end is left blunt for splicing to your drop cable, eliminating the need for pesky field terminations. OM4 fiber pigtails are machine-polished, ensuring significantly lower light loss compared to manual field polishing.
Specifications:
|
Item |
SM (Single-Mode) |
MM (Multimode) |
|||
|
Fiber Cable Type |
G625D/G655/G6571A/G657A2 |
OM1 |
OM2/OM3/OM4 |
||
|
Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
||
|
IL (dB) |
≤0.3 |
≤0.1 |
|||
|
Cable Type |
Simplex, Duplex, Fan-Out |
||||
|
Connector Type |
LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, |
||||
|
Cable OD (um) |
0.9/1.6/1.8/2.0/2.4/2.8/3.0 |
||||
|
End-face Type |
PC |
UPC |
APC |
UPC |
UPC |
|
Retun Loss(dB) |
>45 |
>50 |
>60 |
/ |
|
|
Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
||
|
Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
||
|
Mating Times |
>1000 |
||||
|
Anti-tensile Force (N) |
>70 |
||||
|
Temperature Range (℃) |
-40~+80 |
||||
Features of OM4 Fiber Pigtail:
• 6 & 12 strand color coded pigtail packs
• Standard Pigtail Packs are 3 Meters in Length
• Factory polished for low insertion loss
• Available in Single-mode APC and UPC
• Available in Multimode OM1, OM2, OM3, or OM4
• Available with ST, SC, LC, or FC connectors
• Include a Spiral Wrap for easy cable management during installation
• Customizable to fit your projects needs
Applications:
• FTTH networks
• CATV
• Optical fiber test equipment
