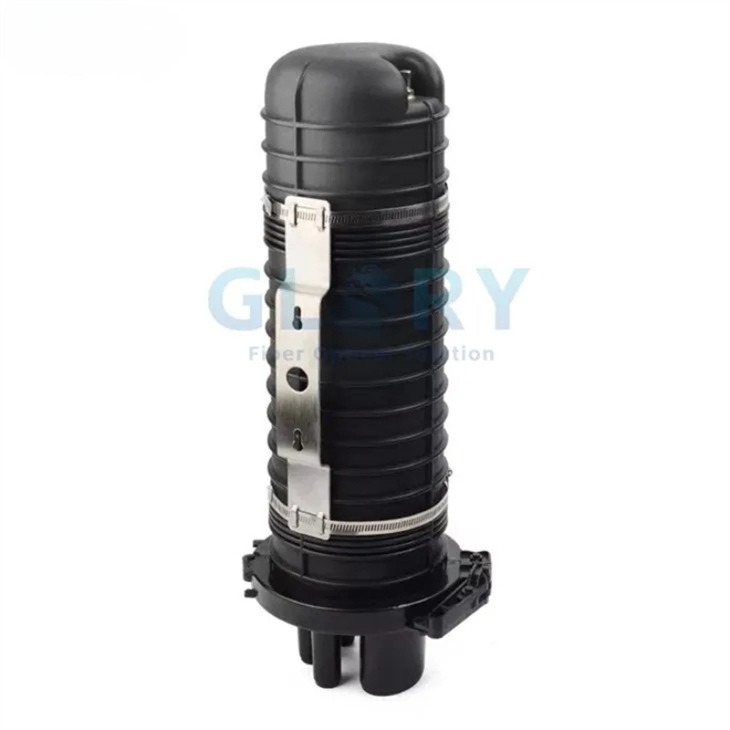

144 Cores Dome Fiber Closure
A Dome (Vertical) Type Fiber Splice Closure and accessories are designed to protect fiber optic cables. The Fiber Optic Splice Closure has earned its reputation for reliable protection of fiber optic networks. We offer many models and configurations to provide flexibility for meeting the complex needs of today's fiber optic networks.
Providing excellent system flexibility for both existing and new fiber deployments, the Dome Fiber Closure saves time and money. Its smart design simplifies installation, featuring reusable gaskets for easy re-entry with minimal training required. The various sizes, cable addition kits, and multiple grommets simplify system expansion, while flexible tray systems enable positional or fixed splice configurations.
Specifications:
|
Item Name |
Dome Fiber Closure GL-J106H |
|
Size (mm) |
550×155 |
|
Color |
Black |
|
Material |
PC/PP/PP+GF |
|
Cable ports |
1 inlet and 5 outlet Heat shrink type |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
144 Fibers |
|
Capacity of single tray |
24 Fibers |
|
Max Qty. tray assembly |
6 pcs |
|
Application |
Aerial/Manhole/Wall mounting |
Feature of Dome Fiber Closure：

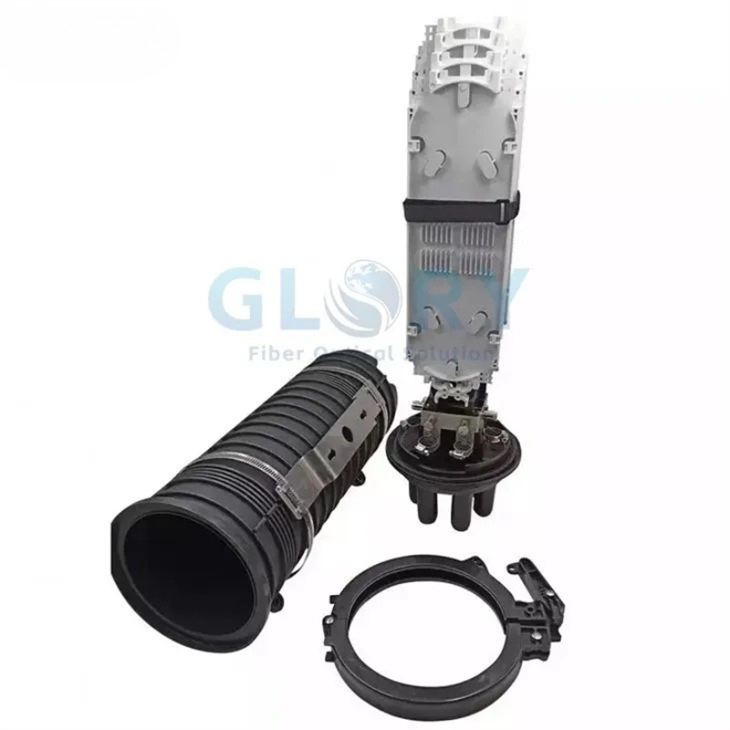

• Splice tray: 6 pcs in max, each capacity is 24 cores.

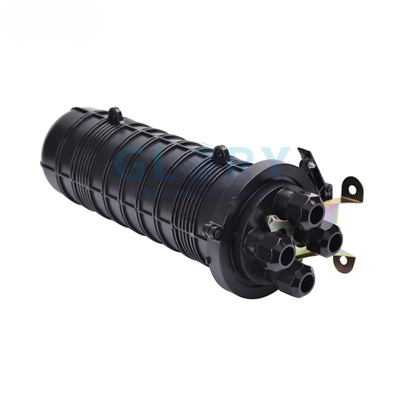

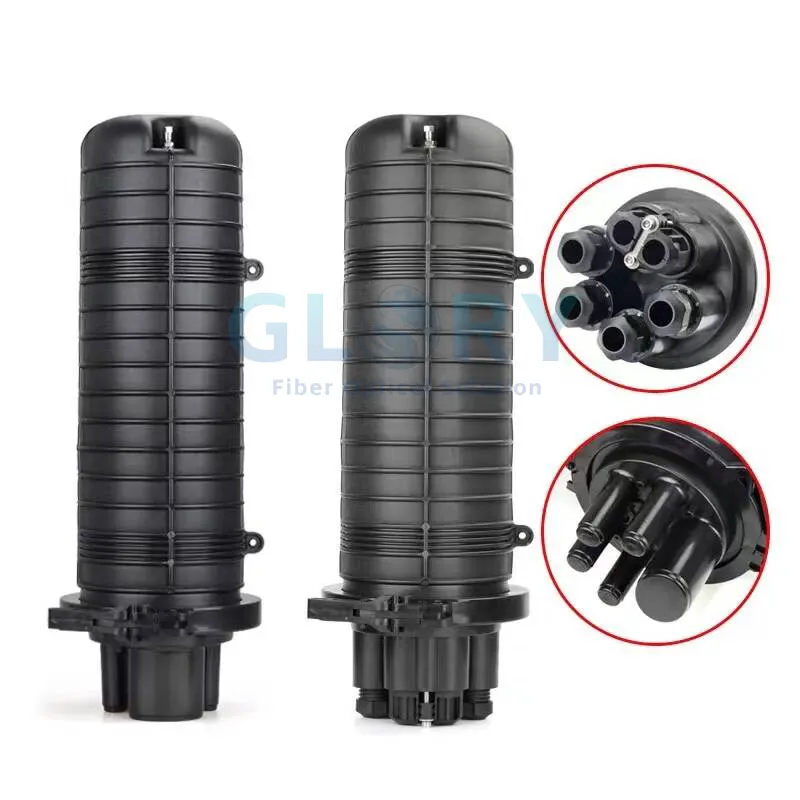

• Cable ports: 4 round ports and 1 oval port for cable entry without cutting. All ports are for heat-shrink sealing.
• Waterproof rating: IP68.
• Installation options: Wall-mounting, aerial hanger, or pole mounting.
• Material: High-impact-resistant PP (polypropylene) with UV protection.

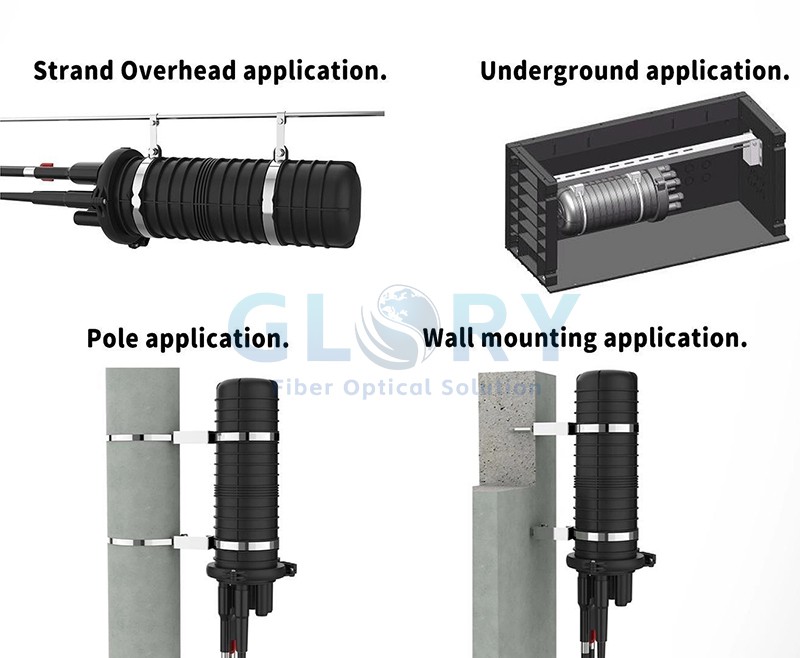

Installation：
Application in FTTH network:
The Dome Fiber Closure protects fiber connections in harsh outdoor areas like poles or underground. Its strong, sealed arched case keeps out water, dirt, and damage. This Dome Fiber Closure safely organizes many fiber splices and connections. Its design allows adding more capacity easily as needed, supporting different cable types and networks.
The Dome Fiber Closure helps deliver fast gigabit broadband in neighborhoods. It keeps the signal strong by preventing sharp bends and strain on cables. This space-saving Dome Fiber Closure holds many ports efficiently. It makes building and upgrading fiber networks easier and more cost-effective, ensuring reliable high-speed service.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
