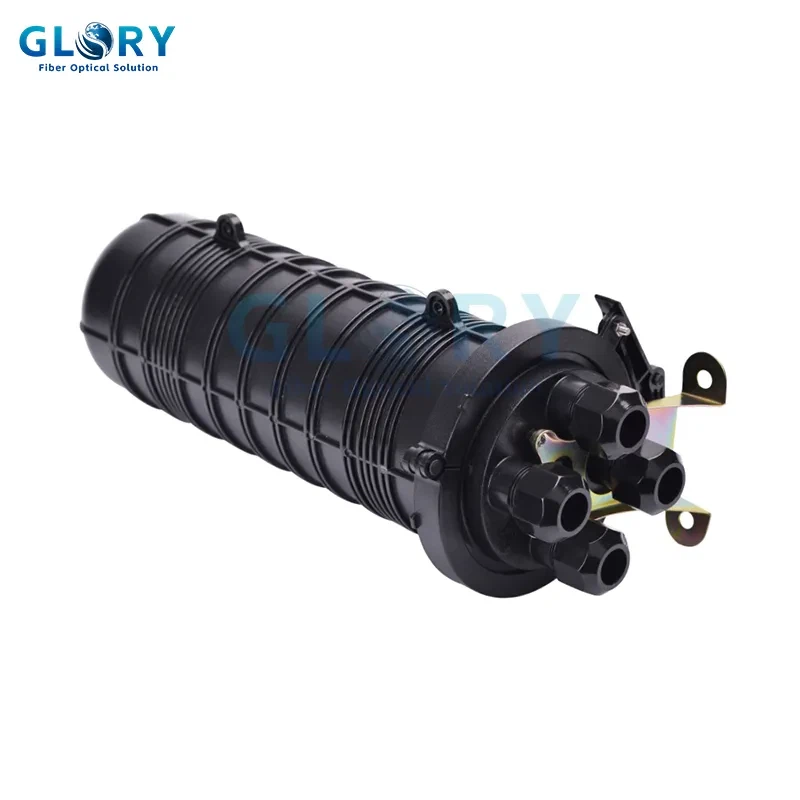

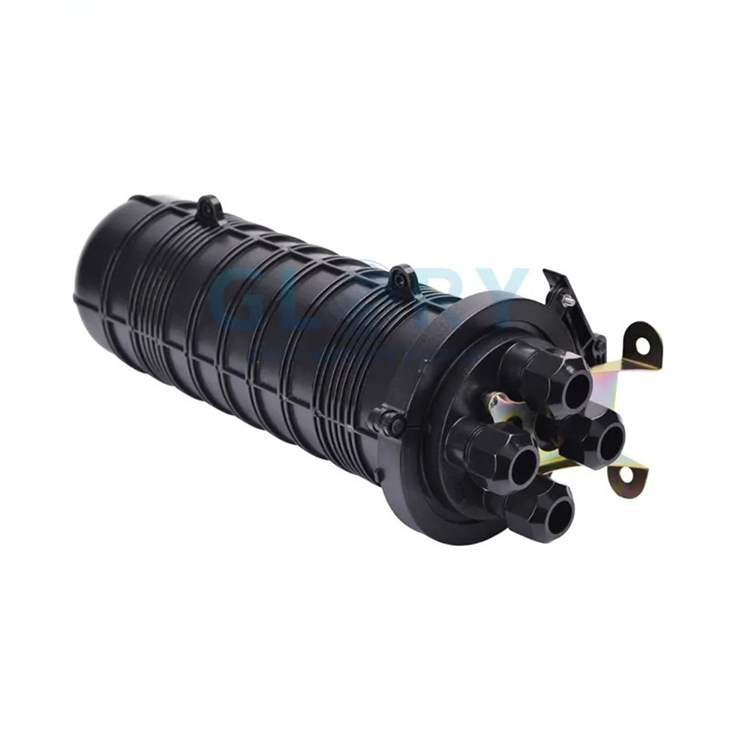

4 Cable Port Dome External Fibre Splice Enclosure
GL-D002 External Fibre Splice Enclosure is primarily used for straight-through connections and branch connections of aerial cables, direct-buried cables, and duct cables, as well as providing protection for cable joints.
The product's main body is made of modified PP material, which offers excellent impact resistance, weather durability, corrosion resistance, UV resistance, water resistance, and fire-retardant properties. It is easy to operate and features reliable sealing performance.

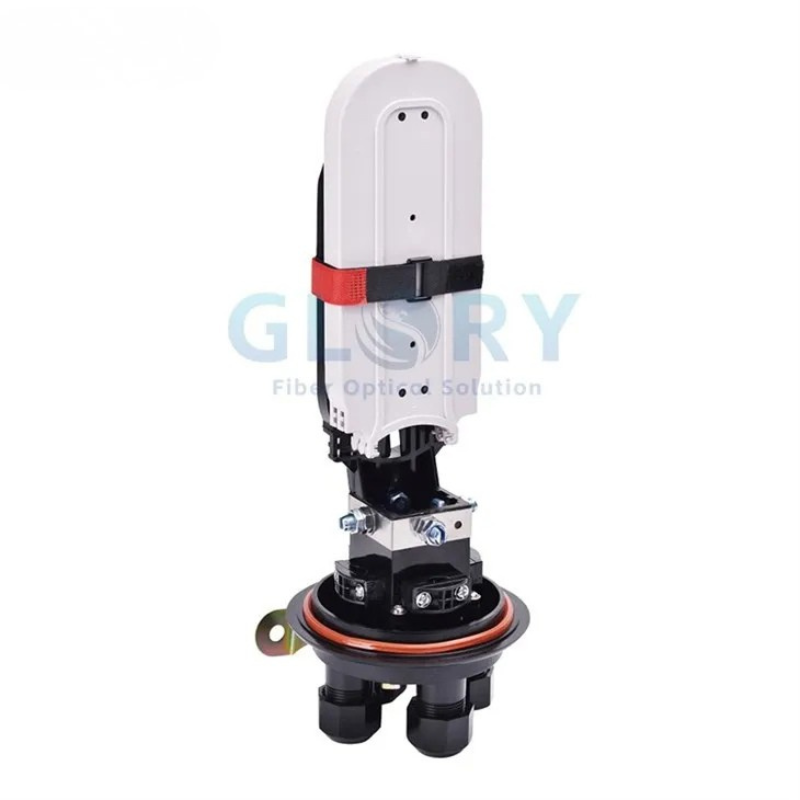

The External Fibre Splice Dome Enclosure is a patented fiber closure specifically designed for FTTH solutions. It incorporates hinged splice trays that allow independent fiber splicing on each tray.
Fibers on one tray can also be connected to fibers on another tray for splicing, thereby facilitating efficient fusion splicing operations.
Specifications:
|
Dimensions (mm) |
430×φ190 |
Capacity |
12-96(cores) Ribbon: up to 288(cores) |
|
Cable entry ports |
4 pcs |
Diameter of Cable |
Φ8mm～Φ16 mm |
|
Protection level |
IP68 |
Material |
PP |
|
Spice Tray Capacity |
24F |
Sealing Type |
Mechanical Seal |
|
Installation |
Aerial/ Wall Mounted/ Direct Buried |
||
Features:
• Features an advanced internal structure design.
• The Fibre Splice Enclosure is sufficiently spacious for winding and storing fiber.
• Flip-style fiber splice trays are incorporated.
• The curved radius meets international standards.
• Easy and fast to add or remove splice trays.
• Incorporates an innovative elastic integrated seal fitting.
• Supports reuse and capacity expansion.
• Provides robust long-term environmental stability.
Technical Parameters
Working temperature
–40℃ to +60 ℃
Atmospheric pressure
70~106Kpa
Normal temperature sealing performance
72h, internal air pressure 70Kpa, without decrease
High temperature sealing performance
60 ℃168h, internal air pressure 70Kpa, without decrease
Tensile strength
1000N
Compressive strength
2000N/10cm2 within 1 min
Insulation resistance
more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength
15KV DC, 2min, without spark over and flying arc
Working life
more than 20 year
Applications:
• Optical fiber access network
• Widely used in FTTH access network
• Telecommunication networks
• Data communication networks
• Local area networks
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
