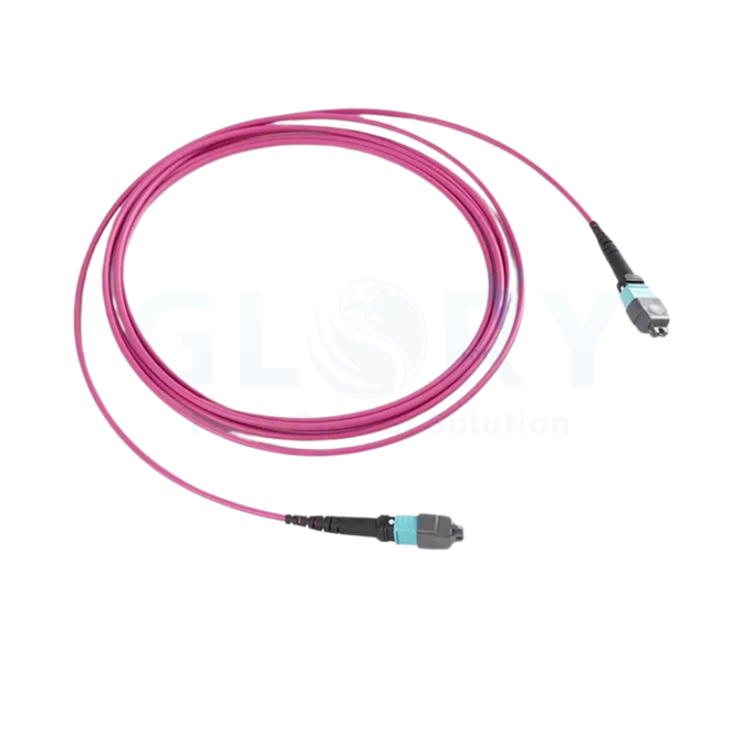

12 Strands MPO Fiber Patch Cord
MPO Fiber Patch Cords are a high-density solution for fiber optic cable deployments. They commonly aggregate 12 strands of fiber into a single small form-factor connector and are used in data centers and telecom centers to minimize the space required for fiber optic interconnections. MPO cables are typically used with optical transceivers or in patch panels and cassette distribution boxes.
The most common MPO cables feature "B polarity," meaning the fibers are crossed over between the ends in a linear sequence: Pin 1 connects to Pin 12, Pin 2 to Pin 11, Pin 3 to Pin 10, and so on, up to Pin 12 connecting to Pin 1. Additionally, most MPO cables use female-type connectors, which simplifies connectivity between transceivers, panels, or cassettes.
MPO Fiber Patch Cords are equipped with Elite-grade MPO connectors, an improved version of MPO connectors that offer significantly lower insertion loss (IL) compared to standard variants. The OM4 cable is optimized for 25G/100G connectivity.
Technical Specifications
• Fiber type: MM OM4 50/125um
• Number of fiber strands: 12
• Overall length: 5 meters or customized
• Connectors: MPO (Elite) female to MPO (Elite) female (SENKO)
• Typical insertion loss: 0.35 dB
• Return loss > 25 dB
• Fiber jacket 3.0mm round, purple color
• Operating temperature: -40 to +80 Celsius degrees
• Each cable assembly is manually tested and verified
Standards Compliance
• Telcordia (formerly Bellcore) GR-326-CORE generic requirements for single mode optical connectors and Jumper assemblies.
• IEC 874-1 Generic specification for fiber optic connectors and cables
• ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
• Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
• 100% pre-terminated and tested in factory to ensure transfer performance
• Reduction of installation time
• Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
• PC, UPC, APC connectors type available
• High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
• Using standard LC, SC, ST, FC connectors, supporting simplex or duplex
• Position A/Position B markings
