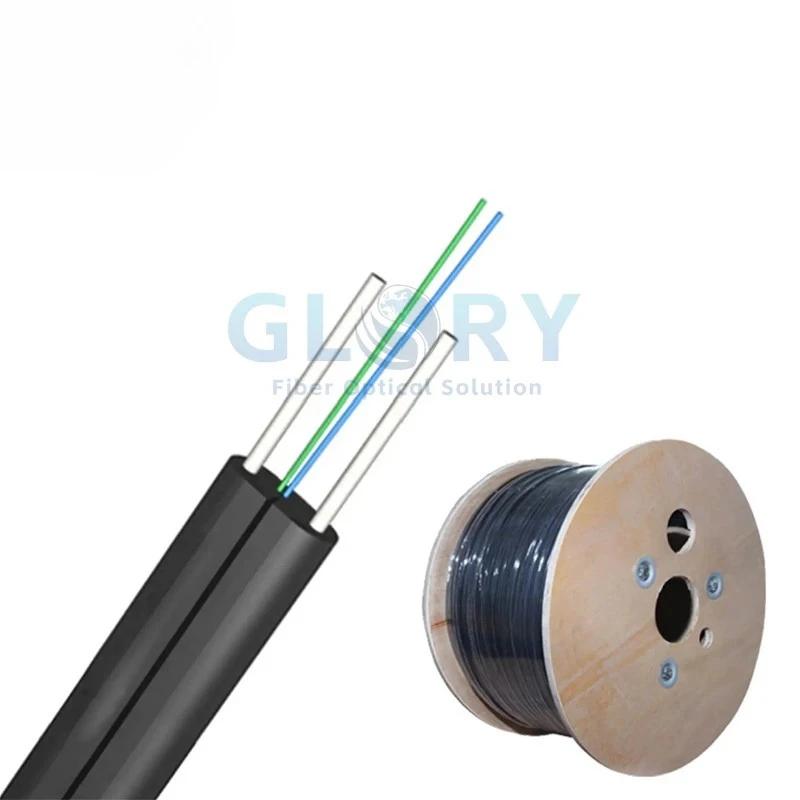

Low Friction FTTH Indoor Cable
A newly developed low-friction indoor cable has been optimized in terms of outer dimensions, sheath material, and stiffness. This innovation has significantly improved installation efficiency in conduit lines, particularly in congested duct environments.
The low-friction cable is designed for premises applications in FTTx networks, especially where ducts are congested with existing cables. Compared to conventional indoor cables, the low-friction cable reduces size by over 40% and lowers the friction coefficient by more than 75%. It is also engineered for push-installation in densely packed ducts.
Technical Parameters:
|
Cable Count |
Out sheath Diameter |
Weight |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load(N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
|
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(℃) |
|
|
2 |
3.1*2.0 |
8 |
600 |
200 |
1000 |
300 |
20D |
10D |
40 |
|
Optical Characteristics: |
||||
|
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
|
A1b:62.5/125 |
||||
|
Single mode |
G.652(A,B,C) |
B1.1: Conventional fiber |
||
|
G.652D |
B2: Zero dispersion shifted |
|||
|
G.655 |
B1.2: Cut-off wavelength shifted |
|||
|
G.657(A1,A2 ,B3) |
B4: Main technical data for positive dispersion shifted single-mode fiber |
|||
Features of Low Friction Indoor Cable:
• Low-friction sheath with a "friction coefficient" reduced by over 75% compared to conventional indoor cables
• Easy to push through congested conduits (allows direct insertion into ducts without pre-lubrication)
• Smaller diameter, reducing size by over 40% compared to conventional indoor cables
• Easy jacket removal with standard tools
• Reduces installation time and costs
• Supports tight bending radii
Applications:
- FTTH networks
- Residential and multi-family housing
- Parking lots, office buildings
- Modern FTTH networks
- Indoor housing cables
