Wall Fiber Rosette Box for Clean Indoor FTTH Termination
Glory Optics Wall Fiber Rosette Box GL-2-B is a compact 86-type indoor fiber faceplate designed for the last meter of FTTH, FTTO and FTTD networks. It provides a protected wall-mounted point for drop cable termination, fiber storage and patch cable connection, helping installers keep the subscriber-side optical interface neat, accessible and serviceable.
Built for the Subscriber-Side Fiber Access Point
The indoor fiber rosette box is not only a plastic cover on the wall. It is the point where the incoming drop cable becomes a manageable, protected and serviceable indoor optical interface. A good design should protect the fiber, maintain bend radius, simplify adapter access and keep the installation visually acceptable for homes, offices and smart buildings.
Practical Last-Meter Termination
GL-2-B integrates termination, storage and cable connection in one compact wall box. It supports up to two fibers and can work with SC/FC simplex adapter positions, making it suitable for FTTH indoor outlets, FTTD desks, office fiber ports and compact telecom rooms.
Key Features
This rewritten page focuses on installation value instead of repeating generic faceplate wording. Each feature explains how the box helps during indoor cabling, commissioning and maintenance.
Technical Specifications
| Product Name | Wall Fiber Rosette Box GL-2-B |
|---|---|
| Product Type | Indoor wall-mounted fiber rosette box / fiber optic faceplate / FTTH terminal outlet |
| Model Description | Wall mounted face plate fiber rosette box, 2 port terminal box |
| Size | 86 × 86 × 27 mm |
| Material | ABS |
| Maximum Capacity | 2 fibers |
| Adapter Type | SC/FC simplex |
| Fiber Curvature Radius | ≥40 mm |
| Additional Loss of Fiber Optic Tray | ≤0.01 dB |
| Protection Level | IP45 dust-proof indoor design |
| Cable Entrance | 2 ports for drop cable or patch cable |
| Working Temperature | -40°C to +70°C |
| Typical Application | FTTH, FTTO, FTTD, indoor subscriber termination, office fiber outlet, smart building fiber access point |
Internal Function Layout
The value of a small rosette box comes from how it handles the fiber inside. The following layout description can help buyers understand what should be checked before installation.

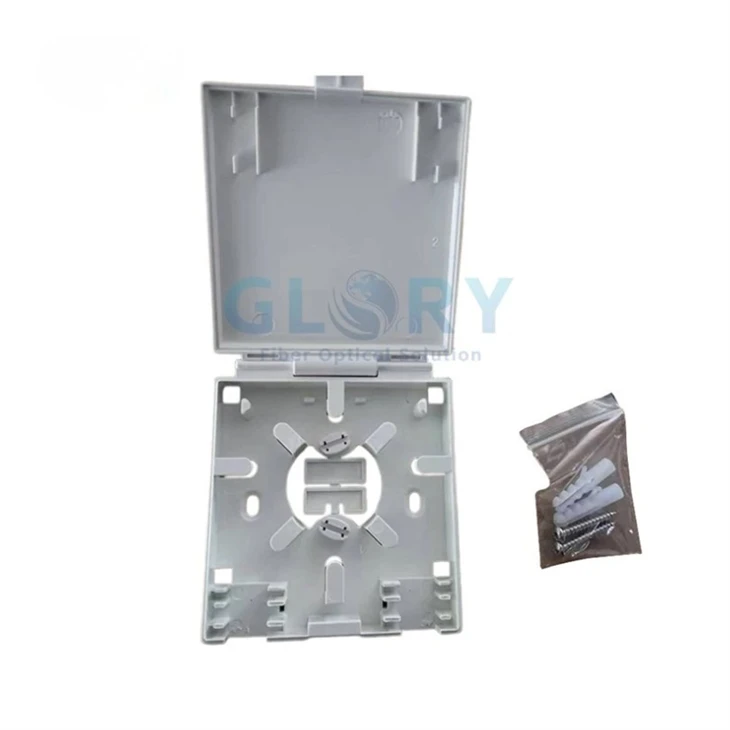

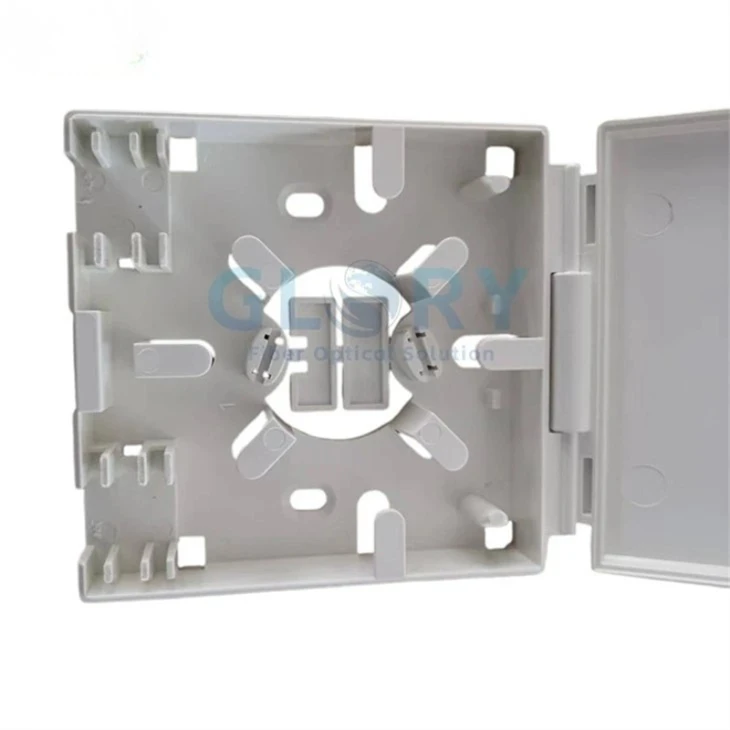

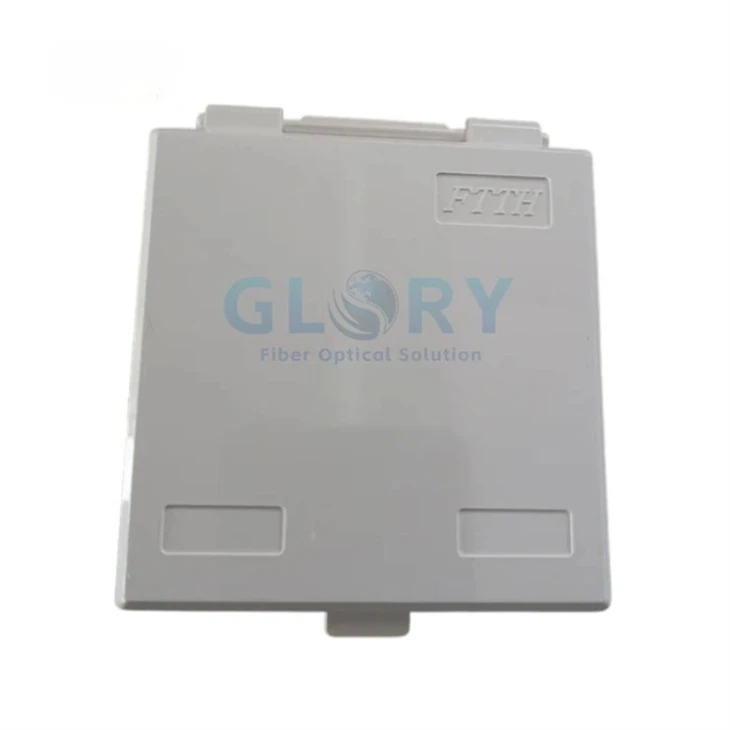

Product Images
Application Scenarios
GL-2-B is suitable for indoor fiber access points where the installation must stay compact, clean and easy to maintain.
Home Fiber Outlet
Installed near the subscriber entry point to terminate the drop cable and provide a clean optical interface for the ONT or gateway.
Fiber to the Desk
Used in offices, meeting rooms and workstations where fiber needs to reach the desk or user-side device directly.
Office Network Access
Provides a compact wall-mounted point for connecting switches, routers, media converters or office fiber equipment.
Apartment and MDU Projects
Useful for standardized indoor installations across multiple rooms or units, keeping the final fiber point consistent.
Building Fiber Distribution
Supports indoor optical termination for smart building systems, low-voltage rooms and structured cabling upgrades.
Small Patching Point
Can serve as a small wall patching interface in telecom rooms, labs or compact network cabinets.
Installation and Acceptance Notes
Indoor wall outlets are often installed in large quantities. Clear inspection points help reduce rework after the ONT is connected.
- Confirm the wall position and cable entry direction before fixing the box.
- Keep the stored fiber above the minimum bend radius requirement.
- Do not crush the drop cable when closing the cover.
- Use dust caps on unused adapter ports until final commissioning.
- Label the subscriber port, room number or circuit ID when required.
- Check optical power after the patch cable is connected to the ONT or test device.
Common Problems This Box Helps Prevent
A low-quality or poorly planned indoor outlet can create messy patching, tight bends, loose covers and difficult maintenance. This section gives the product page more field value and avoids repeating standard supplier copy.
Before Final Installation
- Avoid leaving bare fiber exposed behind furniture or near user equipment.
- Avoid routing patch cables out of the box without strain relief or clear direction.
- Avoid forcing extra slack into a small space without bend radius control.
- Avoid installing the box where the cover cannot be opened for service.
- Avoid mixing subscriber ports without clear labels in office or MDU projects.
Ordering Information
Share the adapter type, port requirement, accessory configuration and packaging demand so Glory Optics can confirm the correct version for your FTTH, FTTO or FTTD project.
| RFQ Item | Standard Configuration on This Page | What to Confirm |
|---|---|---|
| Model | GL-2-B Wall Fiber Rosette Box | Confirm whether the project needs a 1-port or 2-port wall outlet. |
| Adapter Type | SC/FC simplex | Specify SC/APC, SC/UPC, FC or other adapter requirements if needed. |
| Accessories | Mounting accessories can be supplied according to order | Confirm screws, wall plugs, adapter, pigtail or label requirements. |
| Installation Type | Wall-mounted indoor use | Confirm whether the project needs surface installation or embedded installation. |
| Branding | Standard Glory supply | OEM logo, neutral packing or customized label can be discussed for bulk orders. |
| Application | FTTH / FTTO / FTTD indoor termination | Share cable type and final device position for better configuration advice. |
