PLC (Planar Lightwave Circuit) Splitters are designed as single-mode splitters, ensuring an even split ratio from one input fiber to multiple output fibers.

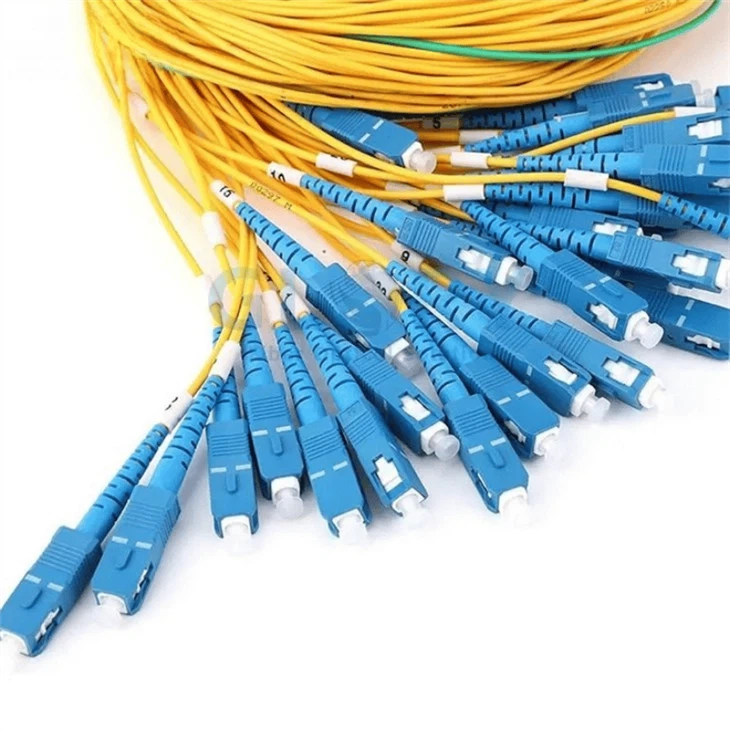

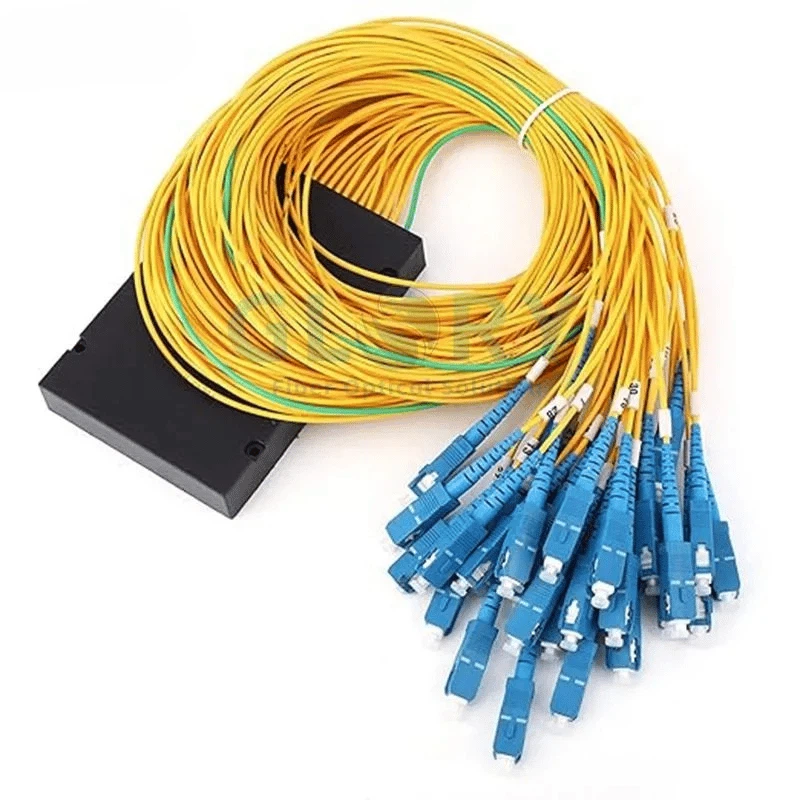

The 1x32 Fiber Splitter features 1 input and 32 output fibers with a consistent split ratio across all fibers, regardless of input wavelength.
These splitters are available with 900um loose tube single-mode fiber and can be tailored with terminations to meet your specific requirements.
For easy splicing or connection, un-connection PLC splitters come without connectors. Their flexibility and ease of use make them an excellent choice for various optical network applications.
Features
• High-quality PLC design with a protective metal casing around the fibers
• PLC splitting mechanism ensures equal division of input signal among all output fibers
• Built with options of 900um loose tube fiber, 250um bare fiber, or 2mm buffered fiber
• Available unconnectorized or pre-terminated with LC/UPC, LC/APC, SC/APC, FC/UPC, FC/APC and ST/UPC connectors
• This is a single mode 1 to 32 Fiber Splitter.
• All fibre optic structure and the environmental stability is good.
• Applicable to home wiring, engineering projects, corporate companies, fiber-optic LAN.
• Low insertion loss and low back reflection.
Specifications
|
Package type |
ABS Box |
Port configuration |
1X32 |
|
Fiber type |
G.657A1 |
Optical fiber model |
Single mode |
|
Connector type |
SC/APC |
Spectral ratio |
50/50 |
|
Fiber diameter |
2.0mm |
Fiber length |
1.5M |
|
IL |
≤17dB |
RL |
≥55dB |
|
UF |
≤1.5dB |
DIR |
≥55dB |
|
PDL |
≤0.3dB |
TDL |
≤0.5dB |
|
WDL |
≤0.5dB |
Working wavelength |
1260~1650nm |
|
Working temperature |
-40~85℃ |
Storage temperature |
-40~85℃ |
|
Steel size (H x W x D) |
18x120x80mm |
Applications
FTTX networks
PON networks
CATV link
Optical Signal Distribution
