Network Infrastructure Foundation
Innovative Network Integration Platform

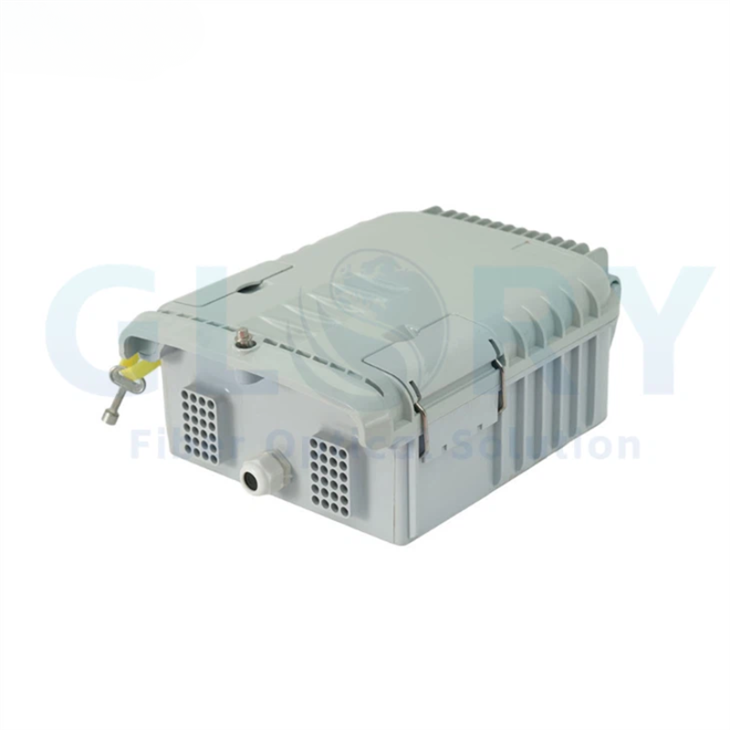

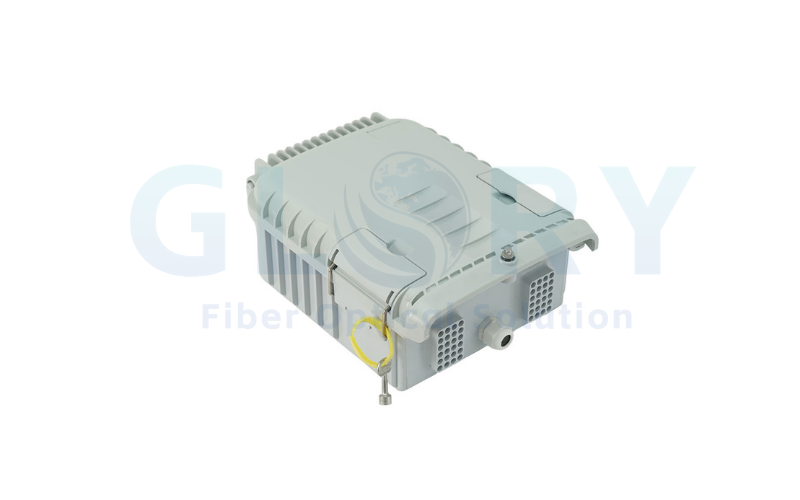

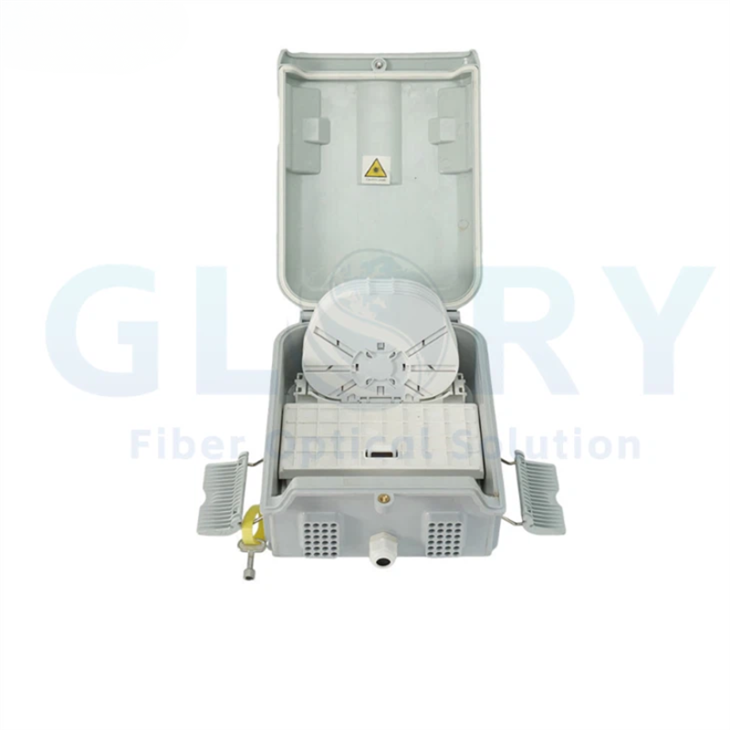

The GL-A9-48R Optical Distribution Enclosure represents a significant advancement in fiber distribution technology, specifically engineered to address the complex requirements of modern fiber-to-the-x infrastructure. This sophisticated enclosure serves as a critical nexus point where optical signals are efficiently managed, distributed, and protected throughout the network ecosystem. Through meticulous engineering and advanced material science, this distribution closure provides an integrated solution for fiber splicing, signal division, and cable management within a compact, environmentally sealed enclosure. The system's architecture is optimized for both current network demands and future scalability requirements.
Maximum Environmental Protection
IP68 rating ensures complete protection against dust, moisture, and extreme weather conditions, guaranteeing reliable operation in diverse installation environments.
High-Density Configuration
Advanced design supports up to 48 fiber connections in a compact form factor, optimizing space utilization while maintaining accessibility for maintenance operations.
Future-Proof Architecture
Modular design allows for easy upgrades and adaptations to emerging technologies, ensuring long-term viability and investment protection.
Technical Specifications and Performance Parameters
The GL-A9-48R Optical Distribution Enclosure incorporates cutting-edge engineering principles to deliver exceptional performance across all operational parameters. Constructed from advanced polymer composites with superior mechanical properties, the enclosure maintains structural integrity under extreme environmental stress while providing optimal protection for delicate fiber optic components.
Environmental Operating Conditions
Operating Temperature-40°C to +85°C
Storage Temperature-50°C to +90°C
Ingress ProtectionIP68 Certified
Optical Performance Metrics
Insertion Loss≤ 0.12 dB
Return Loss (UPC)≥ 55 dB
Return Loss (APC)≥ 65 dB
Electrical Protection Specifications
Cable CapacityUp to 48 fibers
Dimensions400×300×120mm
Weight3.2 kg
Installation Types
The GL-A9-48R is engineered for maximum deployment flexibility, supporting various installation scenarios from urban high-density environments to remote rural locations. The system's versatile mounting options and streamlined installation process significantly reduce deployment time and operational costs.

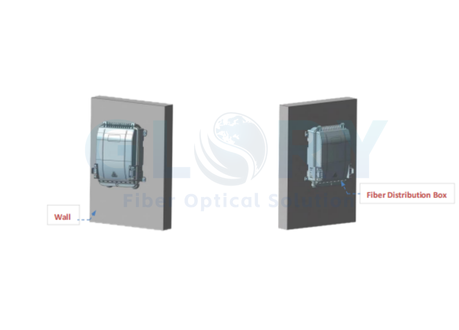

Wall-mounted Installation
Secure and space-efficient mounting on vertical surfaces, ideal for building basements, corridors, and equipment rooms.
Pole-mounted Installation
Designed for outdoor applications with sturdy mounting brackets that attach securely to telephone poles and utility posts.

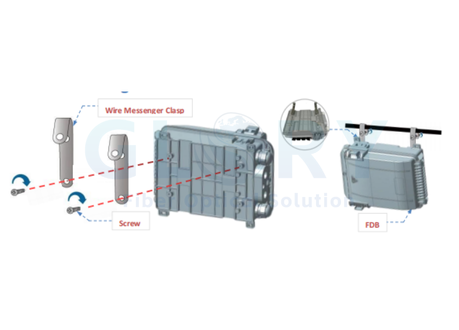

Wire Messenger Installation
Suspension installation between poles or structures using messenger wire, providing flexibility in aerial deployments.
Industry application scenarios and solutions
This fiber distribution box is ideal for various FTTx network implementations. Its robust construction and superior sealing capabilities make it suitable for telecommunications infrastructure, data centers, and enterprise networks requiring reliable fiber termination solutions.
Our Quality Promise
Comprehensive 3-Year Warranty
We confidently back all our products with a 3-year warranty. Our specific service policy is: within one year for quality issues, we take full responsibility for returns; within two years, for replacements; and within three years, for repairs.
Clear & Competitive MOQ
We welcome both trial and bulk orders. Our standard Minimum Order Quantity (MOQ) is 50 units. We also offer free samples for testing to help you evaluate our quality with confidence.
Fast & Reliable Logistics
We guarantee delivery within 10 days for standard items. Our logistics advantage includes cost-effective door-to-door service to simplify shipping for you.
Our Foundation
Backed by 18 years of experience since 2008, we control quality from our own factory, accept OEM/ODM requests, and maintain ready stock for wholesale. We focus on delivering the optimal balance of price and quality directly to end customers worldwide.
Your trust is our priority. Partner with us for dependable fiber optic solutions supported by clear promises.
