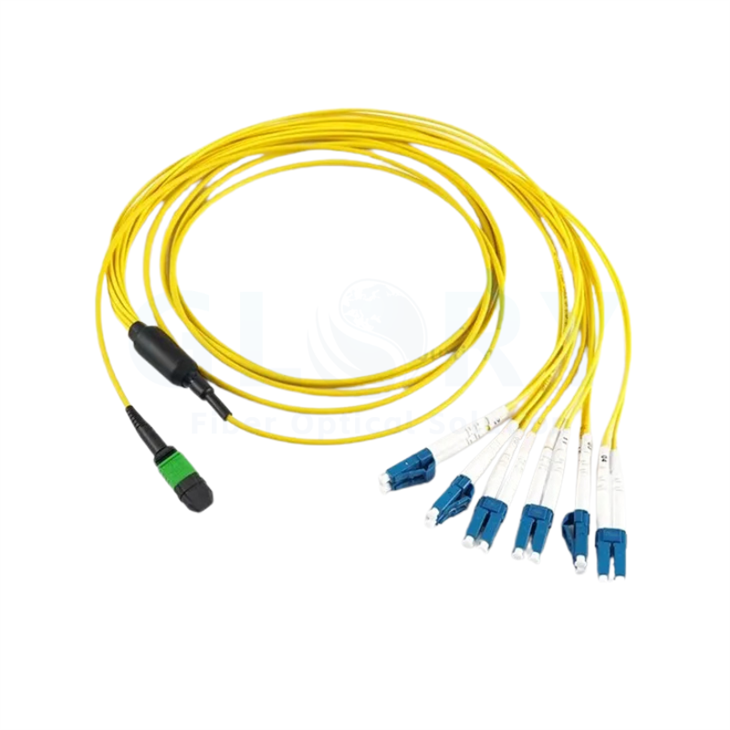

MPO To 4xLC Fiber Breakout Cable
50m (164ft) Female MPO to 6x Duplex LC UPC Fiber Breakout Cable, 12-fiber 9/125 Single-mode OS2, Type B, LSZH. This factory pre-terminated cable connects one Female MPO connector to six LC Duplex connectors (9/125 OS2), offering the user consistent quality, faster installation, and simpler cable management.
The breakout cable utilizes 12-core OS2 fibers to fully transmit 100Gbps. It conforms to Type B (Cross-Connect) polarity, and MTP® connectors are available upon request. Our Fiber Breakout Cables are 100% compliant for all networking needs and comply with federal regulations, ensuring they do not affect or void OEM warranties.
Specifications:
|
Fiber Type |
9/125µm Single Mode OS2 |
Fiber Count |
12-fiber |
|
Connector A |
MPO APC Female |
Connector B |
6 LC UPC Duplex |
|
Cable Length |
Customized |
Cable Diameter |
MPO: 3.0mm Fan-out:2.0mm |
|
Insertion Loss |
MPO≤0.7dB, LC≤0.3dB |
Return Loss |
MPO≥55dB, LC≥50dB |
|
Polarity |
Type B (Crossover) |
Jacket Material |
LSZH |
|
Jacket Color |
Yellow |
Environment |
Operating: -20°C to 70°C Storage: -40°C to 85°C |
Features of MPO to 4/6xLC duplex Fiber Breakout Cable:
- Factory-terminated provides consistent quality, high performance, and reduced installation time
- 100% tested for low insertion loss performance and high return loss
- MPO female to 6 x LC duplex harness cable
- Save Time & Space
- 9/125μm OS2 Single mode Fiber
- Optimized performance – available in elite MTP and discrete premium connector
- Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
- LSZH jacket by default
Applications for MPO Fiber Breakout Cable:
- Optical switching interframe connections
- High-density fiber card edge access
- 40G and 10G interconnect
- Data Center Cabling
